OSRAM BT Control | Applications and settings
39

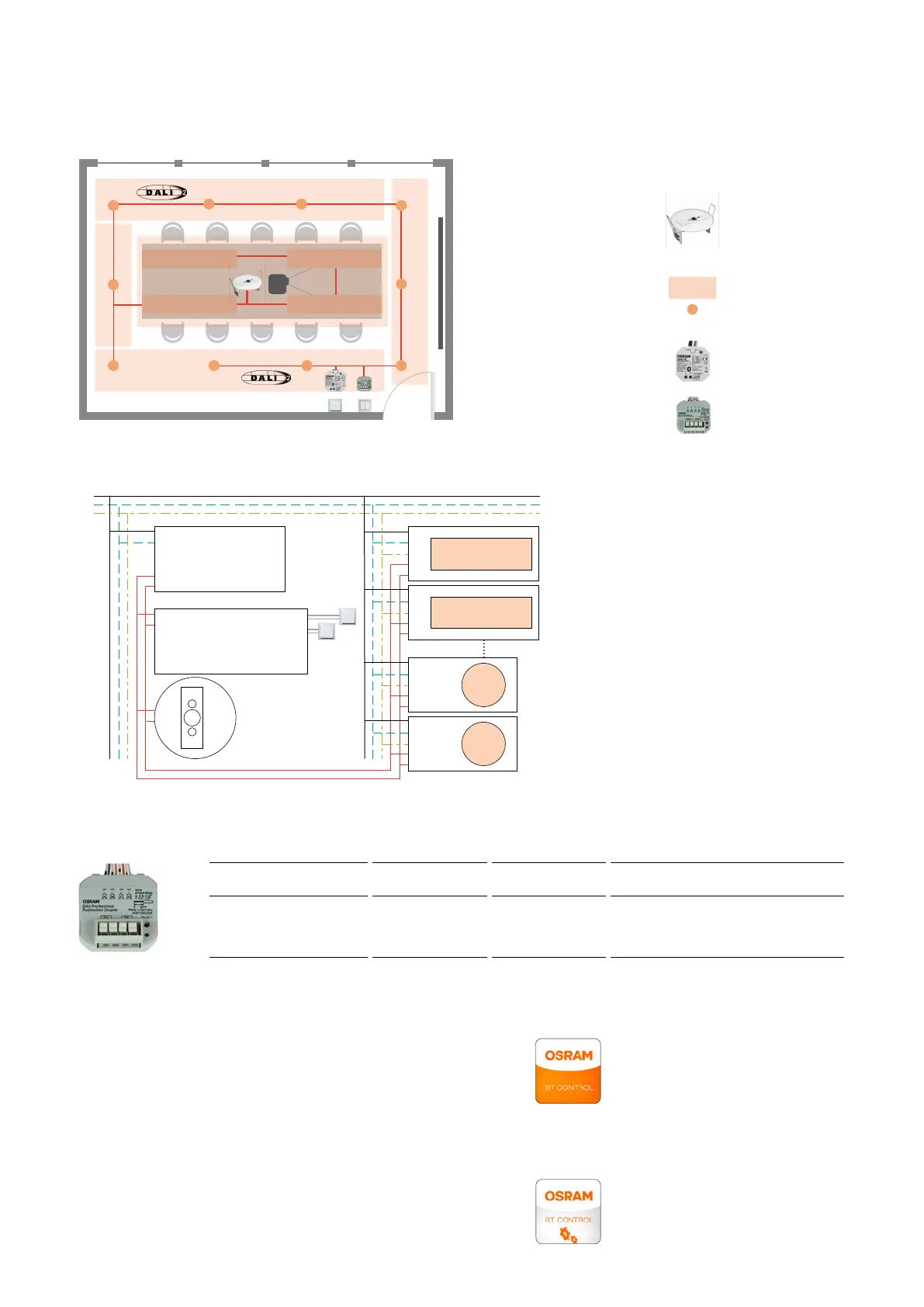

Solution with DALI ACU BT
1 x DALI LS/PD CI
Light and presence detector
for ceiling integration
Standard DALI luminaires
4 x
10 x
1 x DALI ACU BT
DALI controller
(best mounted in a flush box)
1 x DALI PRO PB coupler
5.2.2.2 Application setup and wiring diagram
Name Function of
input A
Function of
input B
Function of
input C
Function of
input D
1: 1-channel Tunable White
(default)
SP: Switch on/off
LP: Dim up/down
Groups: All (1–4)
SP: Toggle scene
LP: Change color
temp.
Groups: All (1–4)
SP: Recall scene 1
LP: ---
Groups: All (1–4)
SP: Recall scene 2
LP: ---
Groups: All (1–4)
5.2.2.3 Out-of-the-box features (no app for configuration needed!)
Pushbutton coupler
Control via smartphone with the OSRAM BT Control App
— The user can switch and dim the light via smartphone.
— The user can set a password to limit access.
4.2.2.4 Additional configuration options via the OSRAM BT Config App
The controller can be configured via smartphone with the OSRAM BT Config App.
The BT Config App configuration is not mandatory, but enables more
flexibility to adapt the behavior to the requirements of the customer.
*
SP = Short press
**
LP = Long press
Group 3
Group 3
Group 3
Group 2
Group 1
L
N
Pe
DA
DA
DALI
LS/PD
CI
DALI ACU BT
L
N
PB
PB
DA+
DA-
DALI PRO PB coupler
DA
DA
A
B
C
D
DALI luminaire
L
N
Pe
DA
DA
DALI luminaire
L
N
Pe
DA
DA
L
N
Pe
DA
DA
DALI
lum.
L
N
Pe
DA
DA
DALI
lum.
