5.1.2 Floor-standing luminaire with 2 x DALI drivers separating the direct and indirect light
5.1.2.1 Requirements
Direct light
Indirect light
The floor-standing luminaire can be switched and dimmed
with two pushbuttons.
The integrated presence sensor automatically detects pres-
ence and turns the light on (and off again after a 15-minute
delay time).
Daylight harvesting should be active for the direct light and
a constant light level should be active for the indirect light.
To keep the level at the sensor constant, the integrated
light sensor dims the light up and down according to the
amount of daylight for the direct light output only.
The two light outputs can be switched and dimmed sepa-
rately via a smart device.

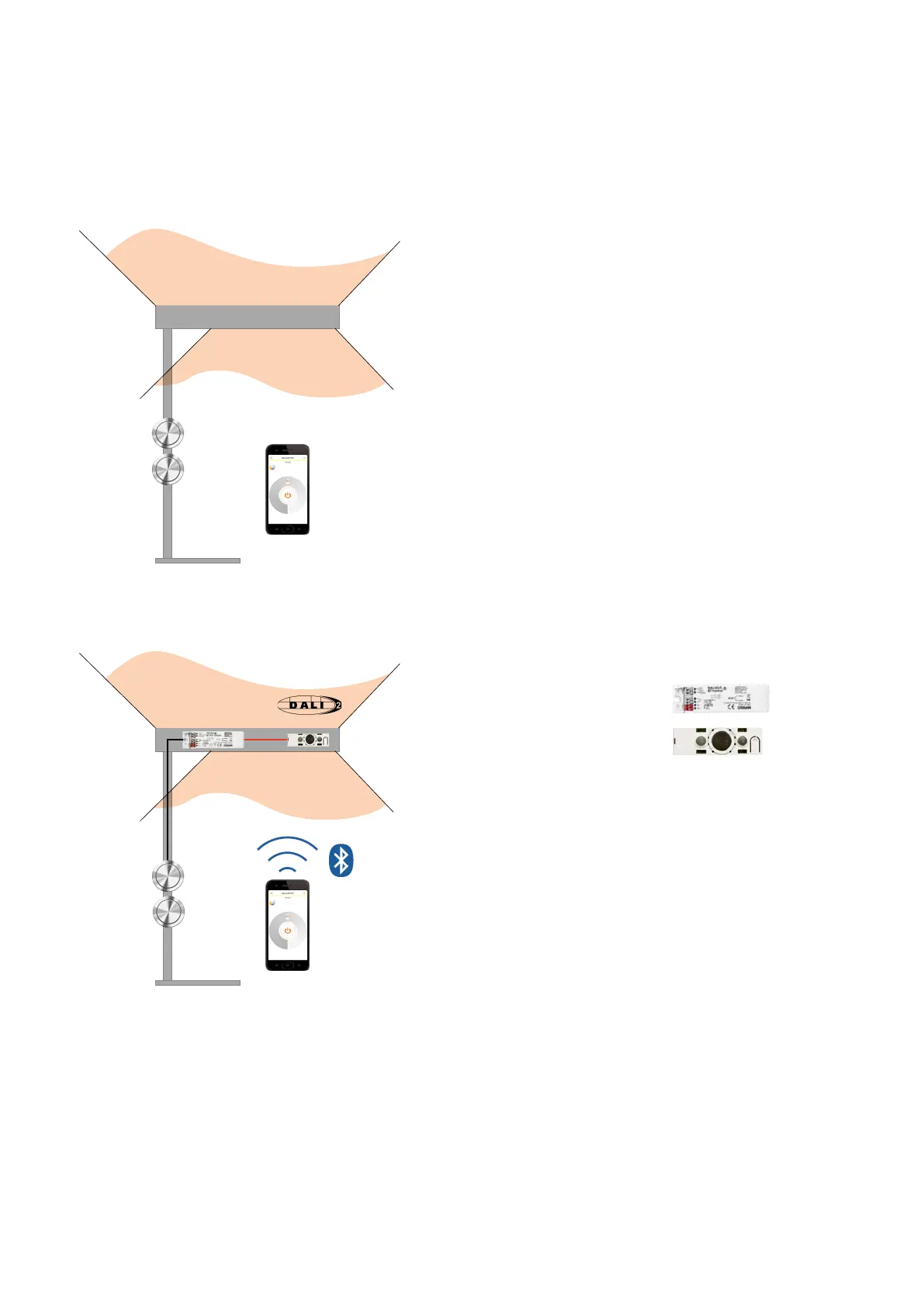

5.1.2.2 Product setup and wiring diagram
DALI ECO BT RTC with resistor
Direct light
Indirect light
Solution with DALI ECO BT RTC
1 x DALI ECO BT RTC
Application controller
1 x DALI sensor LS/PD LI G2
Light and presence sensor
