OSRAM BT Control | Applications and settings
34
5.2 Single-room applications with integrated BT Control
Single office, open-plan office, corridor or classroom applications with automatic sensor control and/or manual pushbutton
control for pendant, mounted or floor-standing luminaires with one (direct) or two (direct/indirect) light outputs.

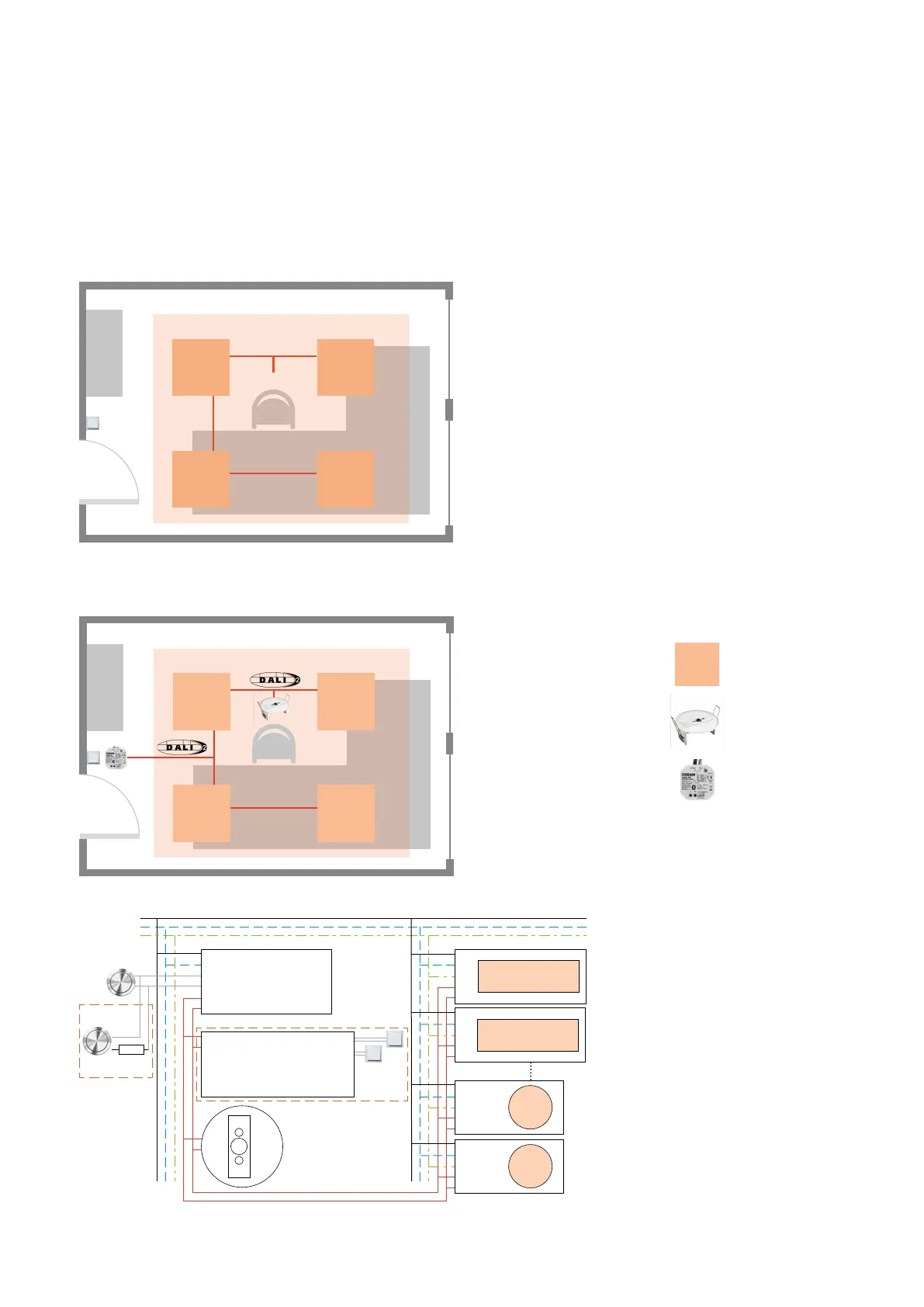

5.2.1 Single office (with out-of-the-box light functions)
5.2.1.1 Requirements
The office luminaires can be switched and dimmed with
one pushbutton.
The integrated presence sensor automatically detects pres-
ence and turns the light on (and off again after a 15-minute
delay time).
During presence, the daylight harvesting function will dim
the artificial light up and down according to the amount of
daylight available.
Solution with DALI ACU BT
4 x standard DALI-2 luminaire
1 x DALI sensor LS/PD CI G2
Light and presence detector for
ceiling integration
1 x DALI ACU BT
DALI-2 controller
(in flush-mounted box)
5.2.1.2 Application setup and wiring diagram
Group 1
L
N
Pe
DA
DA
DALI
LS/PD
CI
DALI ACU BT
L
N
PB
PB
DA+
DA-
DALI PRO
PB coupler
DA
DA
A
B
C
D
DALI luminaire
L
N
Pe
DA
DA
DALI luminaire
L
N
Pe
DA
DA
L
N
Pe
DA
DA
DALI
lum.
L
N
Pe
DA
DA
DALI
lum.
820 Ω,
5 %,
0.25 W
Optional
Optional
