OSRAM BT Control | Applications and settings
31

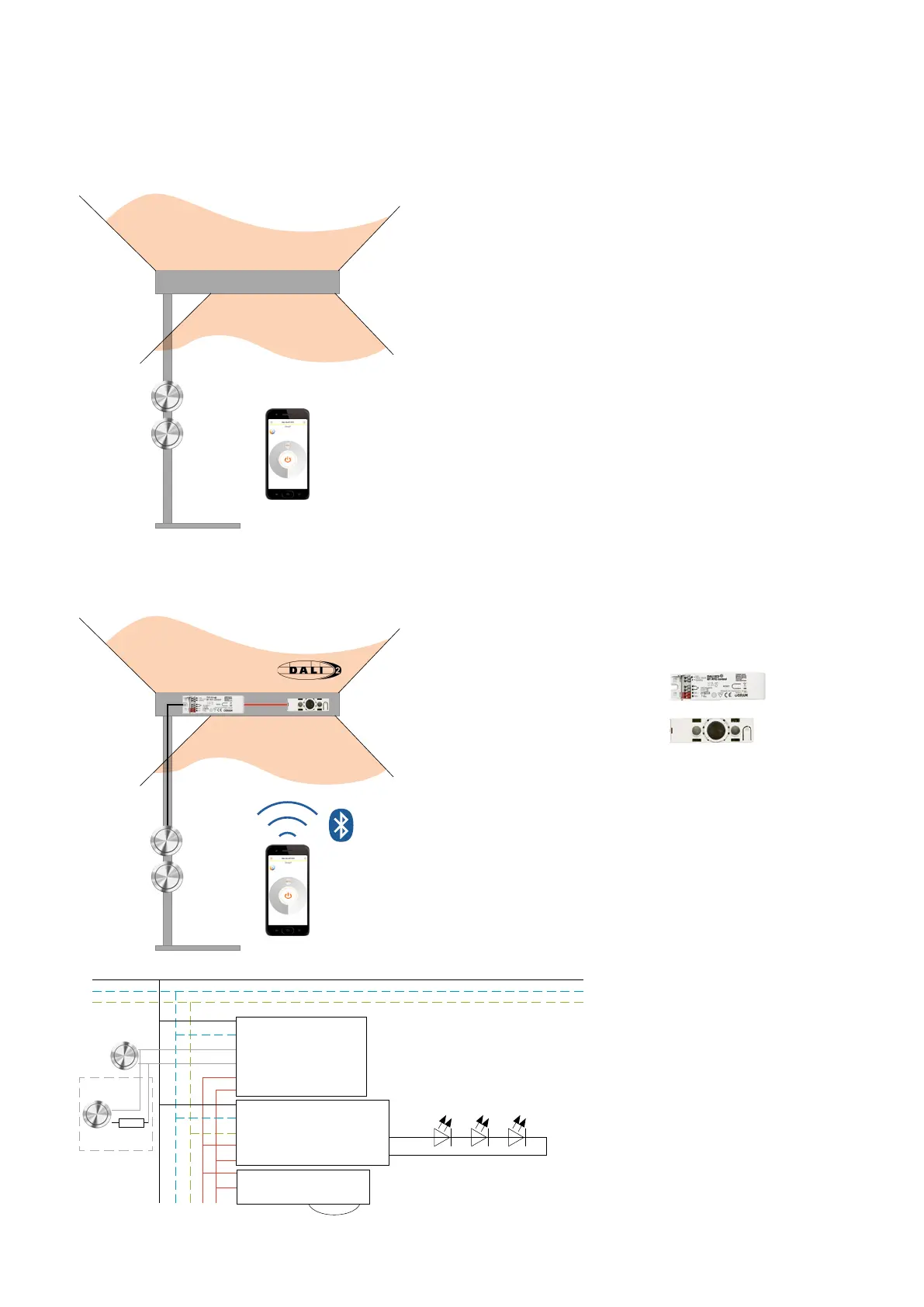

5.1.3 Floor-standing luminaire with 1 x DALI LED driver and active HCL function
5.1.3.1 Requirements
The floor-standing luminaire can be switched, dimmed and
tuned (Tunable White) with two pushbuttons.
The integrated presence sensor automatically detects pres-
ence and turns the light on (and off again after a 15-minute
delay time).
HCL (Human Centric Light) should be active based on a
pre-defined daylight curve for artificial daylight simulation
running during business hours while presence is detected.
Direct light
Indirect light
5.1.3.2 Product setup and wiring diagram
DALI ECO BT RTC with resistor
Direct light
Indirect light
Solution with DALI ECO BT RTC
1 x DALI ECO BT RTC
Application controller
1 x DALI sensor LS/PD LI G2
Light and presence sensor
DALI LS/PD LI
DA
DA
L
N
Pe
TW control with
second pushbutton
DALI ECO BT RTC
L
N
PB
PB
DA
DA
DALI LED driver TW
L
N
Pe
DA
DA
820 Ω,
5 %,
0.25 W
