5.2.5.8 Grouping
According to the open-plan office requirements, the luminaires
need to be grouped to realize the three different light groups.

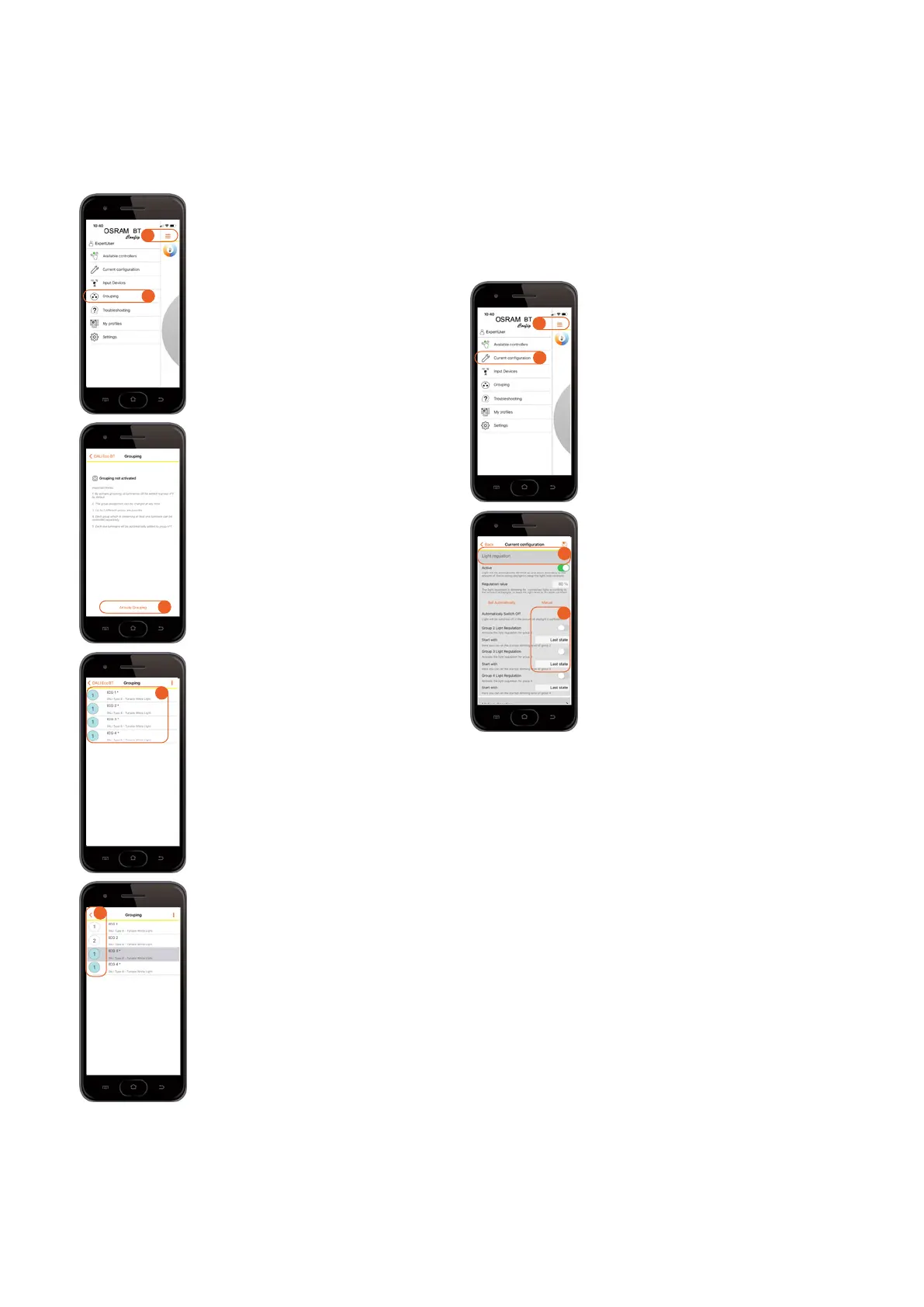

Group the luminaires
1. Open the main menu.
2. Open “Grouping” in the main
menu.
3. Start the addressing procedure by
selecting “Activate Grouping”.
4. All found LED drivers will be listed
and automatically assigned to group 1
.
After selecting a device, the connected
luminaire starts flashing.
5. After selecting the group number,
the number changes 1-2-3-4-1 …, as
up to four groups can be configured.
Group 1 = Window row light
Group 2 = Center row light
Group 3 = Corridor row light
5.2.5.9 DLHV function with defined light group offset
Depending on the availability of natural daylight and the
room setup, the light regulation provides the right amount
of light according to the needs of the customer. As the DLHV
function is dedicated to group 1 only, the other light groups
– group 2 and group 3 – have to be run with a defined offset
compared to group 1 to guarantee an equal light distribution
throughout the room.
Define the light group offset
1. Open the main menu.
2. Open “Current configuration”.
3. Now open the “Light regulation”.
4. Activate the “Group 2 Light
Regulation” and define the “Offset”
according to room requirements.
Repeat step 4 for the “Group 3 Light
Regulation” setup.
