Otto 100 - Figure 2 Charge Dock Pinch;Crush Points

OTTO 1 00 Fast Charger • OMM- 000037 • REV. H
21
© Clearpath Robotics Inc. 2020. All rights reserved. CLEARPATH and OTTO are trademarks of Clearpath Robotics Inc. All other product and company names listed are trademarks
or trade names of their respective companies. The information contained in these documents is the Confidential and/or Proprietary property of Clearpath Robotics Inc. and may not
be duplicated, reproduced or further disclosed without the express written approval of Clearpath Robotics Inc.
Electrical Shock
Do not put fingers onto the charge contacts or near the contact cartridge.
Do not use this product if the flexible power cord is frayed, has broken insulation, or shows any
other signs of damage.
Do not use this product if the enclosure or any of the connectors are broken, cracked, open, or
show any other indication of damage.
Pinch/Crush
Objects can be pinched between an OTTO 100 SDV and the Charge Dock. The OTTO 100 SDV
docks into the charger with reduced LiDAR safety fields and will not detect obstacles near the
Dock. Keep hands and other objects clear of these pinch points at all times (see following
figure). Keep clear of all OTTO SDVs in the vicinity of the charger. We recommend marking the
area adjacent to the charger and within reach of it as a hazard zone to warn personnel to
maintain distance.

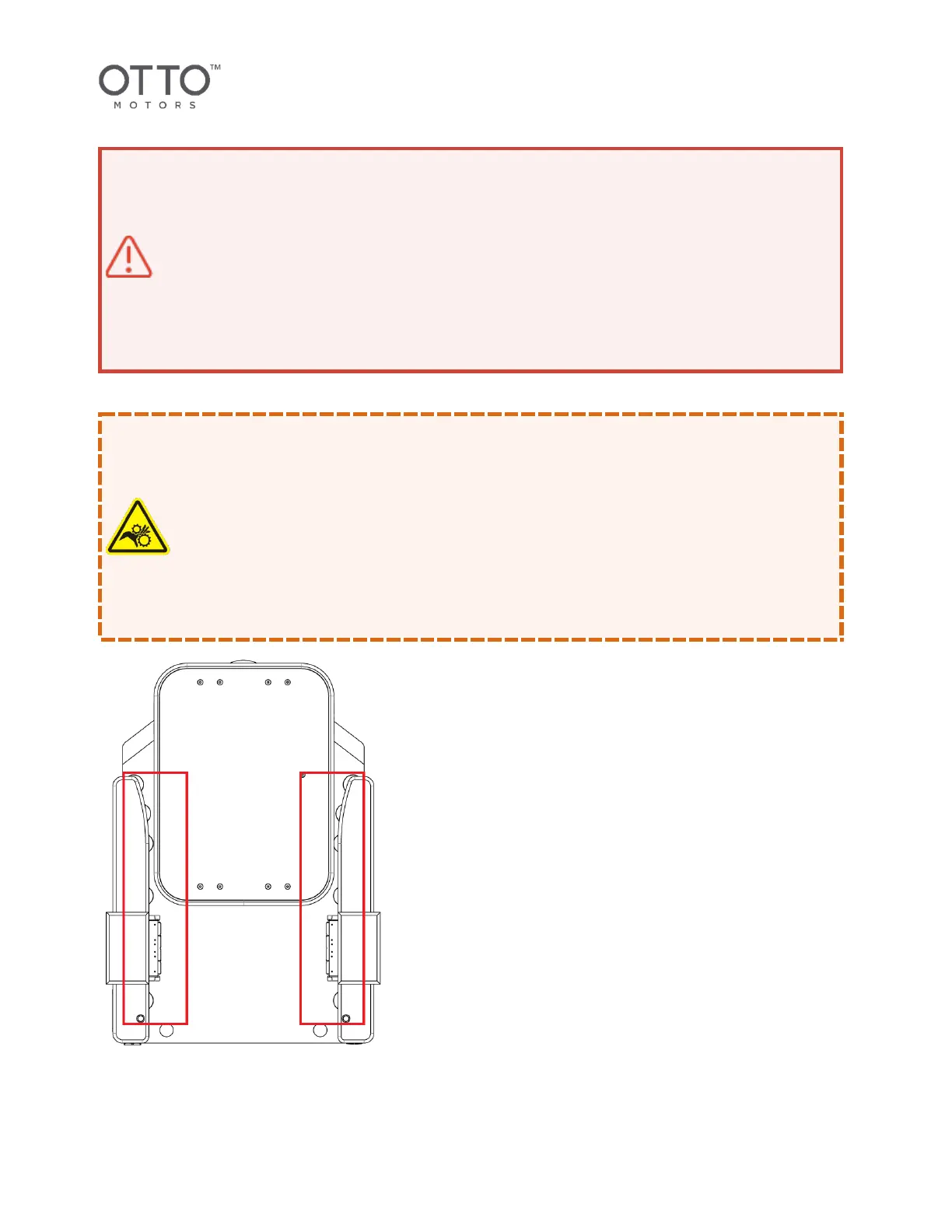

Figure 2 Charge Dock Pinch/Crush Points
