8 COMPONENTS OVERVIEW
The components overview is intended to familiarize the user with the important elements of the charger
system.

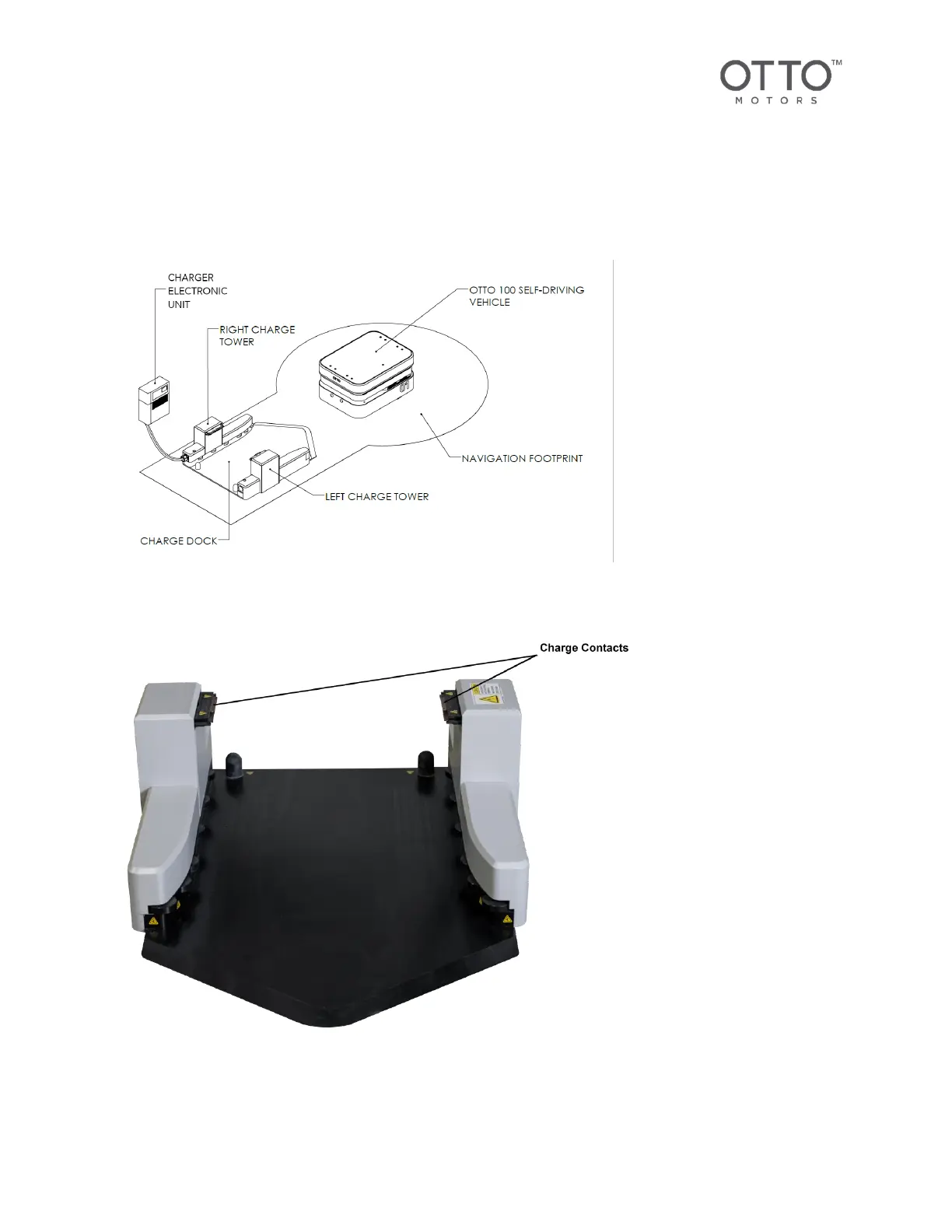

Figure 4 Charger Key Components
Figure 5 Charge Dock and Charge Contacts
