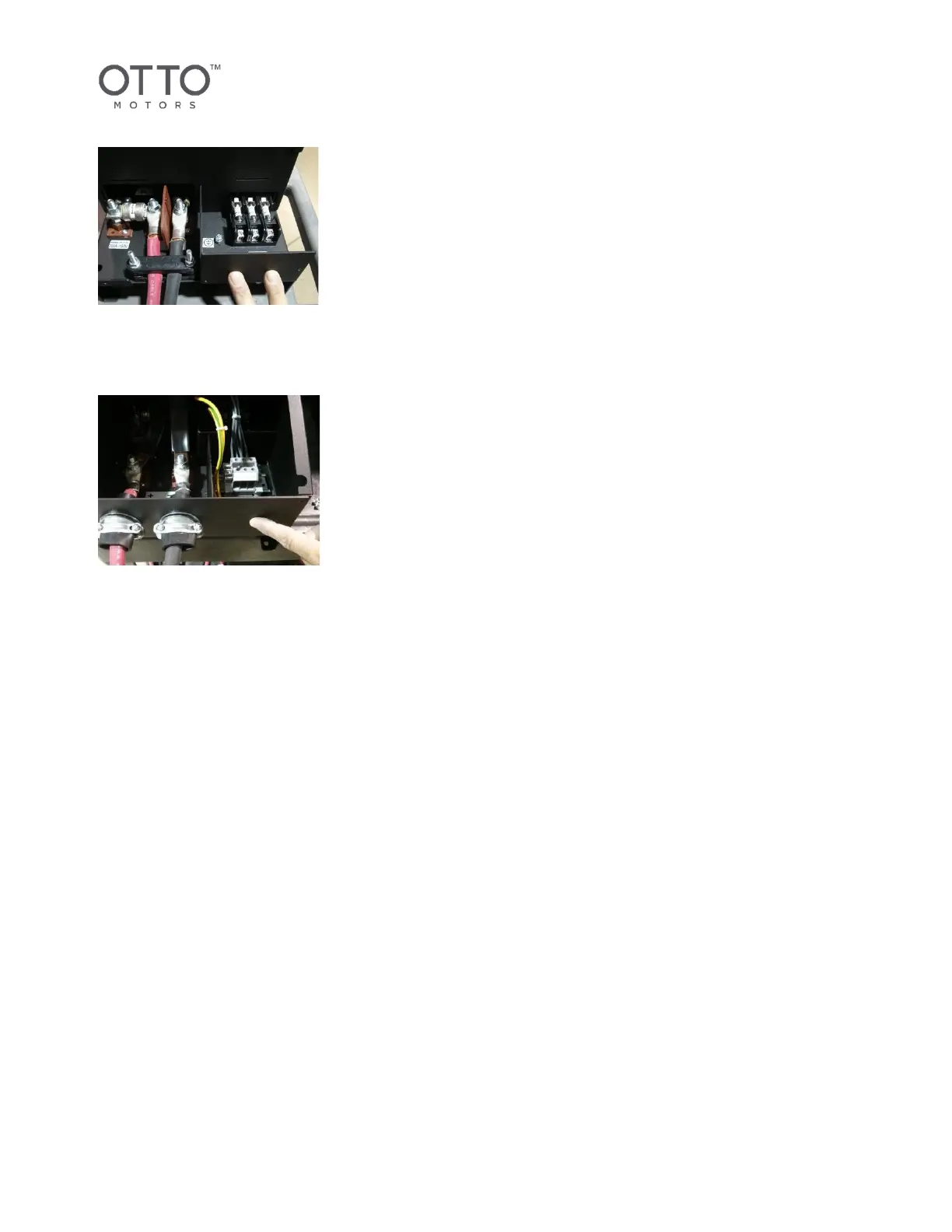

Figure 8 Access 8/XX & Access 10/XX
On units with Model numbers Access 16/XX and 20/XX, input connections are made to the terminal block
and ground stud above the power entry knockout.
Figure 9 Access 16/XX & Access 20/XX
10.1.2 Charger Electronic Unit Installation
With many different local codes that modify the requirements, it can be difficult to determine the proper
conductor and overcurrent protection device requirements. Always follow the guidance of your local
electrically qualified person.
10.1.2.1 Important Notes
• Install the Charger Electronic Unit so that gasses from a charging battery do not get sucked in by
the battery charger fan. If several battery chargers are to be installed next to each other, they
cannot be located so that warm exhaust air from one Charger Electronic Unit blows into the air
intake of another battery charger - this is accomplished by always allowing for at least 12 inches of
space on both sides, bottom, and the top around the charger. This includes other chargers and/or
equipment, walls or other obstructions.
• The Charger Electronic Unit must be mounted vertically suspended on a wall, post, struts, or
available shelf mount bracket.
• When mounted on a wall, the Charger Electronic Unit should be placed vertically to provide the
most efficient cooling. Mounting the charger other than vertically will result in a “Charger Not
Upright” fault condition that can be corrected by moving it to an upright position.
• The Charger Electronic Unit is not intended to be mounted on mobile equipment.
