1. It is not necessary to disassemble the Charger Electronic Unit to mount it to a wall or other flush
surface. A bracket for this type of mounting is included with each charger. For flush mounting on a
flat wall, use the brief directions below.
2. Mount the bracket shown below securely to your wall within 1 m floor distance of where the Charge
Dock will be installed.
Caution
Total weight could be up to 125 lbs per Charger Electronic Unit - size mounting
hardware accordingly.

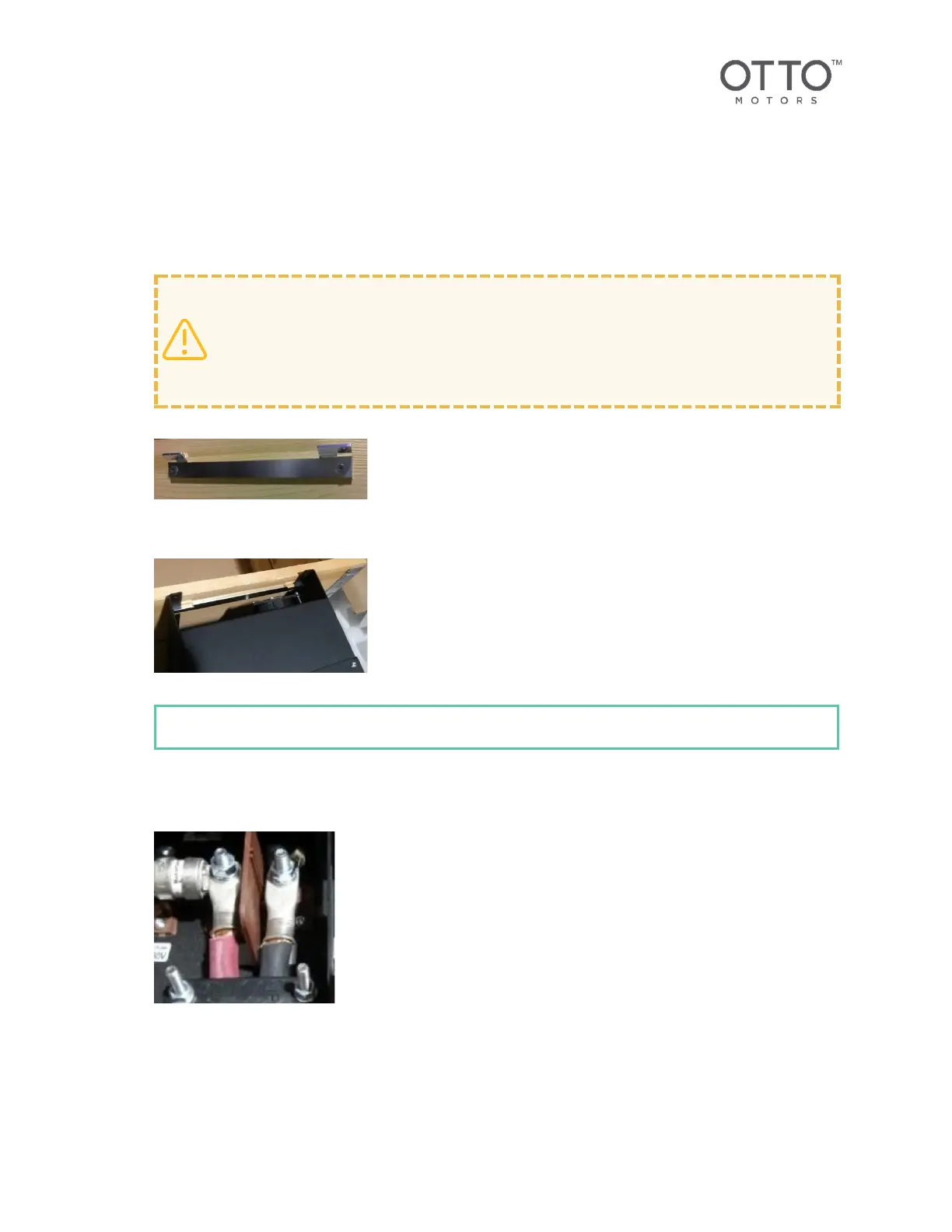

Figure 10 Charger Wall Unit Bracket
Figure 11 Charger Wall Unit Mounted
The cable that spans between the Charger Electronic Unit and Charge Dock is 3 m long.
3. Confirm that the red and black power cables (see following) going from the Charger Electronic Unit
to the Charge Dock did not loosen during shipping. For the Ecotec Charger Units used these
screws should be tightened to 4 Nm.
Figure 12 Ecotec Charger Power Cable Connections
4. Once the Charger Electronic Unit is hanging from the bracket, mark the position on the wall of the
