Installation
14 900-0009-01-00 Rev C

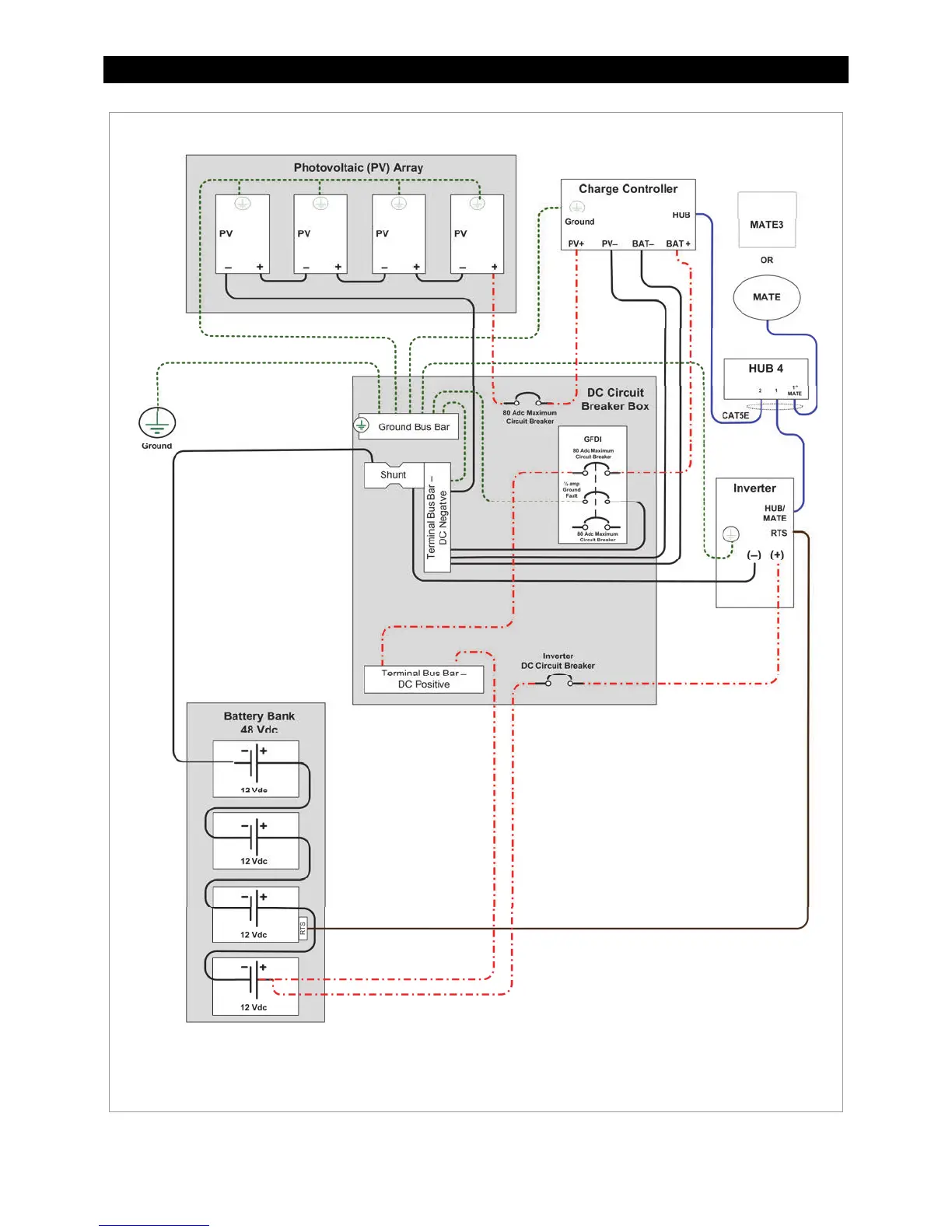

Figure 8 Wiring Diagram – Charge Controller with
PV Array Ground Fault Protection
