OutBack Power FLEXmax 60 - MATE;MATE2 Screens; Summary Screens

900-0009-01-00 Rev C 71
MATE/MATE2 Screens
Summary Screens

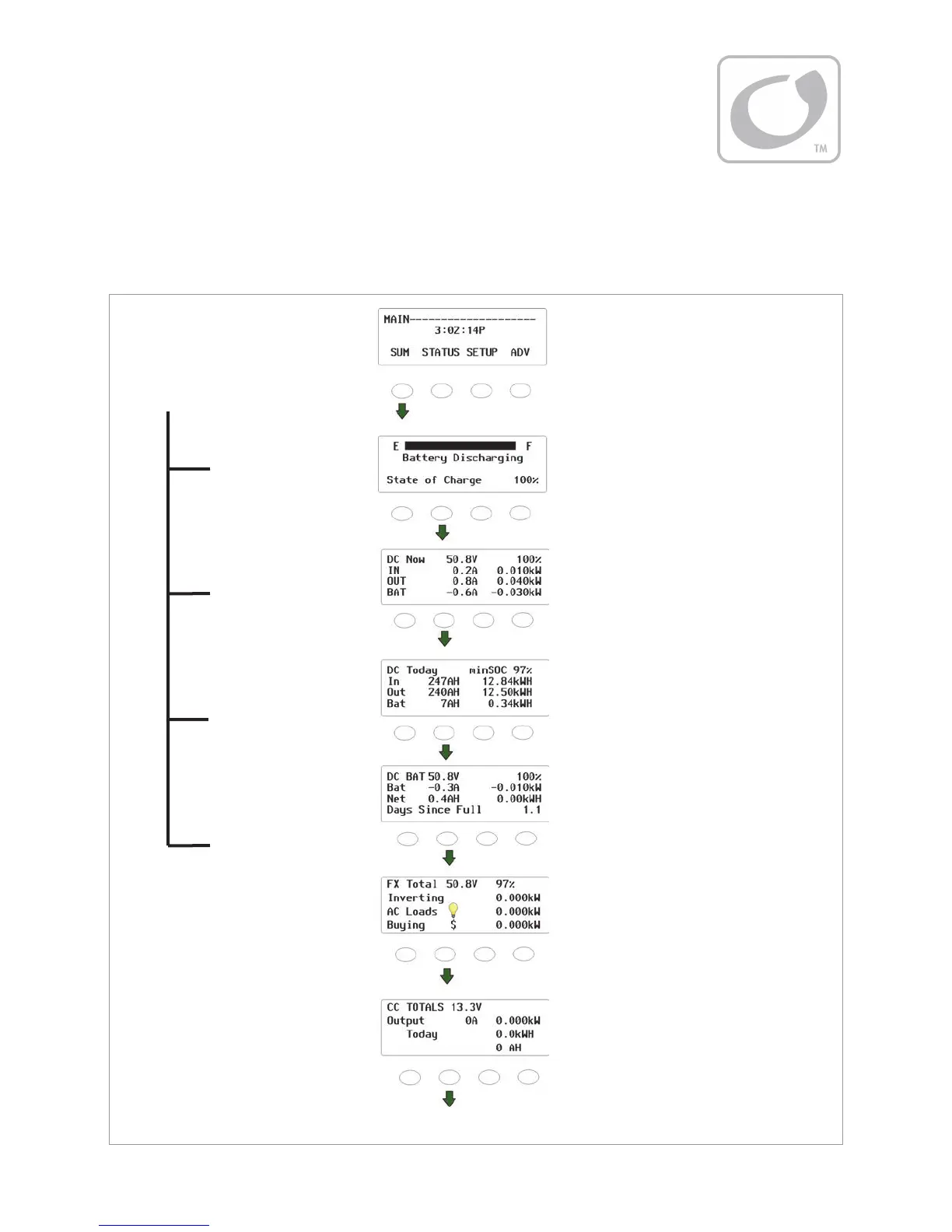

Figure 80 Summary Screens
FLEXnet DC
Summary Screen #1
FLEXnet DC
Summary Screen #2
FLEXnet DC
Summary Screen #3
FLEXnet DC
Summary Screen #4
FX Inverter/Charger
Summary Screen
FLEXmax Charge Controller
Summary Screen
If a FLEXnet DC is
installed in the system,
the following summary
screens will be available.
(If the FNDC is not installed, this
will be the 1
st
Summary Screen.)
