OutBack Power FLEXmax 60 User Manual

MATE/MATE2 Screens
900-0009-01-00 Rev C 75
LOG Screens

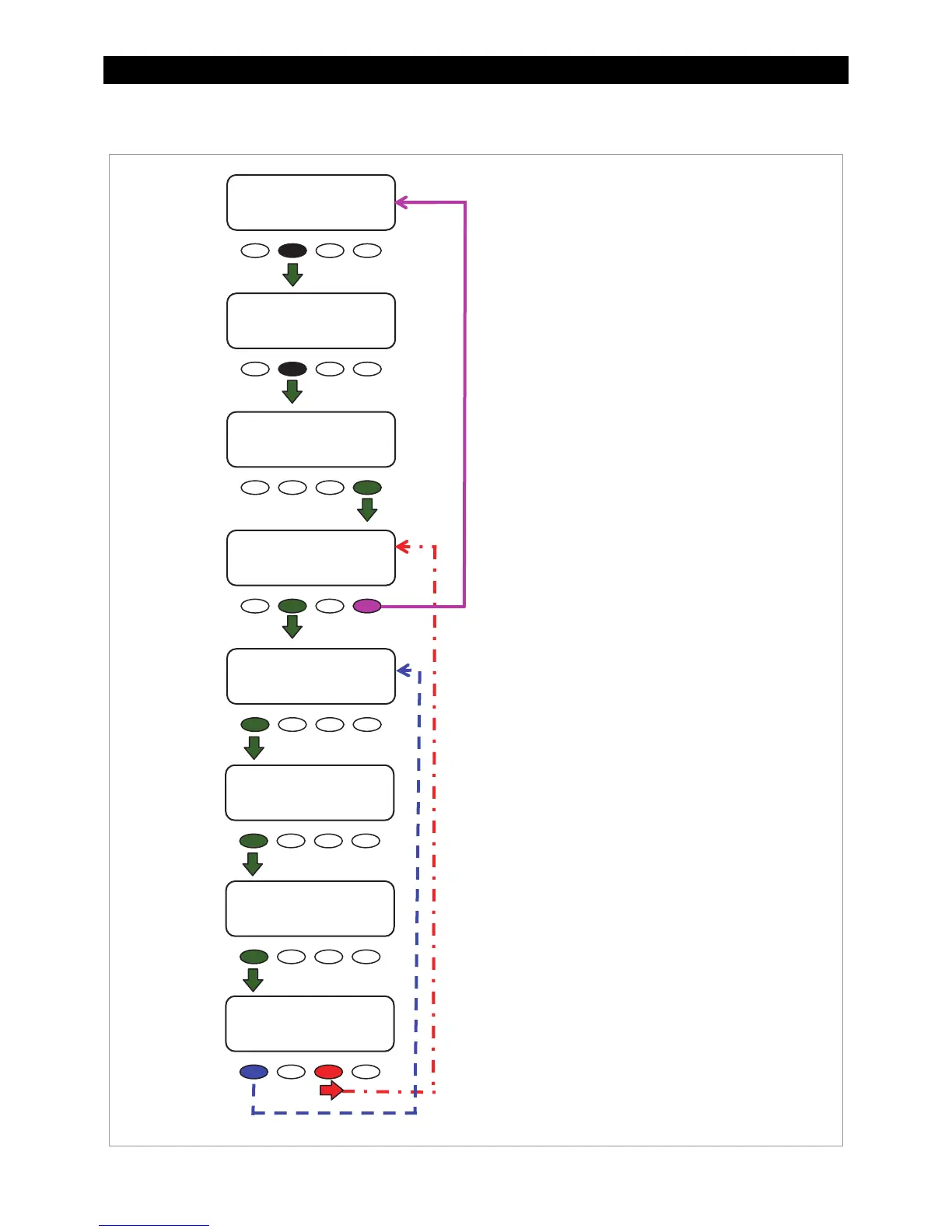

Figure 84 LOG Screens
Navigation for STATUS/CC/LOGS

<STATUS>
returns to the
CC/PG2
screen.

<DOWN>
moves to the next menu item
in the diagram.

<UP>
moves to the previous menu item
in the diagram.

<TOP>
returns to the 1
st
CC/LOG1
screen
for the port shown.

<PORT>
directs the MATE to read the
next device (port) on the HUB.

<DAY–>
displays log information from
one day earlier. Logs can be displayed
from as far as 128 days in the past.

<DAY+>
displays log information from
one day later. If the present day is
displayed, then pressing this key will
return the log to 128 days in the past.
STATUS/CC/METER----P00
end of cc logs display
TOP STATUS
STATUS----------------
choose device
FX CC DC MAIN
MAIN------------------
1:35:04p
SUM STATUS SETUP ADV
STATUS/CC/PAGE1
MODE METER SETPT PG2
STATUS/CC/PAGE2-------
PG1 LOGS STAT MAIN
STATUS/CC/LOG1-----P00
TODAY 0 AH 00.0 kWH
21Vp 00.0Ap 0.00kWp
DOWN DAY- DAY+ PORT
STATUS/CC/LOG2-----P00
TODAY battery
max 14.5V min 14.4V
DOWN DAY- DAY+ PORT
STATUS/CC/LOG3-----P00
TODAY absorb float
00:00 00:00
DOWN DAY- DAY+ PORT
Charge Controller Logs
The LOG screens contain information
collected from the FLEXmax on individual
days. These logs include daily accumulated
amp-hours and kilowatt-hours, and peak
readings for power, current, and voltage. It
also includes the timers for the FLEXmax
battery charger. This data is the same as
that shown on the FLEXmax End-of-Day
Summary screen (see page 18.)
Log 1 Today:

AH
(accumulated battery amp-hours)

Kwh
(accumulated battery
kilowatt-hours)

Vp
(peak PV voltage)

Ap
(peak PV current)

kWp
(peak PV kilowatt-hours)
Log 2 Today:

max V
(maximum battery voltage)

min V
(minimum battery voltage)
Log 3 Today:

absorb
timer

float
timer
