OutBack Power FLEXmax 60 - MATE and MATE2 Menu Maps for the Flexmax; STATUS Menu Map

MATE/MATE2 Screens
82 900-0009-01-00 Rev C
MATE and MATE2 Menu Maps for the FLEXmax
STATUS Menu Map

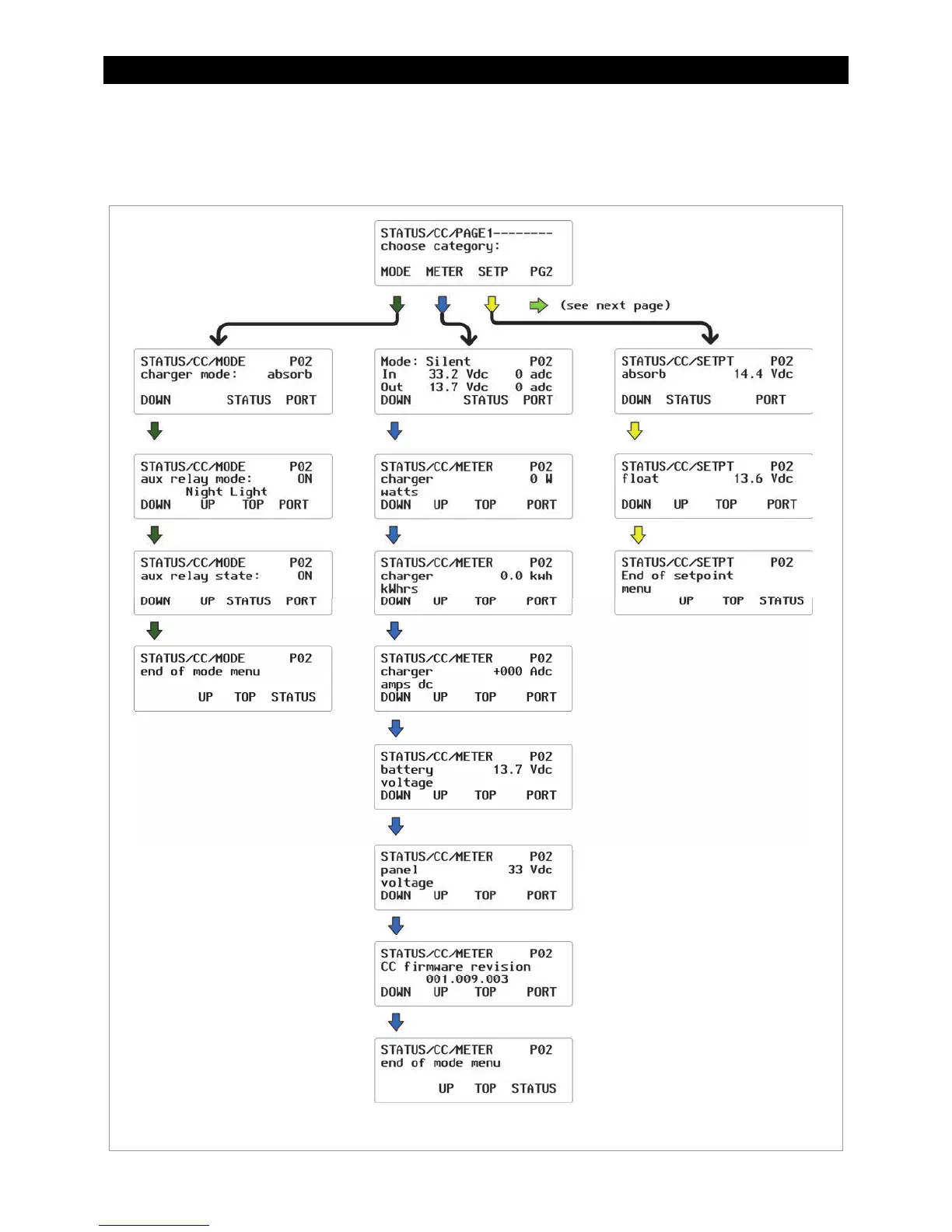

Figure 91 MATE STATUS Menu Map (Page 1)
Navigation for
STATUS/CC/PAGE1

<DOWN>
moves to the next
menu item in the diagram.

<UP>
returns to the
previous menu item in the
diagram.

<PORT>
directs the MATE to
read the next device (port)
on the HUB.

<TOP>
returns to the
STATUS/CC/PAGE1
screen.

<STATUS>
returns to the
screen at the top of the
respective column.
