OutBack Power FLEXmax 60 User Manual

Operation
900-0009-01-00 Rev C 29
Table 2 Aux Mode Functions
Mode Name Function/Purpose Set Points Aux Polarity
Low Battery
Disconnect
Function:
When the battery voltage falls below the
threshold disconnect voltage, the AUX output
activates. When the battery voltage rises above
the threshold reconnect voltage, the AUX
deactivates.
Purpose:
This mode is intended to operate a relay to turn
off loads and save battery capacity.
 Threshold
Voltage for
disconnect
 Threshold
voltage for
reconnect
 Time delay
Not Available
Remote
Allows an OutBack system display to control the
AUX output (see the system display manual
for details).
None Not Available
AUX MODE Screen Navigation

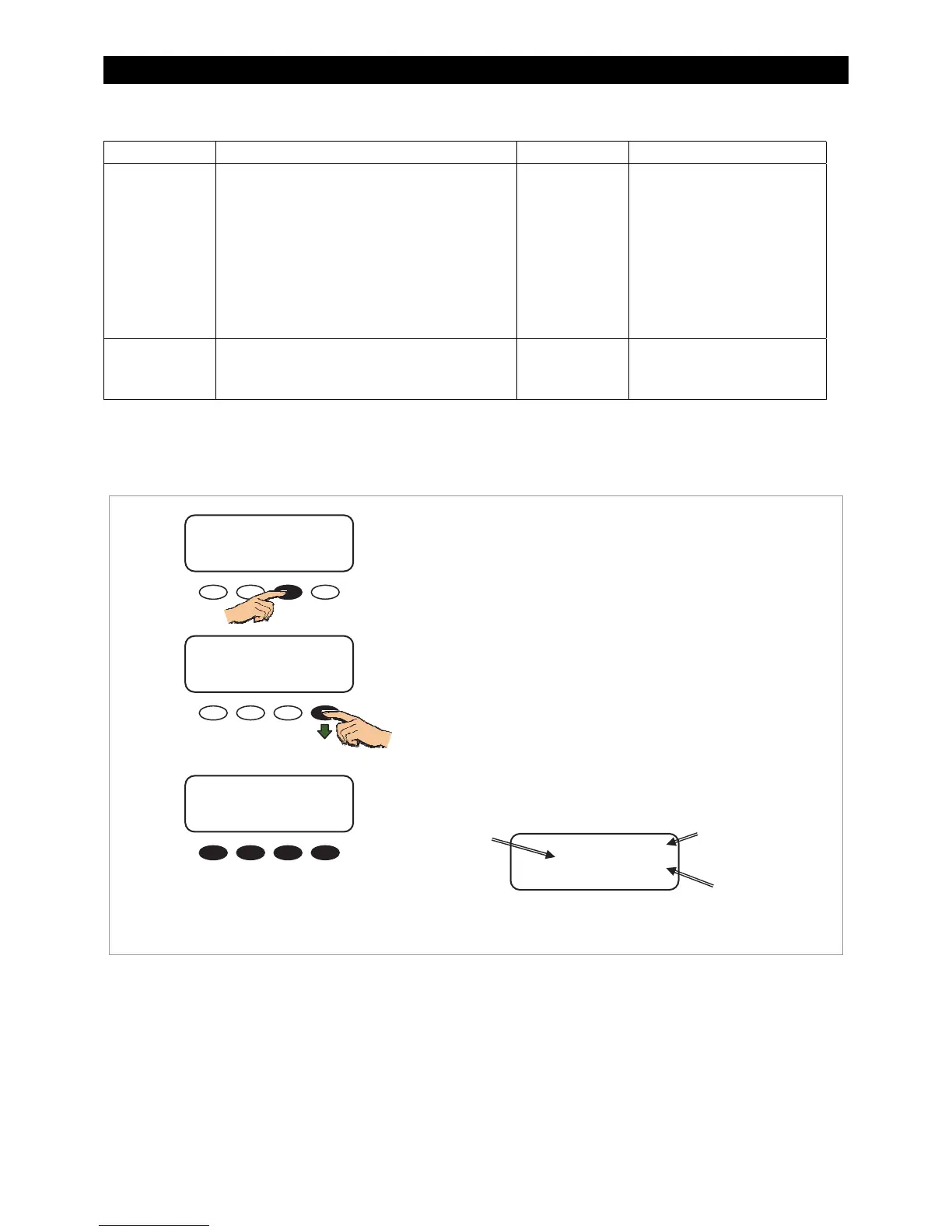

Figure 19 Aux Screen Navigation
To access the AUX MODE screen and adjust the settings:
1. From the main menu, press <> or <> to move the  to
the left of Aux.
2. Press <GO> to open the Aux screen.
3. Press <NEXT> to cycle through the available auxiliary modes.
4. Press <MODE> to cycle through the mode set points ON, OFF,
or AUTO. In AUTO mode, the function will automatically
activate when a user-determined value is met and deactivate
(or shut down) when other conditions are met, such as a
certain amount of time passing.
5. Press <SET> to select the set point(s) (if available).
6. Press <EXIT> once to return to the main menu.
7. Press <EXIT> twice to return to the status screen.
Charger Aux Light
EQ Misc Advanced
Logging Stats
EXIT   GO
Main Menu
AUX MODE 
Night Light
Output: Off Off
EXIT NEXT SET MODE
AUX MODE Screen
Charger Aux Light
EQ Misc Advanced
Logging Stats
EXIT   GO
NOTE: If more than 10 minutes have passed since
any activity, the PASSWORD screen becomes active,
re
q
uirin
g
the user to reenter the
p
assword (141).
AUX MODE 
Night Light
Output: Off Off
EXIT NEXT SET MODE
A
ux Polarit
y
See page 53.
A
UX MODE
Set Point
A
UX MODE
Name
