OutBack Power FLEXmax 60 User Manual

MATE/MATE2 Screens
74 900-0009-01-00 Rev C
SETPT Screens

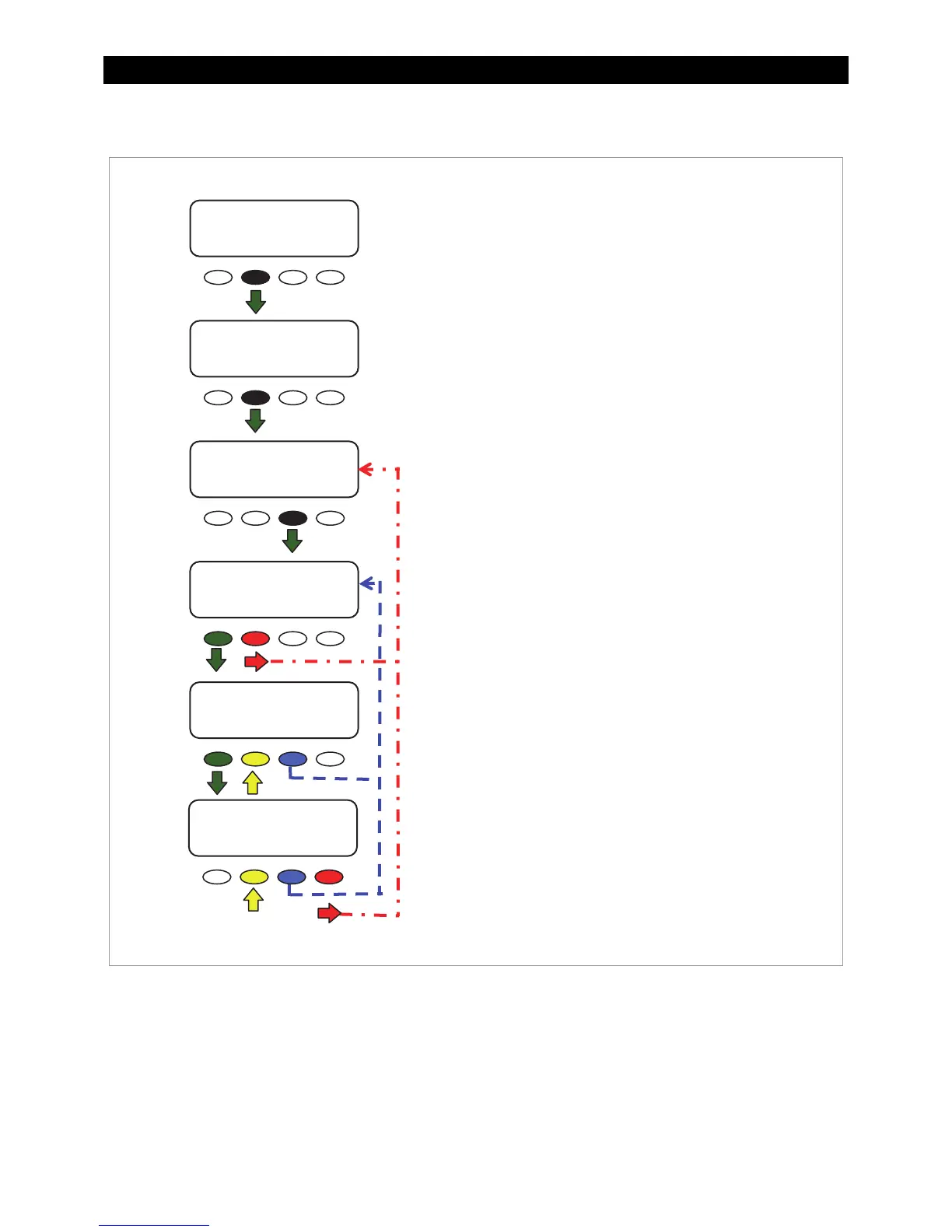

Figure 83 SETPT Screens
Navigation for STATUS/CC/SETPT

<STATUS>
returns to the
CC/PAGE1
screen.

<DOWN>
moves to the next menu item in the
diagram.

<UP>
moves to the previous menu item in the
diagram.

<TOP>
returns to the first
CC/SETPT
screen for the
port shown.

<PORT>
directs the MATE to read the next device
(port) on the HUB.
Charge Controller SETPT (set point) Screens
The SETPT screens display the current settings for
the FLEXmax battery charger, as described on
page 26.

Absorb

Float
STATUS/CC/SETPT----P00
end of set point
menu
UP TOP STATUS
STATUS----------------
choose device
FX CC DC MAIN
MAIN------------------
1:35:04p
SUM STATUS SETUP ADV
STATUS/CC/PAGE1
MODE METER SETPT PG2
STATUS/CC/SETPT----P00
absorb 14.4 Vdc
DOWN STATUS PORT
STATUS/CC/SETPT----P00
float 13.6 Vdc
DOWN UP TOP PORT
