MATE/MATE2 Screens
80 900-0009-01-00 Rev C
EQ Menu

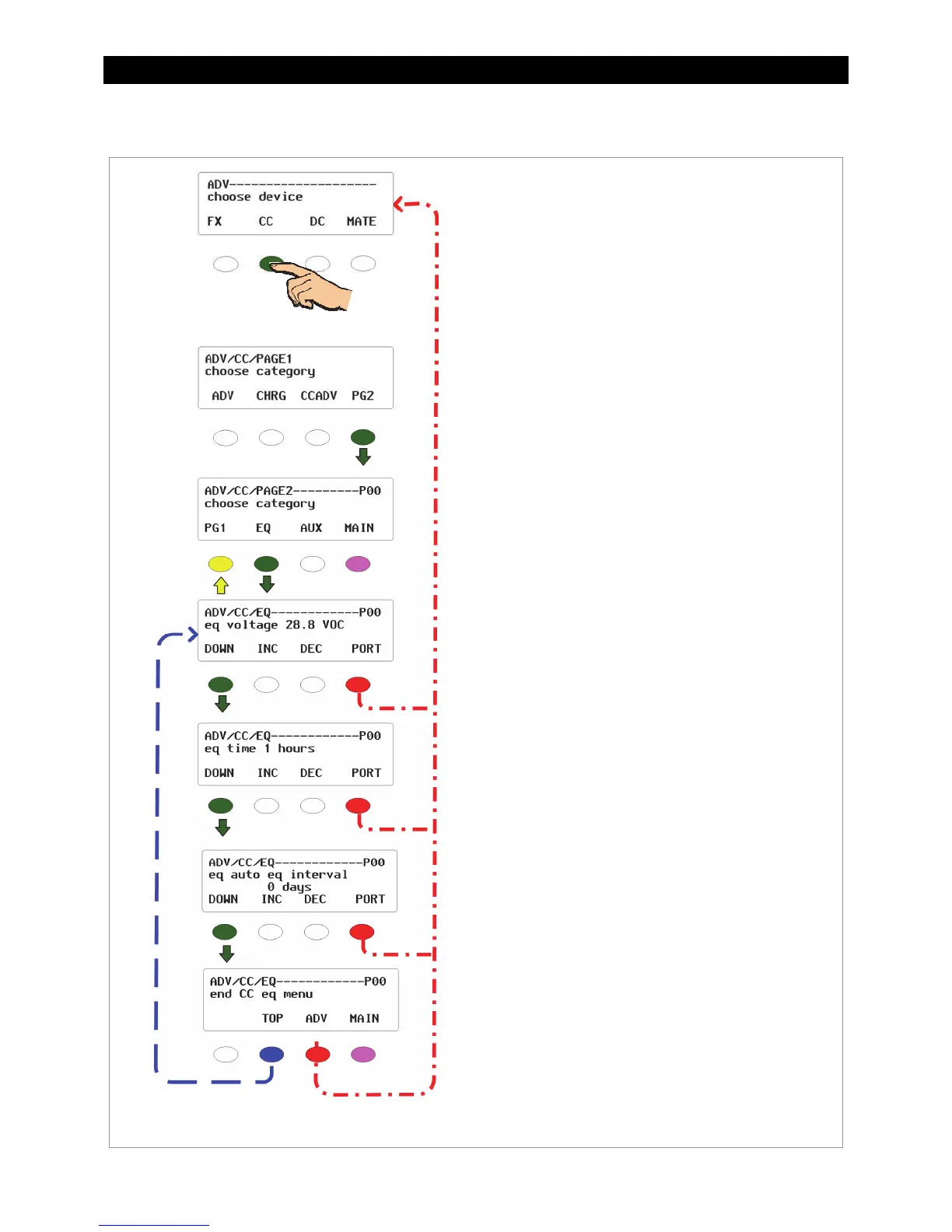

Figure 89 ADV Menu for EQ Charging Features
Navigation for ADV/CC/EQ
<DOWN>
moves to the next menu item in
the diagram.
<INC>
increases the value of the selection.
<DEC>
decreases the value of the selection.
<PORT>
directs the MATE to read the next
device (port) on the HUB.
<TOP>
returns to the
CC/EQ
screen.
<ADV>
returns to the
choose device
screen.
<MAIN>
exits the Advanced menus and
returns to the main menu (see page 77).
CC/Equalization
The EQ screens adjust the same settings that are
available on the EQ screen in the FLEXmax
(see page 42).
eq voltage
eq time
eq auto eq interval
To Next Page
