OutBack Power FLEXmax 60 - Advanced Menu Map

MATE/MATE2 Screens
84 900-0009-01-00 Rev C
Advanced Menu Map

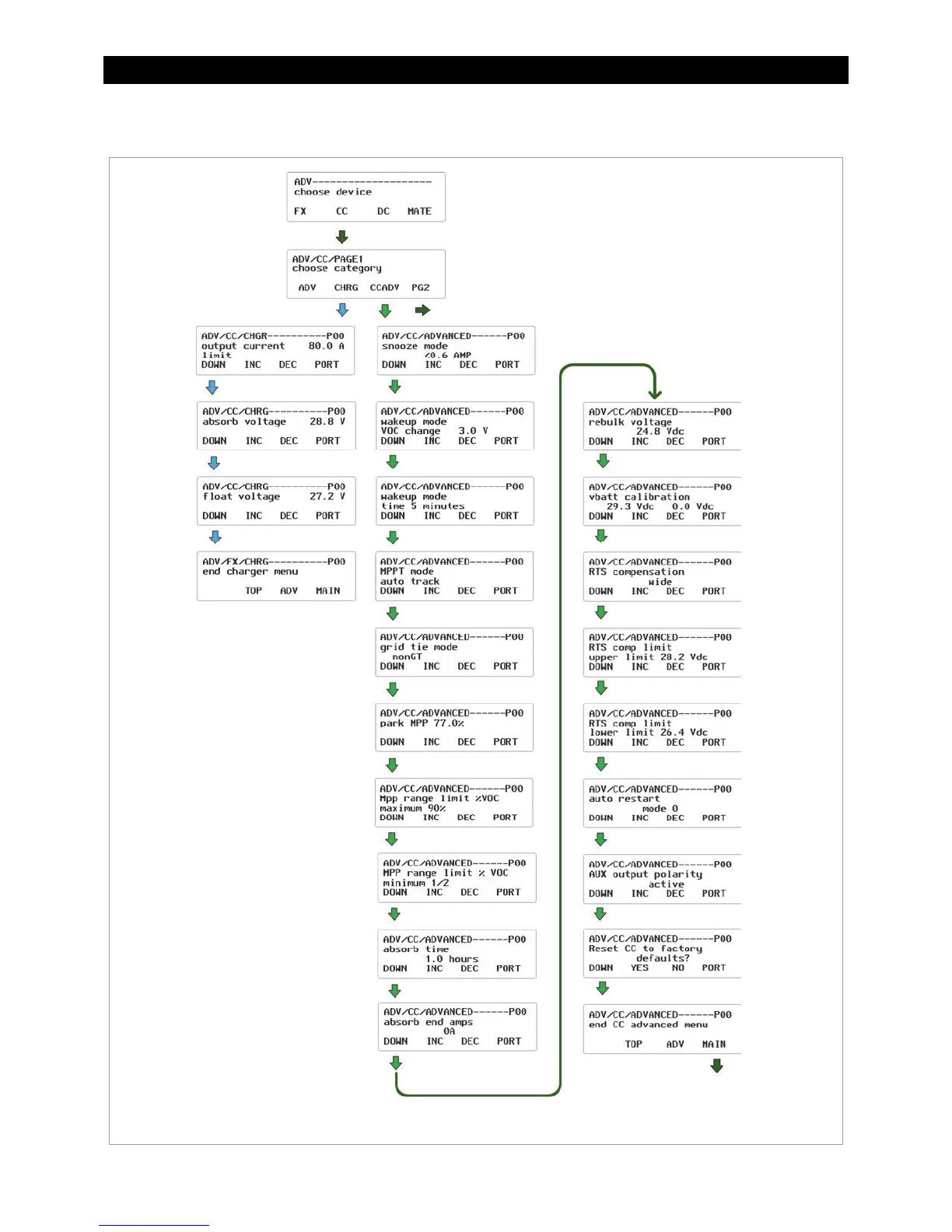

Figure 93 MATE ADVanced Menu Map (Page 1)
Navigation for
ADV/CC/PAGE1

<DOWN>
moves to the
next menu item in the
diagram.

<UP>
returns to the
previous menu item in
the diagram.

<PORT>
directs the
MATE to read the next
device (port) on
the HUB.

<TOP>
returns to the
CC/PAGE1
screen.

<ADV>
returnsto the
choose device
screen.
