MATE/MATE2 Screens
900-0009-01-00 Rev C 83

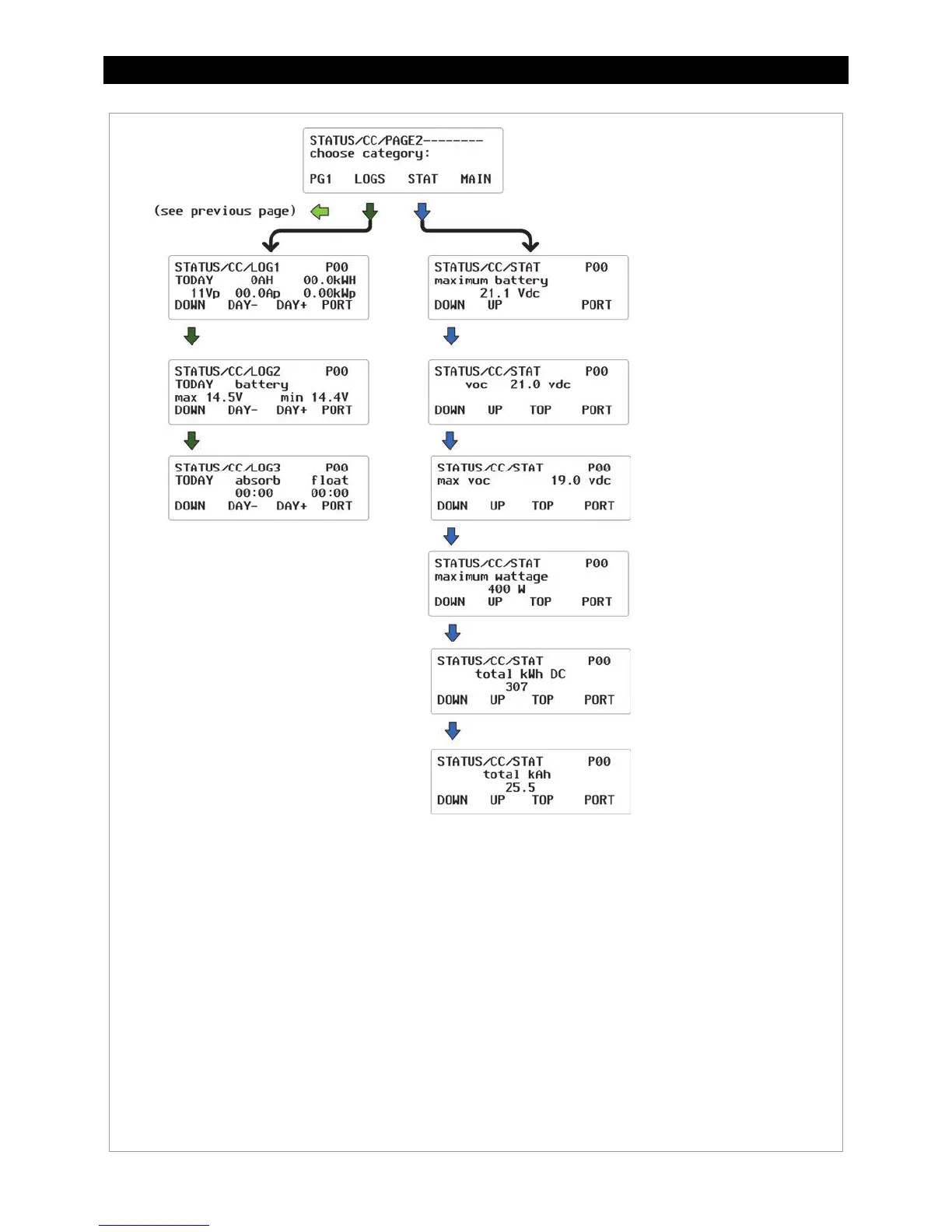

Figure 92 MATE STATUS Menu Map (Page 2)
Navigation for
STATUS/CC/PAGE2

<DOWN>
moves to the next
menu item in the diagram.

<UP>
returns to the
previous menu item in the
diagram.

<PORT>
directs the MATE to
read the next device (port)
on the HUB.

<TOP>
returns to the
STATUS/CC/PAGE2
screen.

<STATUS>
returns to the
screen at the top of the
respective column.
