OutBack Power FLEXmax 60 User Manual

MATE/MATE2 Screens
78 900-0009-01-00 Rev C
CHGR Menu

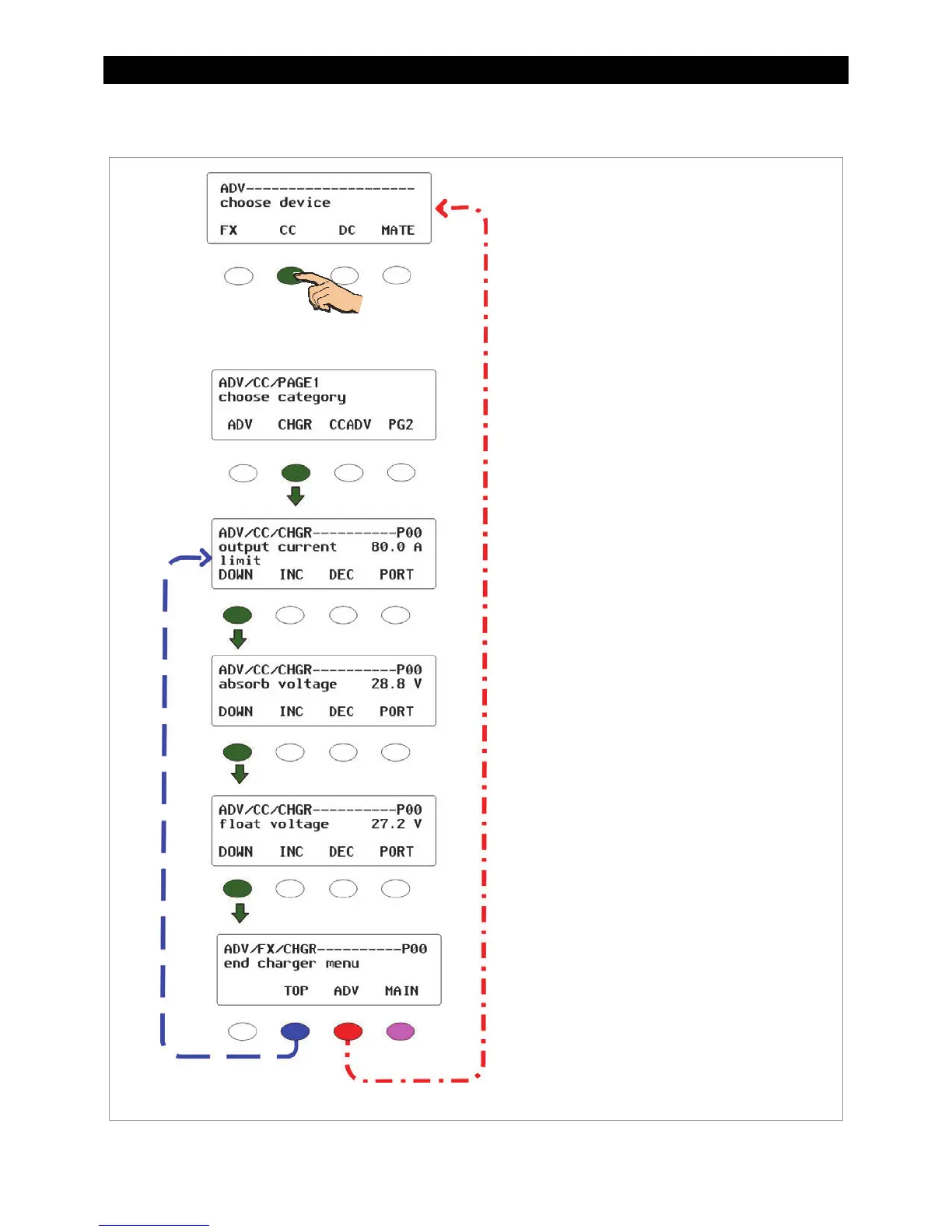

Figure 87 ADV Menu for Charging Features
Navigation for ADV/CC/CHGR

<DOWN>
moves to the next
menu item in the diagram.

<INC>
increases the value of the
selection.

<DEC>
decreases the value of the
selection.

<PORT>
directs the MATE to read
the next device (port) on the HUB.

<ADV>
returns to the
CC/PAGE1
screen.

<TOP>
returns to the
CC/CHGR
screen.

<MAIN>
exits the Advanced
menus and returns to the main
menu (see page 77).
CC/Charger
The CHGR screens adjust the same
settings that are available on the
Charger screen in the FLEXmax
(see page 26).
 output current limit
 absorb voltage
 float voltage
