Panel Operation
Set the frequency/period
Press the On/Off to enable channel.
Press Frequency/Period softkey, the selected menu item is highlighted
in white, and a cursor will display on the corresponding parameter item in
Parameter 1. Press Frequency/Period softkey to switch the frequency
and period.
There are two ways to change the selected parameter value:
Turn the knob to increase or decrease the value at the cursor. Press the
/ arrow key to move the cursor left or right.
Press a number key on the numeric keypad directly, the screen will pop
out the data input box, input the desired value. Press the right menu soft
key to select the unit of the parameter, confirm numeric input. Press Back
softkey to cancel the current input parameter value.

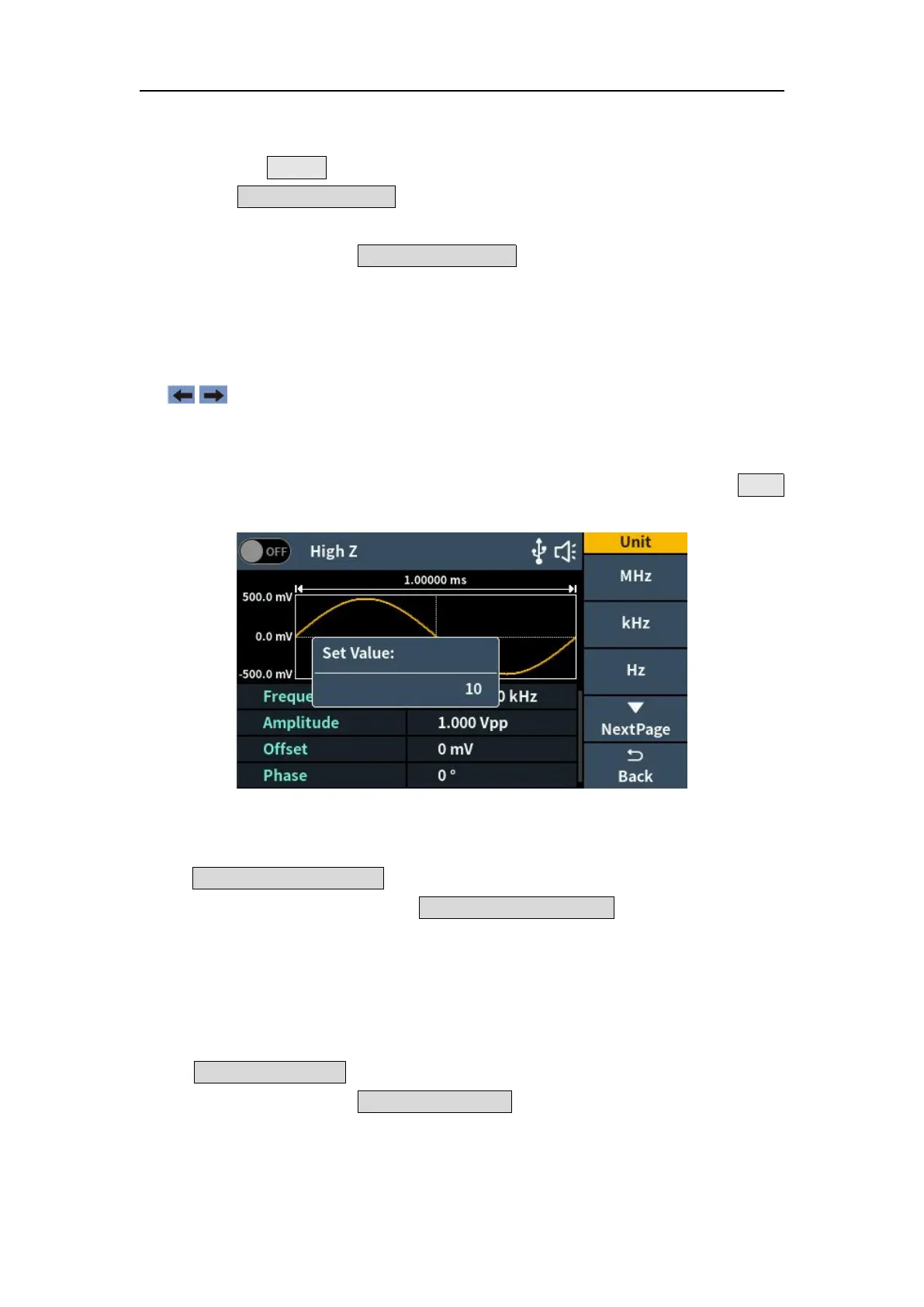

Figure 5- 3：Use the numeric keypad to set the frequency
Set the amplitude
Press Amplitude/High Level softkey to confirm whether the Amplitude menu
item is highlighted; if not, press Amplitude/High Level sofkey to switch to
Amplitude. In Parameter 2 of Figure 5- 2, a cursor appears in the parameter
value of amplitude. Turn the knob to change the value directly, or use the
numeric keypad to input the desired value and choose the unit.
Set the offset
Press Offset/Low Level softkey to confirm whether the Offset menu item is
highlighted; if not, press Offset/Low Level softkey to switch to Offset. In
Parameter 3 of Figure 5- 2, a cursor appears in the parameter value of offset.
Turn the knob to change the value directly, or use the numeric keypad to
To Next Page
