Owon DGE1000 Series User Manual

5
.
Panel Operation
16
waveform points is 8192 points, and the highest upper limit frequency is
10MHz. To select a built-in waveform, the steps are as follows:
(1) Press softkey then press NextPage softkey to enter the nextpage
menu.
(2) Press Build-in softkey to enter the built-in wave menu.
(3) Press Common, Medical Treatment, Standard softkeys to select the
built-in wave type.
Press NextPage softkey to enter the next page, select the built-in wave
type: Maths, Trigonometric, Window Function.
Press NextPage softkey to enter the next page, select the built-in wave
type
：
Engineering, Seg Mod (Segmentation Modulation) and Fan test.

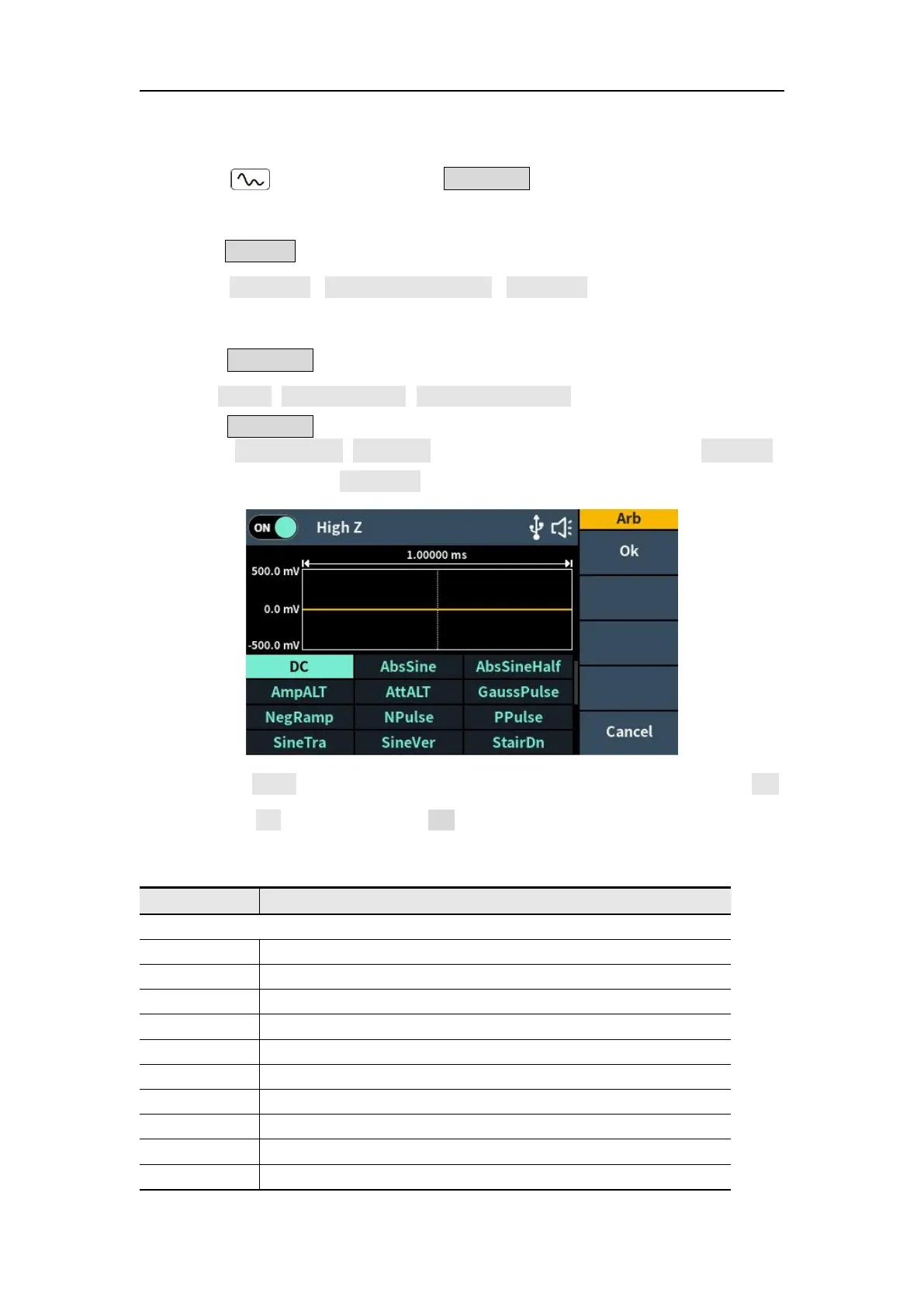

For example, select Common to enter the interface shown below.
(4) Turn the knob to select the desired waveform, for example, select DC.
Press the Ok softkey to output DC waveform.
Built-in wave list
Name
Description
Common
DC
Direct current
AbsSine
Absolute sine
AbsSineHalf
Absolute half-sine
AmpALT
Gain oscillation curve
AttALT
Attenuation oscillation curve
GaussPulse
Gauss pulse
NegRamp
Negative ramp
NPulse
Negative pulse
PPulse
Positive pulse
SineTra
Sine-Tra wave
