Pag. 35OM3109_GB

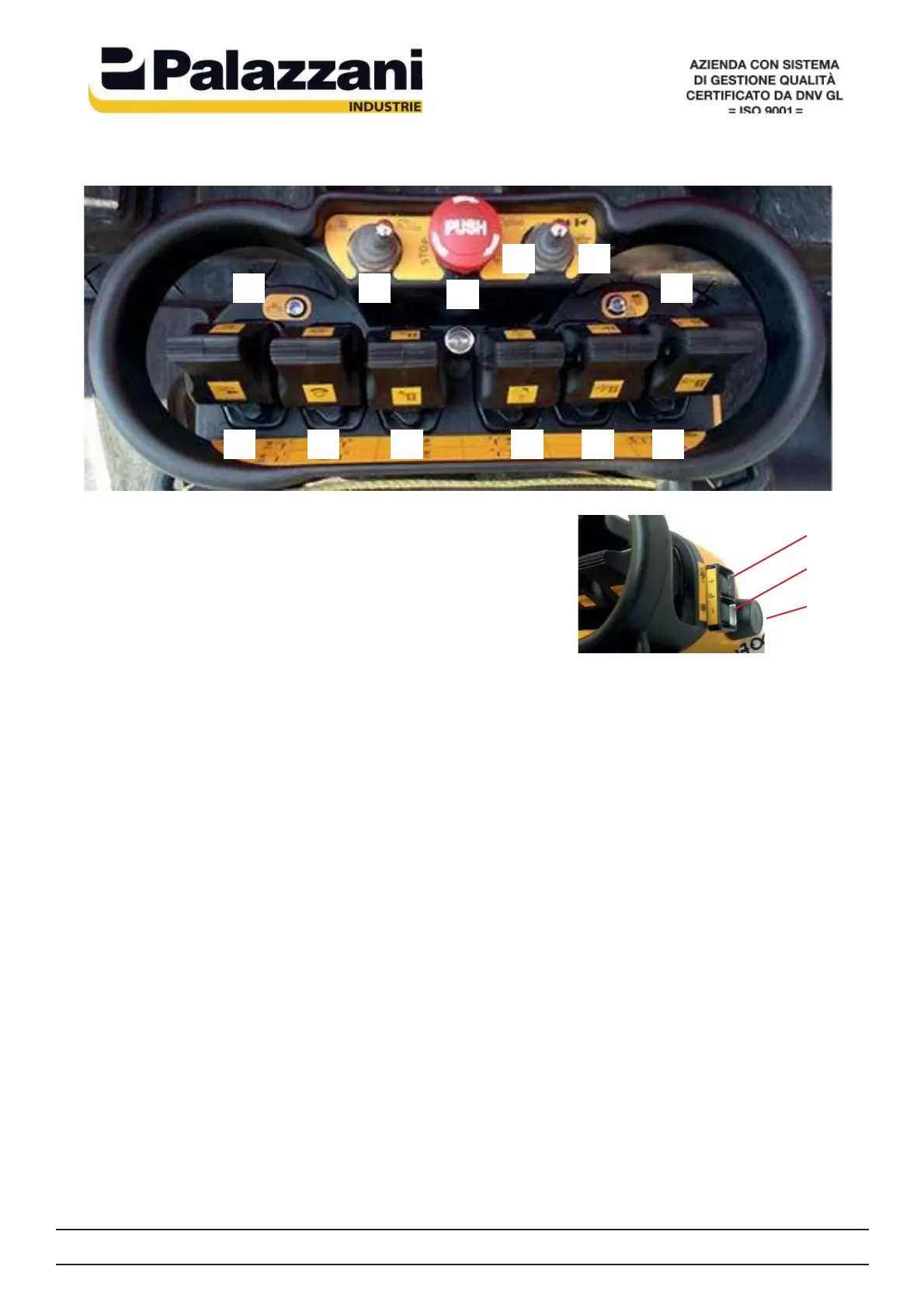

3.2. GROUND CONTROL PANEL
1. Joystick boom extention/return – stabilizer 1- left track
2. Joystick turntable rotation - stabilizer 2
3. Joystick jib extention/return - stabilizer 3
4. Joystick cage rotation - stabilizer 4
5. Joystick jib opening / closing
6. Joystick boom lifting / lowering - proportional stabilizers – right track
7. Controls activation lamp
8. Limitator activation / system alarms lamp
9. Emergency button
10. Start diesel engine
11. Stop diesel engine
12. Self-centering switch / radio frequency activation / other functions
13. Slow/fast transfer switch (speed change: optional)
14. Slow/fast transfer switch (engine rpm)
15. Radiocontrol activation switch
Fig. 3.4
To take a frequency: Turn ON the remote transmit-
ter from the selector 15 and move the selector 12 to
the right for 2-3 times.
1 2 3 4 5 6
10
8
9
15
14
13 12
11
7
