Pag. 11OM1070_GB

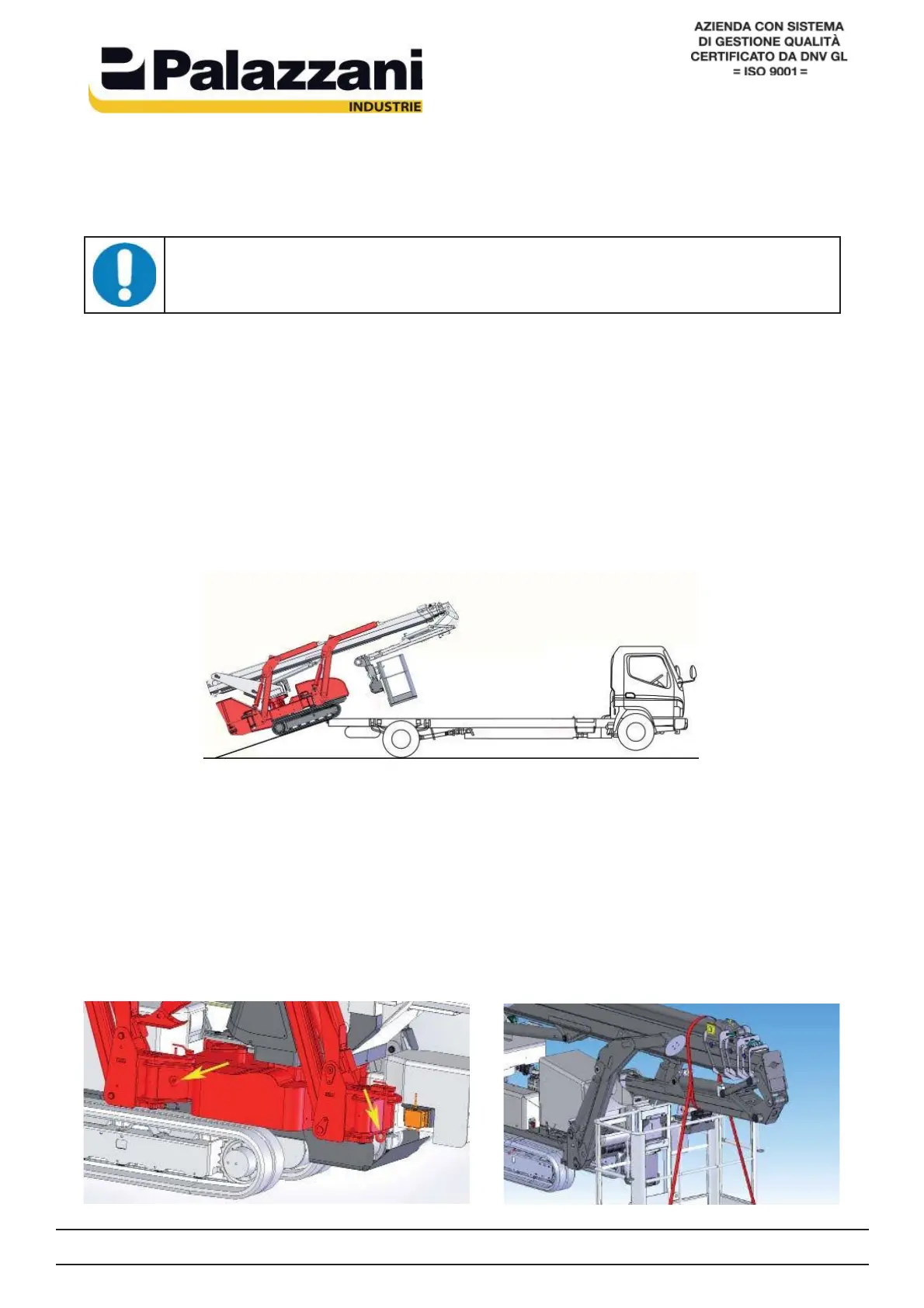

1.8. TRANSPORT
“Ragno” platform is authorized to road running, only under particular conditions and,
therefore, it must be transported by lorry.
Attention
The machine has no homologation for traffi c road circulation
Loading\unloading operations are possible with loading ramps.
The loading ramps must have a proper load capacity according to the machine (see
chapt 1) and the suffi cient length to not exceed about 40% slope.
It is suggested to load the machine with the cage towards up, to get better stability and
to avoid diesel engine fuel. Since the fuel suction is positioned in the rear side of the
machine, in case the ramp is faced with the cage toward down, the machine would be
unstable, the eventual lack of fuel could stop the engine.
Fig. 1.5
To drive to the ramp, lift the cage to avoid any contact against the ramp, as shown in
drawing 1.5. See the cage lifting without stabilization procedures, indicated in the para-
graph 3 (button FN).
When the machine is in the truck bed, fi x it to the lorry bed eyes bolts, by means of 4
M20 turnbuckles as in Fig. 1.6 and fi x the boom and jib using one belt like showed in
Fig. 1.6a.
Fig. 1.6
Fig. 1.6a
