5.13. SAFETY DEVICES CHECK
On the machine are installed some safety devices that need a periodical check and
maintenance.
MECHANICAL CHECK OF MICROSWITCHES AND SENSORS
For every microswitch, check:
1) the integrity of the microswitch head and clean it from dirt
2) the right tighness on the fi xing screws
3) the right elettrical connection (by plug or wires)
On board are installed the following safety microswitches:
- n°4 microswitches to detect the stabilizer on the ground (Fig. 12 - A)
- n°4 microswitches to detect the confi guration of the stabilizer, large or narrow (Fig. 12 - B)
- n°4 microswtiches to detect the stabilizers pins (Fig. 12-C)

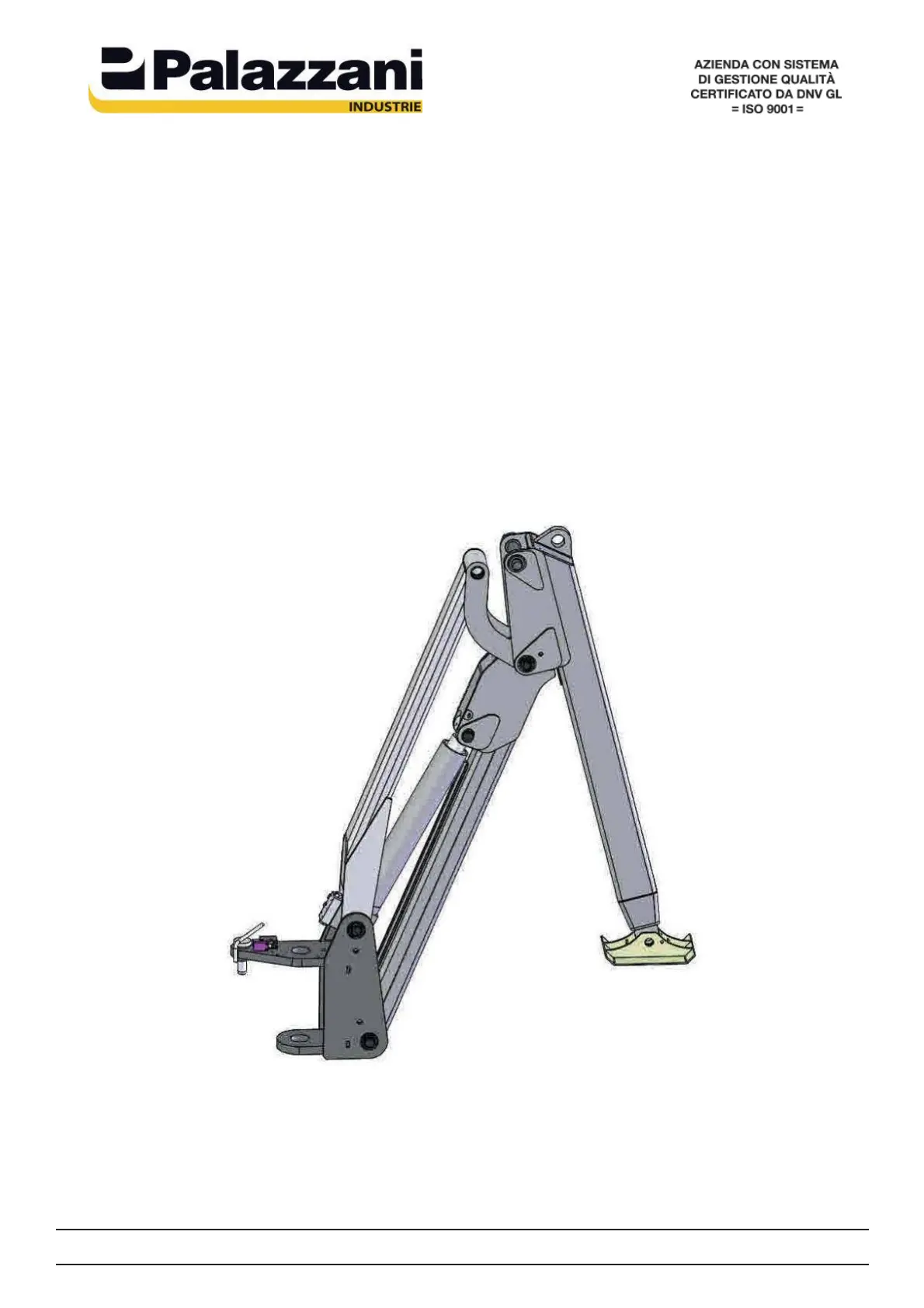

Fig. 5.12
