Wear on the side chain
This wear is caused by improper interaction with the chain pulleys or guide elements side.
If the consumption over the heads of pins exceed 25% of the projection of rewriting or on
the outside of the plate more than 20% of the thickness (see Fig. 6.14), the chain must be
replaced before applying the new, the cause of this malfunction must be sought.
Consumption rate head pin up / r x 100 < 25%
Consumption percentage edge plate us / s x 100 < 20%
These checks should be performed every 3 months.
After four years of the chains must be dismantled and inspected in the attacks on the arm and
in areas not normally accessible and, if damaged, replace.

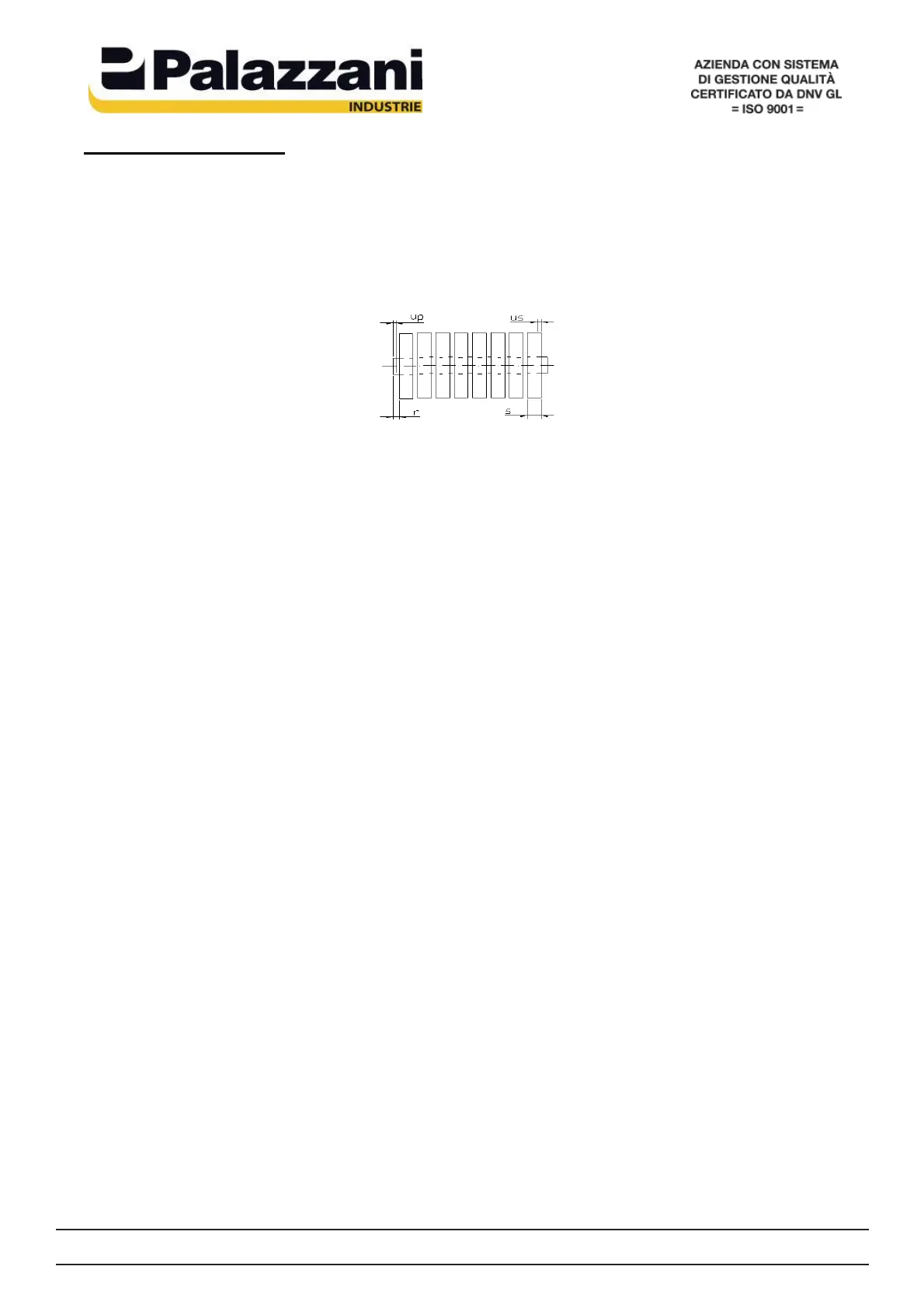

Fig. 5.11
