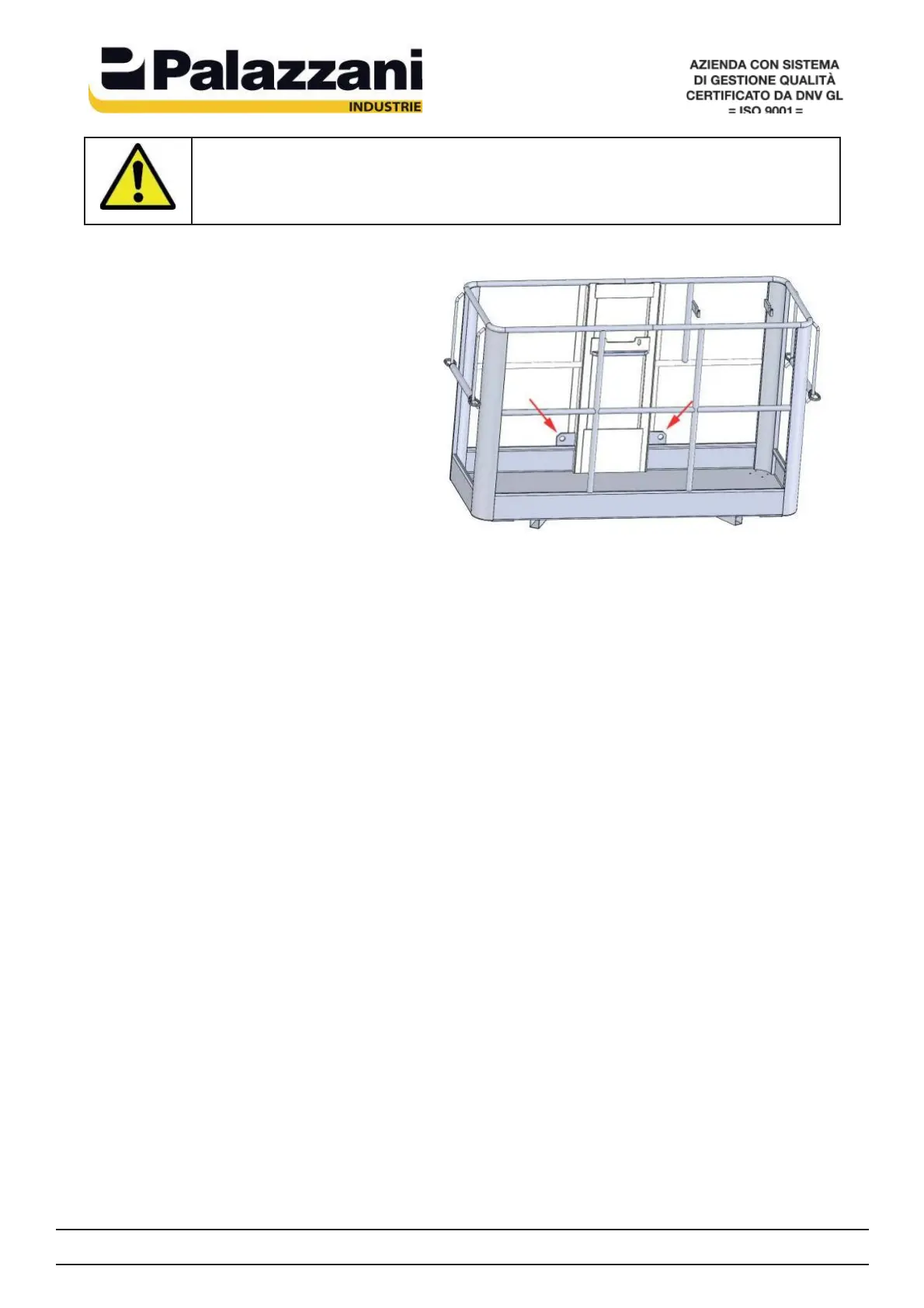

Fig 3.12
DANGER
Fix the safety belt to the anchor rings (with a rope not longer than 1 meter)
before performing any movement (Fig. 3.12).
Act on the choosen control panel
levers, to perform the movements,
avoiding sudden manoeuvres.
First lift the fi rst boom around 45°
and than open the jib to get away
from the boom; then you can procede
with turntable rotation and telescopic
extensions.
Do not make abrupt manoeuvres or sudden inversions in movements to not counterblow
the cage.
The more the telescopic are extended the lower must be the transfer.
To go back to rest position, retract the extension completely, close the jib, straighten
the cage eventually rotated, put the chassis on axle rotating the turntable and lower
with the fi rst boom until the green light switch on (Fig. 3.9).
The above mentioned green light activates only when the booms are:
completely retracted, on the longitudinal axle in respect to the chassis towards the
diesel engine. From this moment it is possible to lift the stabilisers selecting the stabilisers
symbol with the key Fig. 3.1 part 2 and proceding as described in the dedicated paragraph.
