Pag. 57OM3109_GB

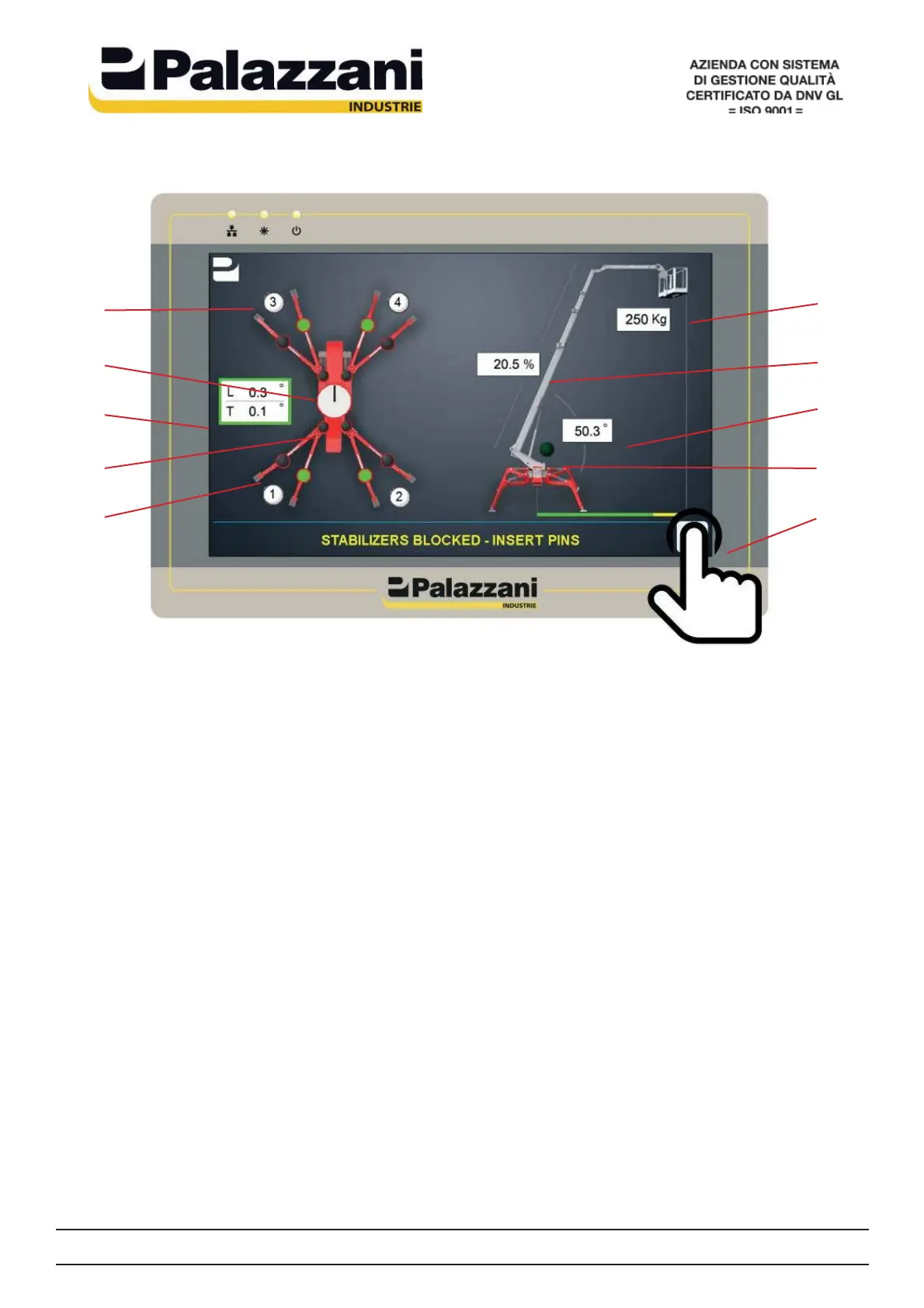

Fig. 3.16
4
8
1
2
3
5
6
7
9
10
This page shows a lot of informations, infact from this page you can understand:
1) If the stabilizers pressure on the ground is correct
2) The position of the boom on 360°
3) The chassis angles (green is the chassis level is good)
4) If the stabilizers pins are inserted
5) If the stabilizers confi guration is large or narrow
6) The weight in the basket
7) The boom extention in percentange
8) The boom angle
9) In the green lamp for the stabilizers mouvements on the turntable is turned on.
10) Page change
The botton in the lower right corner pos. 10 Fig. 3.16 opens the main menù of the sy-
stem (Fig. 3.18) where you will fi nd four different areas:
Test
Diagnostic
Alarms
Preferences
If the platform is working with the boom, the display shows the screen of Fig. 3.16.
