24

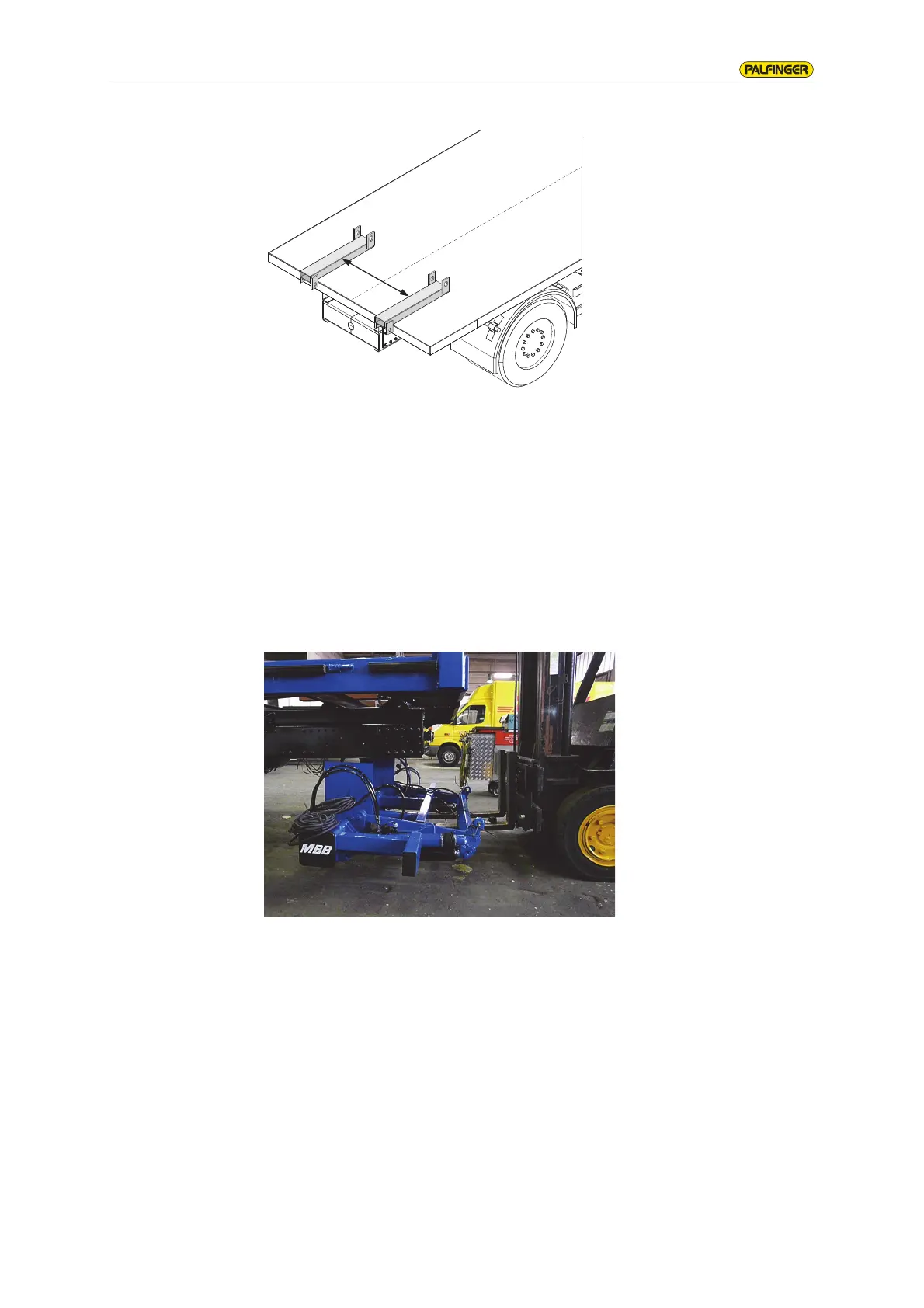

Installing lifting mechanism
 Lay the installation aids on the loading area.
 Align the installation aids on the loading area. Refer to the
dimensions in the general assembly diagram.
 Securely fix the installation aids to the vehicle chassis with, for
example, screw clamps.
7.1.2 Positioning lifting mechanism under the vehicle
 Raise the lifting mechanism with suitable lifting equipment such
as a forklift truck or trolley jacks, for example.
 Carefully position the lifting mechanism under the vehicle.
 Detach the cables and hoses and feed them through the
openings provided in the vehicle chassis.
 Carefully raise the lifting mechanism and move it into the
installation position.
 Maintain the installation position with the lifting equipment until
the lifting mechanism is finally fixed to the vehicle chassis.
