25
Installing lifting mechanism
7.1.3 Bolting the lifting mechanism to the installation aid
Make sure that the lifting mechanism is in its final installation
position.
It may be necessary, for example if a sealing system is present,
to attach spacers to ensure correct spacing between the control
rod and vehicle chassis.
Secure the lifting mechanism with screw clamps to the vehicle
chassis.
Lay the cables and hoses under the vehicle chassis.

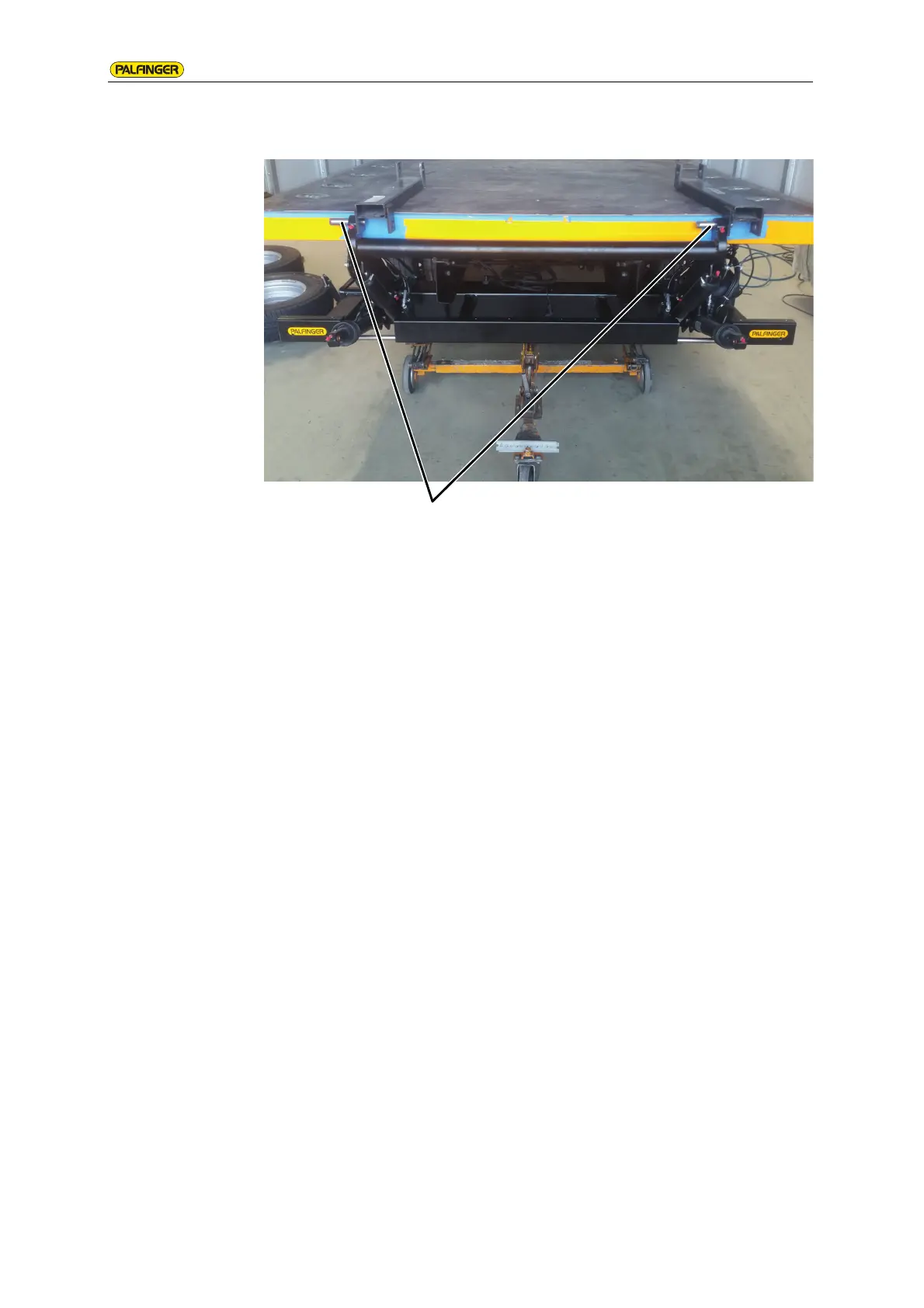

Bolt the lifting mechanism to the installation aid (1) and check the
alignment to the vehicle body. The control rod must be lie flush
on both sides of the rear cross-member.
