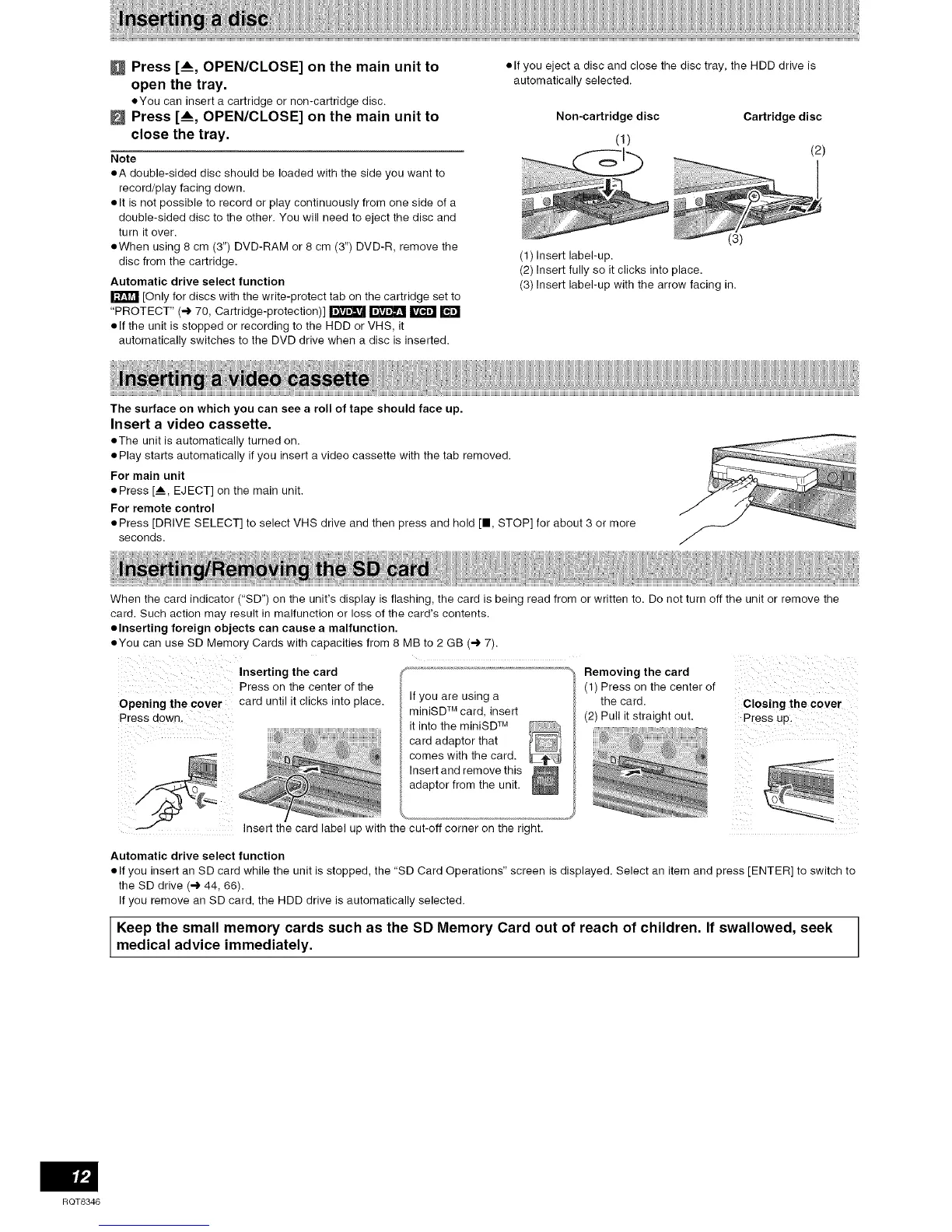

Press [__, OPEN/CLOSE] on the main unit to
open the tray.
eYed can insert a cartridge or non-cartridge disc.
Press [__, OPEN/CLOSE] on the main unit to
close the tray.
Note
oA double-sided disc should be loaded with the side you want to
record/play facing down.
olt is not possible to record or play continuously from one side of a
double-sided disc to the other. You will need to eject the disc and
turn it over.
oWhen using 8 cm (3") DVD-RAM or 8 cm (3") DVD-R, remove the
disc from the cartridge.
Automatic drive select function
[Only for discs with the write-protect tab on the cartridge set to
"PROTECT" (4 70, Cartridge-protection)] _ _ _
elf the unit is stopped or recording to the HDD or VHS, it
automatically switches to the DVD drive when a disc is inserted.
elf you eject a disc and close the disc tray, the HDD drive is
automatically selected.
Non-cartridge disc Cartridge disc
(1)
(2)
(3)
(1) Insert label-up.
(2) Insert fully so it clicks into place.
(3) Insert label-up with the arrow facing in.
The surface on which you can see a roll of tape should face up.
Insert a video cassette.
oThe unit is automatically turned on.
• Play starts automatically if you insert a video cassette with the tab removed.
For main unit
oPress [_, EJECT] on the main unit.
For remote control
• Press [DRIVE SELECT] to select VHS drive and then press and hold [i, STOP] for about 3 or more
seconds.
When the card indicator CSD ") on the unit's display is flashing, the card is being read from or written to. Do not turn off the unit or remove the
card. Such action may result in malfunction or loss of the card's contents.
• Inserting foreign objects can cause a malfunction.
oYou can use SD Memory Cards with capacities from 8 MB to 2 GB (4 7).
Inserting the card
Press on the center of the
Opening 'the cover card until it clicks into place.
Press down,
using a
miniSD TM card, insert
it into the miniSD TM
card adaptor that
comes with the card.
Insert and remove this
adaptor from the unit.
Insert the card label up with the cut-off corner on the right.
Removing the card
(1) Press on the center of
the card.
(2) Pull it straight out.
_iTMiii_iiii_iii_i_i__
Closing the cover
Press up_
Automatic drive select function
• If you insert an SD card while the unit is stopped, the "SD Card Operations" screen is displayed. Select an item and press [ENTER] to switch to
the SD drive (4 44, 66).
If you remove an SD card, the HDD drive is automatically selected.
Keep the small memory cards such as the SD Memory Card out of reach of children. If swallowed, seek
medical advice immediately.
