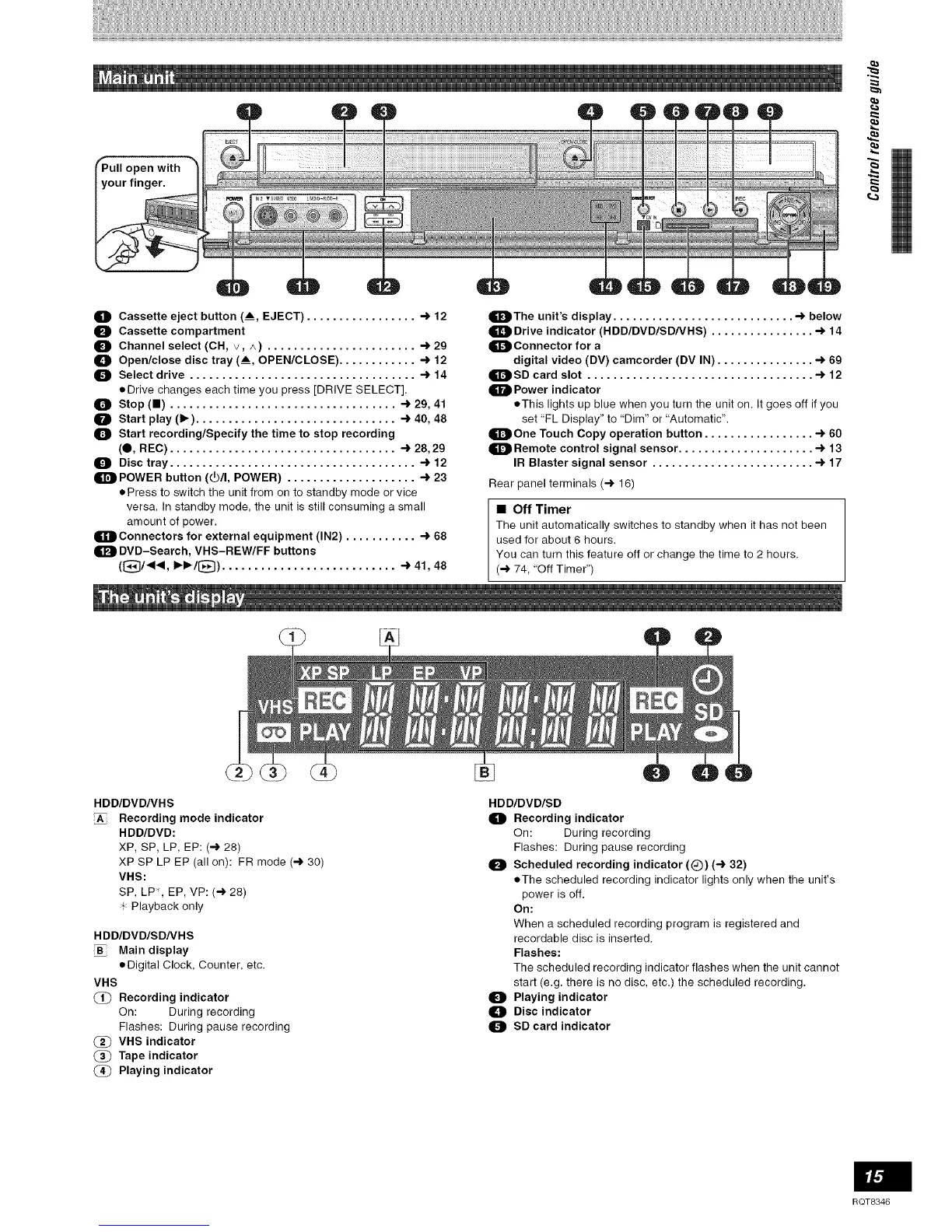

Panasonic DMR-EH75V

0 Cassette eject button (_A, EJECT) ................. 4 12
Cassette compartment
0 Channelselect (CH, v, A) ....................... -)29
0 Open/close disc tray (A_, OPEN/CLOSE) ............ 4 12
0 Select drive ................................... 4 14
oDdve changes each time you press [DRIVE SELECT].
0 Stop (m) ................................... 4 29, 41
0 Start play (1_) ............................... 4 40, 48
0 Start recording/Specify the time to stop recording
(0, REC) ................................... -)28,29
0 Disctray ...................................... 4 12
OPOWER button ((_/I, POWER) .................... 4 23
oPress to switch the unit from on to standby mode or vice
versa. In standby mode, the unit is still consuming a small
amount of power.
OConnectors for external equipment (IN2) ........... 4 68
DVD-Search, VHS-REW/FF buttons
(_]/_1_1, I_1_/_) ........................... 4 41, 48
_The unit's display ............................ 4 below
Drive indicator (H DD/DVD/SD/VHS) ................ 4 14
_Connector for a
digital video (DV) camcorder (DV IN) ............... 4 69
OSD card slot ................................... 4 12
Power indicator
oThis lights up blue when you turn the unit on. It goes off if you
set "FL Display" to "Dim" or "Automatic".
_One Touch Copy operation button ................. 4 60
_Remote control signal sensor ..................... 4 13
IR Blaster signal sensor ......................... 4 17
Rear panel terminals (4 16)
• Off Timer
The unit automatically switches to standby when it has not been
used for about 6 hours.
You can turn this feature off or change the time to 2 hours.
(4 74, "Off Timer")
HDD/DVD/VHS
Recording mode indicator
HDD/DVD:
XP, SP, LP, EP: (4 28)
XP SP LP EP (all on): FR mode (4 30)
VHS:
SP, LP" , EP, VP: (4 28)
Playback only
HDD/DVD/SD/VHS
Main display
• Digital Clock, Counter, etc.
VHS
Recording indicator
On: During recording
Flashes: During pause recording
VHS indicator
Tape indicator
(_ Playing indicator
6 O0
HDD/DVD/SD
0 Recording indicator
On: During recording
Flashes: During pause recording
Scheduled recording indicator (Q) (4 32)
• The scheduled recording indicator lights only when the unit's
power is off.
On:
When a scheduled recording program is registered and
recordable disc is inserted.
Flashes:
The scheduled recording indicator flashes when the unit cannot
start (e.g. there is no disc, etc.) the scheduled recording.
0 Playing indicator
0 Disc indicator
0 SD card indicator
