Panasonic DMR-ES30VEG

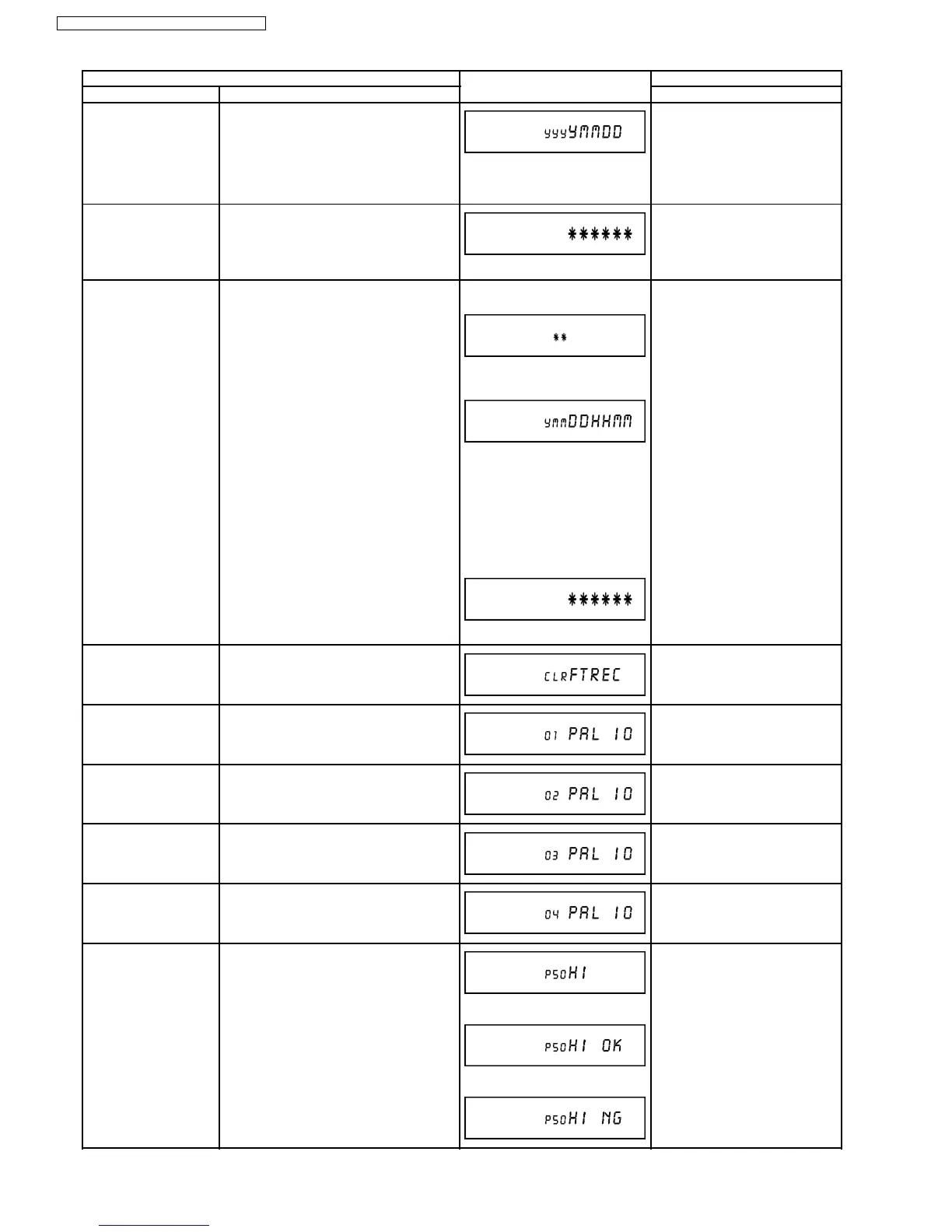

Item FL display Key operation
Mode name Description (Remote controller key)
Production Date Display Display the date when the unit was produced.
YYY: Year
MM: Month
DD: Day
Press [6] [1] in service mode.
Display the accumulated
working time
Display the accumulated unit
ｴ
s working time.
(Indicating unit: Second)
Press [6] [4] in service mode.
Display the Error History Display the Error History stored on the unit. Display reason of error for 5
seconds.
Display the time when the error
has occurred for 5 seconds.
Y: Year
MM: Month
DD: Day
HH: Hour
MM: Minute
Accumulated working time till
occurring of the error is left
displayed.
(Indicating unit: Second)
Press [6] [5] in service mode.
Then press [0] [1] ~ [1] [9], the past
19 error histories are displayed.
Delete the Error History Delete Error History information stored on
the unit.
Press [9] [7] in service mode.
AV4 (V) / AV1 (RGB) I/O
Setting
Set input to AV4(V) and set output to
AV1(RGB) for I/O checking
Press [8] [0] in service mode.
AV2 (Y/C) / AV1 (V) I/O
Setting
Set input to AV2(Y/C) and set output to
AV1(V) for I/O checking
Press [8] [1] in service mode.
AV2 (V) / AV1 (Y/C) I/O
Setting
Set input to AV2(V) and set output to
AV1(Y/C) for I/O checking
Press [8] [2] in service mode.
AV2 (RGB) / AV1 (V) I/O
Setting
Set input to AV2(RGB) and set output to
AV1(V) for I/O checking
Press [8] [3] in service mode.
P50 (H) Output Timer Microprocessor IC7501-22 output
High signal for AV1-pin 10 passing through
inverter (approx. 0V DC at AV1-pin 10).
When OK.
When NG.
Press [8] [4] in service mode.
