6 Operation Instructions
6.1. (DVD) Taking out the Disc from RAM-Drive Unit when the Disc cannot
be ejected by OPEN/CLOSE button
6.1.1. (DVD) Forcible Disc Eject
6.1.1.1. (DVD) When the power can be turned off.
1. Turn off the power and press [STOP], [CH UP] keys on the front panel simultaneously for 5 seconds.
6.1.1.2. (DVD) When the power can not be turned off.
1. Press [POWER] key on the front panel for over 10 seconds to turn off the power forcibly, and press [STOP] [CH UP] keys on
the front panel simultaneously for 5 seconds.
6.1.2. (DVD) When the Forcible Disc Eject can not be done.
1. Turn off the power and pull out AC cord.
2. Remove the Top Case.

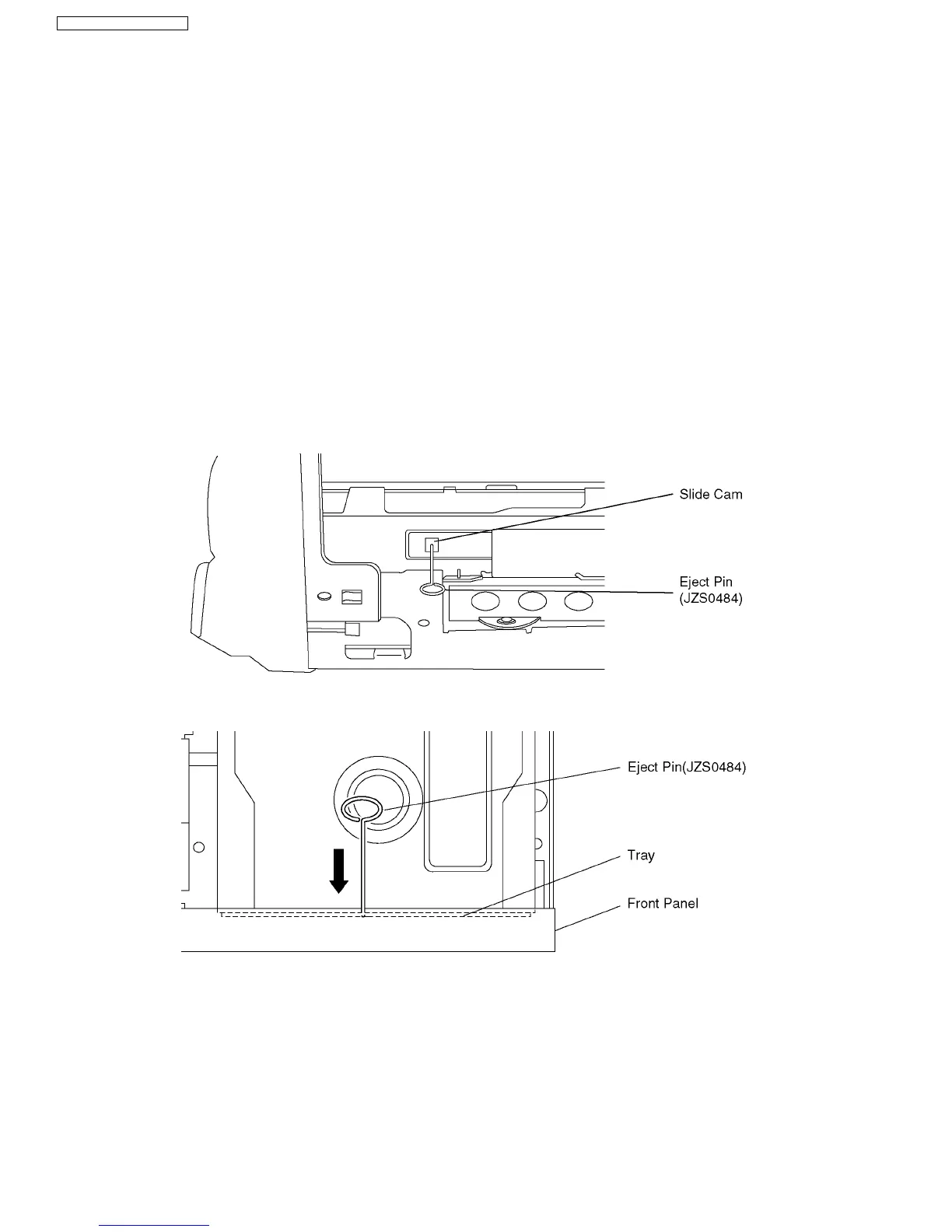

3. Push in SLIDE CAM by Eject Pin(JSJ0484) or minus screw driver (small) to eject tray slightly.
4. Push out Tray by Eject Pin (JZS0484) or minus screw driver (small).
12
DMR-ES35VP / DMR-ES35VPC
