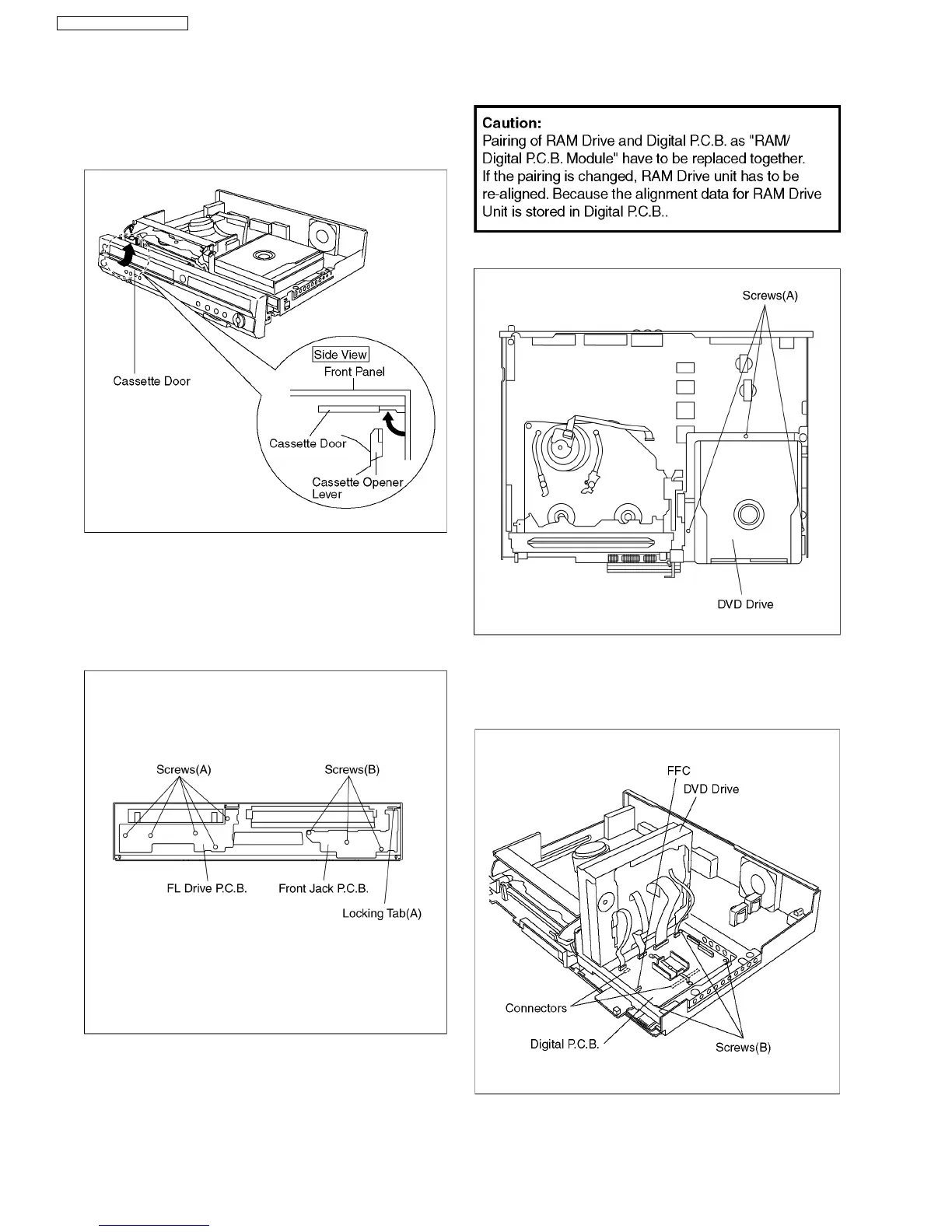

Note:
When attaching Front Panel, in order to hook Cassette
Door Opener Lever to Cassette Door, push up cassette
door in the direction of arrow and insert a front panel.
9.6. Front Jack P.C.B. & FL Drive
P.C.B.
1. Remove 5 screws (A) to remove FL Drive P.C.B.
2. Remove 3 screws (B) and unlock Locking Tab (A) to
remove Front Jack P.C.B.
9.7. RAM / Digital P.C.B. Module
1. Remove 3 Screws (A).
2. With holding DVD drive as below illustration, remove 3
Screws (B) and disconnect FFC.
And lift up Digital P.C.B. slightly so to disconnect
connectors to remove Digital P.C.B..
34
DMR-ES35VP / DMR-ES35VPC
