Panasonic DMR-ES35VP

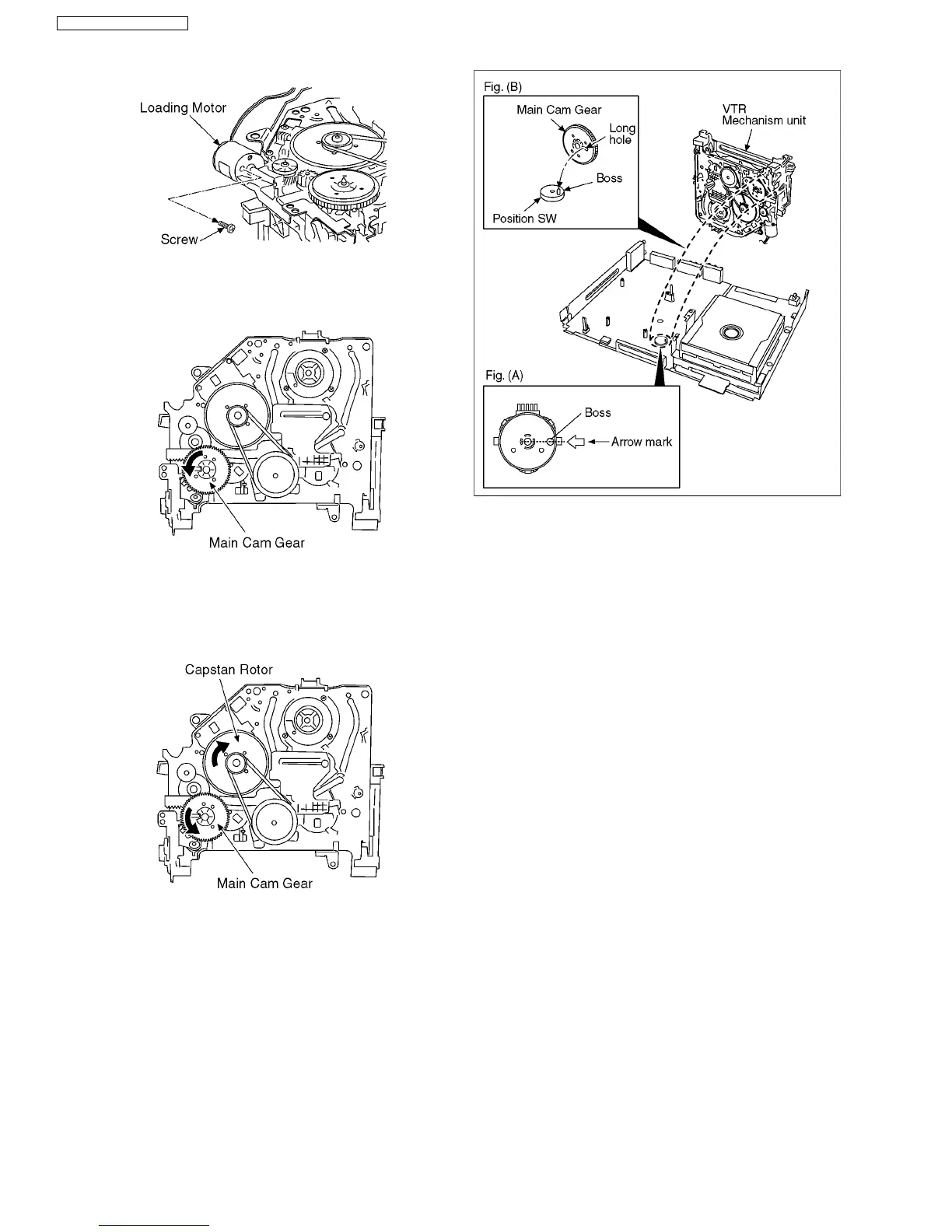

3. Rotate the Main Cam Gear counter-clockwise until just
before the unloading will be completed as shown below. .
4. Rotate the Capstan Motor clockwise to remove the slack
tape as shown below.
5. Rotate the Main Cam Gear counter-clockwise again to
remove the cassette-tape as shown below.
6. Attach Loading Motor and tighten the screw.
7. Set the Position Switch to EJECT POSITION certainly and
attach the mechanism to chassis as shown below.
14
DMR-ES35VP / DMR-ES35VPC
