Connection
When connected to an HDMI compatible unit, you can enjoy high quality, digital video and audio.
≥Before connection, turn off all equipment and read the appropriate operating instructions.
≥Other TV connections (> 14)
Required setting:
Set “HDMI Audio Output” to “On” (> 74).
(The default setting is “On”.)
≥ The HDMI connection supports VIERA Link “HDAVI Control” (> 58).

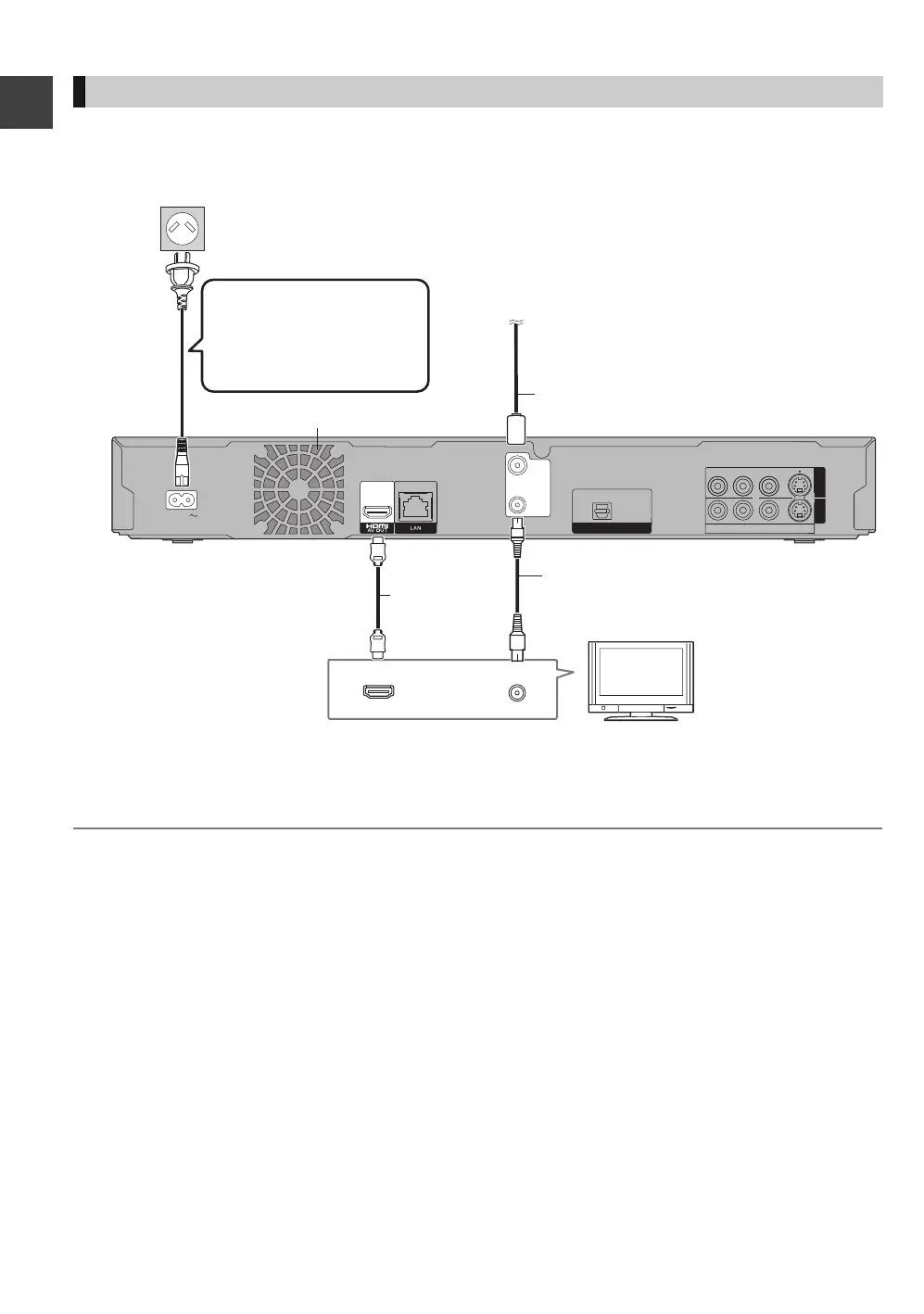

Basic connections
AV OUTAV I N
OPTICAL
R-AUDIO-L
VIDEO S VIDEO
10BASE-T/
100BASE-TX
AC IN
RF IN
RF OUT
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
VHF/UHF
RF IN
HDMI IN
To the aerial
TV’s rear panel
Aerial cable
RF coaxial cable
(supplied)
This unit’s rear panel
To household mains socket
(AC 220 to 240 V, 50 Hz)
Cooling fan
HDMI cable
AC mains lead
(supplied)
≥Connect only after all other
connections are complete.
