Connection
≥Connect to terminals of the same colour.
≥Connect to terminals of the same colour.

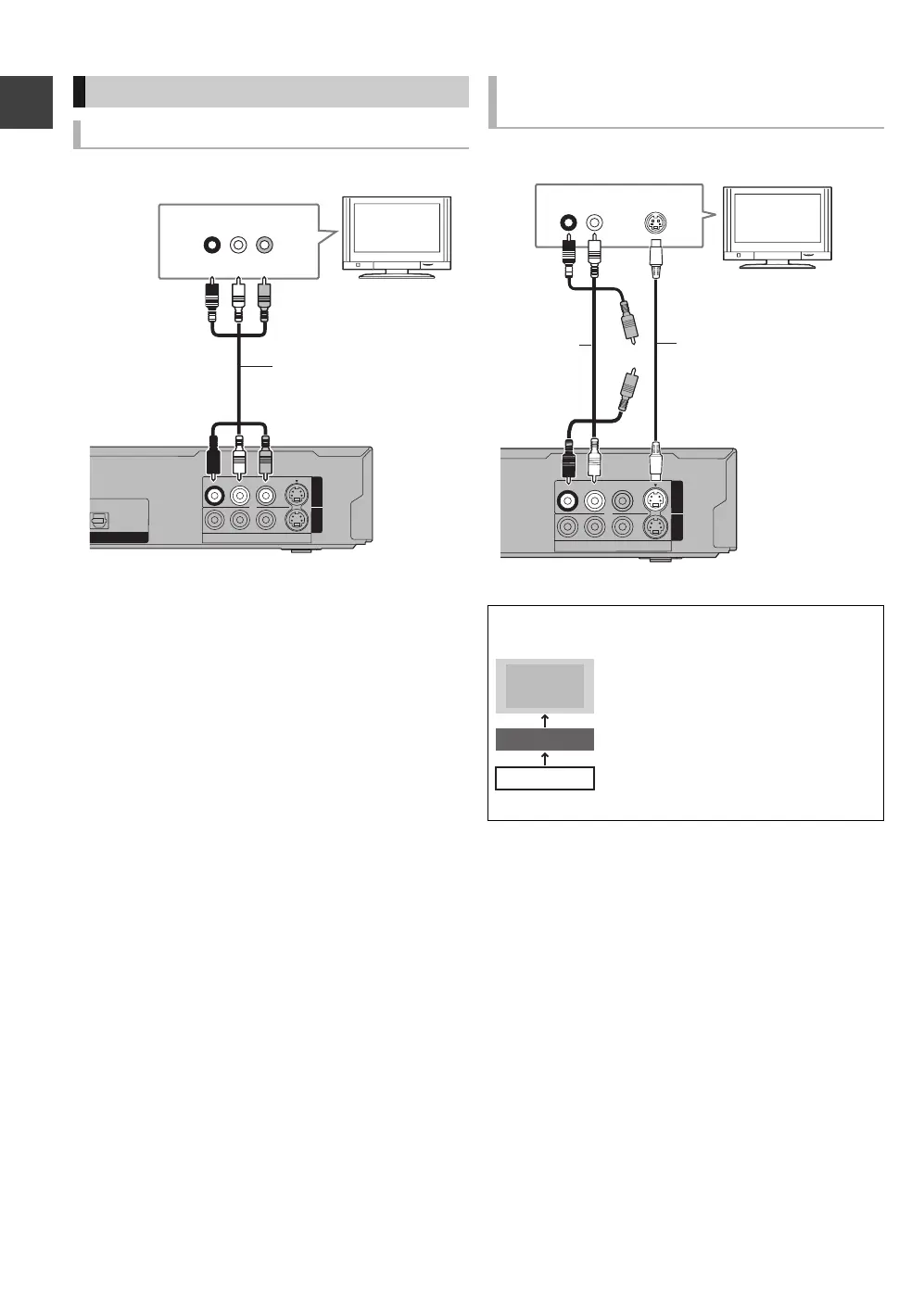

Other TV connections
AUDIO/VIDEO terminals
AV OUTAV I N
OPTICAL
R-AUDIO-L VIDEO S VIDEO
GITAL AUDIO OUT
CM/BITSTREAM)
AUDIO IN VIDEO IN
LR
This unit’s rear panel
Audio/Video cable
(supplied)
TV’s rear panel
AUDIO/VIDEO and S VIDEO
terminals
Connect the unit directly to the TV
If you connect the unit through an AV
selector or VCR to the TV, video signal
will be affected by copyright protection
systems and the picture may not be
shown correctly.
≥When connecting to a TV with a
built-in VCR
Connect to the input terminals on the
TV side if there are both TV and VCR
input terminals.
AV O UTAV I N
R-AUDIO-L VIDEO S VIDEO
AUDIO IN
R L
S VIDEO
IN
Audio/
Video cable
(supplied)
TV’s rear panel
This unit’s rear
panel
S Video
cable
Television
VCR
This unit
DO NOT
