Panasonic DMR-XW385

Getting started
VQT3F56
15

≥ When connecting a TV with an HDMI OUT terminal, set “HDMI Audio
Output” to “Off” (> 74).
≥ When you use the optical digital audio cable, insert the tip correctly into
the terminal.

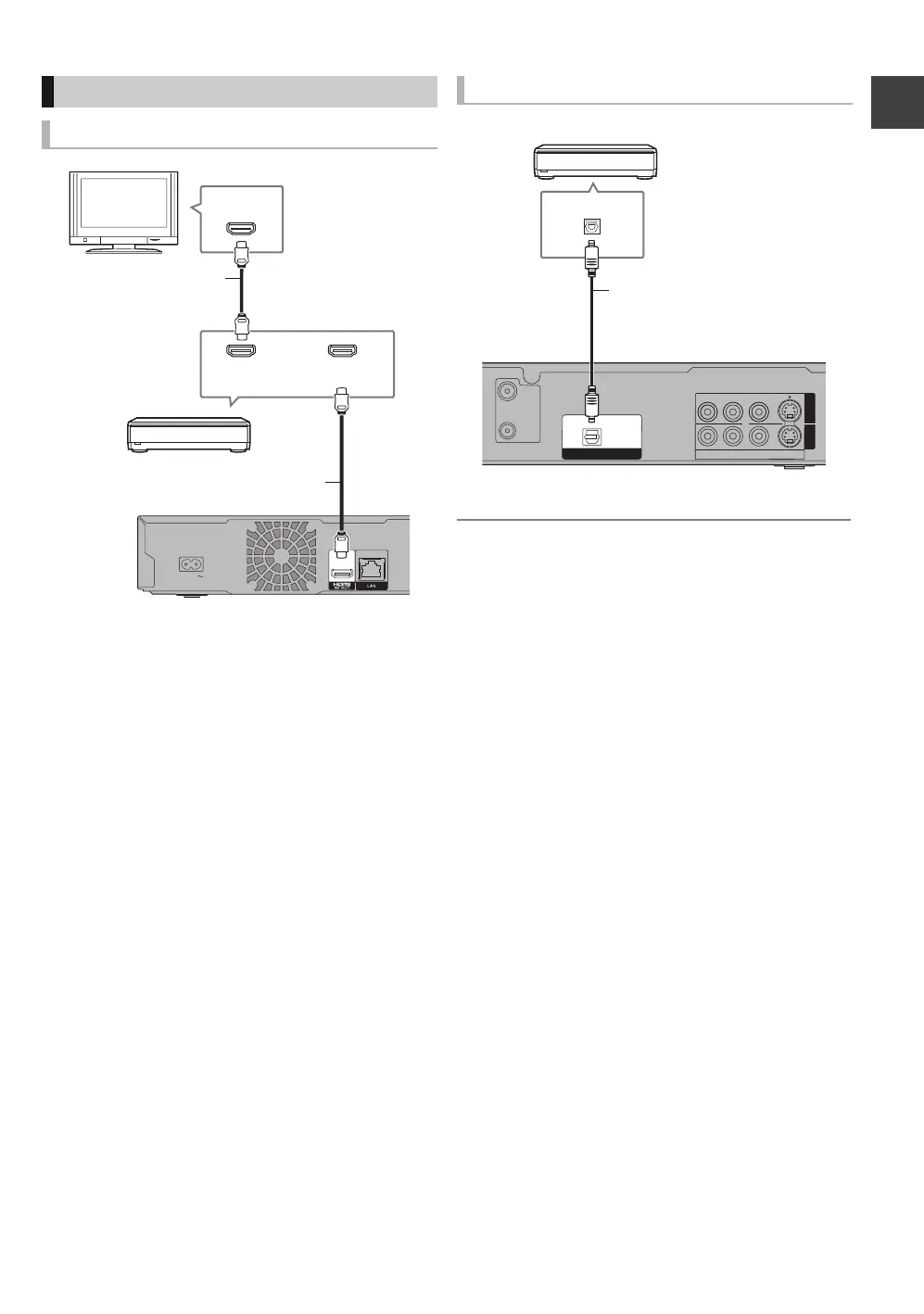

Amplifier connections
HDMI AV OUT terminal
10BASE-T/
100BASE-TX
AC IN
HDMI IN
HDMI IN
HDMI OUT
This unit’s rear panel
HDMI cable
Amplifier’s rear
panel
TV’s rear panel
HDMI cable
DIGITAL AUDIO OUT terminal
AV OUTAV I N
R-AUDIO-L VIDEO S VIDEO
RF INRF IN
RF OUTRF OUT
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
OPTICAL
OPTICAL IN
This unit’s rear panel
Amplifier’s rear panel
Optical digital audio
cable
