Panasonic DP-C405

236
FEB 2008Ver. 1.1
DP-C405/C305/C265
SCN PCB - CN710
CN709-15 nORGSEN
SC PCB
CN51-1
Original Size Sensor Signal
SNC PCB

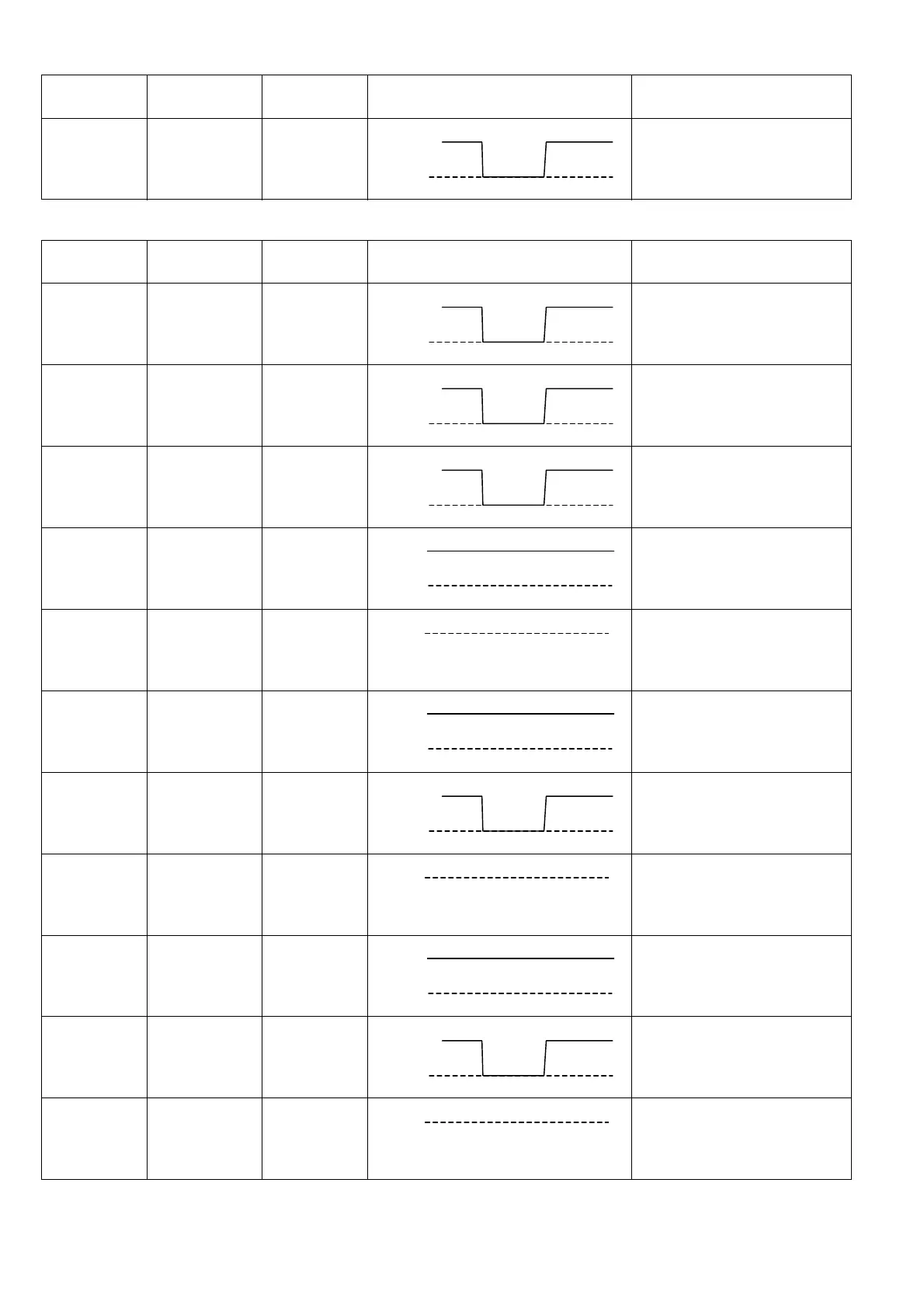

Pin No.
Signal Name Destination Signal Waveform Function
CN710-1 nORSIZIN0
Original Size
Sensor
Original Size 0 Sensor
CN710-2 nORSIZIN1
Original Size
Sensor
Original Size 1 Sensor
CN710-3 nORSIZIN2
Original Size
Sensor
Original Size 2 Sensor
CN710-4 +5TV
Original Size
Sensor
+5V DC Power Supply
CN710-5 GND
Original Size
Sensor
Ground
CN710-6 +5TV
Original Size
Sensor
+5V DC Power Supply
CN710-7 nORSIZIN3
Original Size
Sensor
Original Size 3 Sensor
CN710-8 GND
Original Size
Sensor
Ground
CN710-9 +5TV
Original Size
Sensor
+5V DC Power Supply
CN710-10 nORSIZIN4
Original Size
Sensor
Original Size 4 Sensor
CN710-11 GND
Original Size
Sensor
Ground
SNC PCB
Pin No.
Signal Name Destination Signal Waveform Function
+5V
0V
+5V
0V
+5V
0V
+5V
0V
+5V
0V
0V
+5V
0V
+5V
0V
0V
+5V
0V
+5V
0V
0V
