DP-C405/C305/C265
PNL1 PCB - CN7
CN5-5 nLPOW1
SC PCB
CN58-11
+3.3V Power Supply
Output Control
CN5-6 nSLPKY
SC PCB
CN58-10
Sleeve Return Signal
CN5-7 nLPOW2
SC PCB
CN58-9
+5V Power Supply Output
Control
CN5-8 nPNLRST
SC PCB
CN58-8
Reset for PNL PCB
CN5-9 PNLTXD
SC PCB
CN58-7
PNL PCB TXD Data
CN5-10 PNLRXD
SC PCB
CN58-6
PNL PCB RXD Data
CN5-11 +5V
SC PCB
CN58-5
+5V DC Power Supply
CN5-12 GND
SC PCB
CN58-4
Ground
CN5-13 +5VP
SC PCB
CN58-3
+5V DC Power Supply
CN5-14 GND
SC PCB
CN58-2
Ground
CN5-15 +24V
SC PCB
CN58-1
+24V DC Power Supply
PNL1 PCB
Pin No.

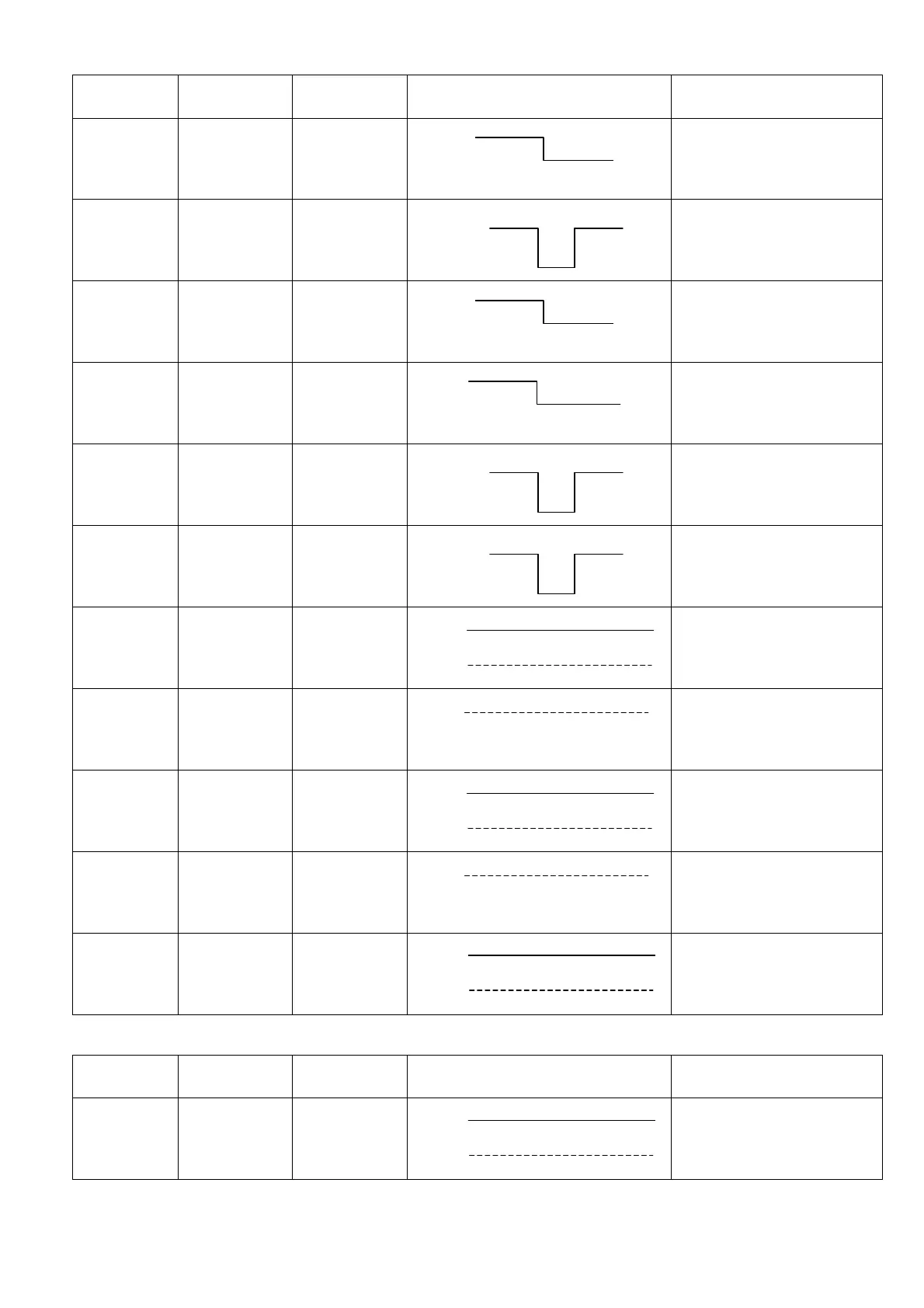

Signal Name Destination Signal Waveform Function
CN7-1 VINV INV Inverter Power Supply
PNL1 PCB
Pin No.
Signal Name Destination Signal Waveform Function
5V
ON
0V
3.3V
PULSE 0V
5V
ON
0V
RESET3.3V
0V
3.3V
PULSE 0V
3.3V
PULSE 0V
+5V
0V
0V
+5V
0V
0V
+24V
0V
+24V
0V
