TEST AND MEASUREMENT
Issue 1 Section 6 MCUK990801C8
Revision 0 – 44 – Service Manual
10. At the Channel box press F6 to program data.

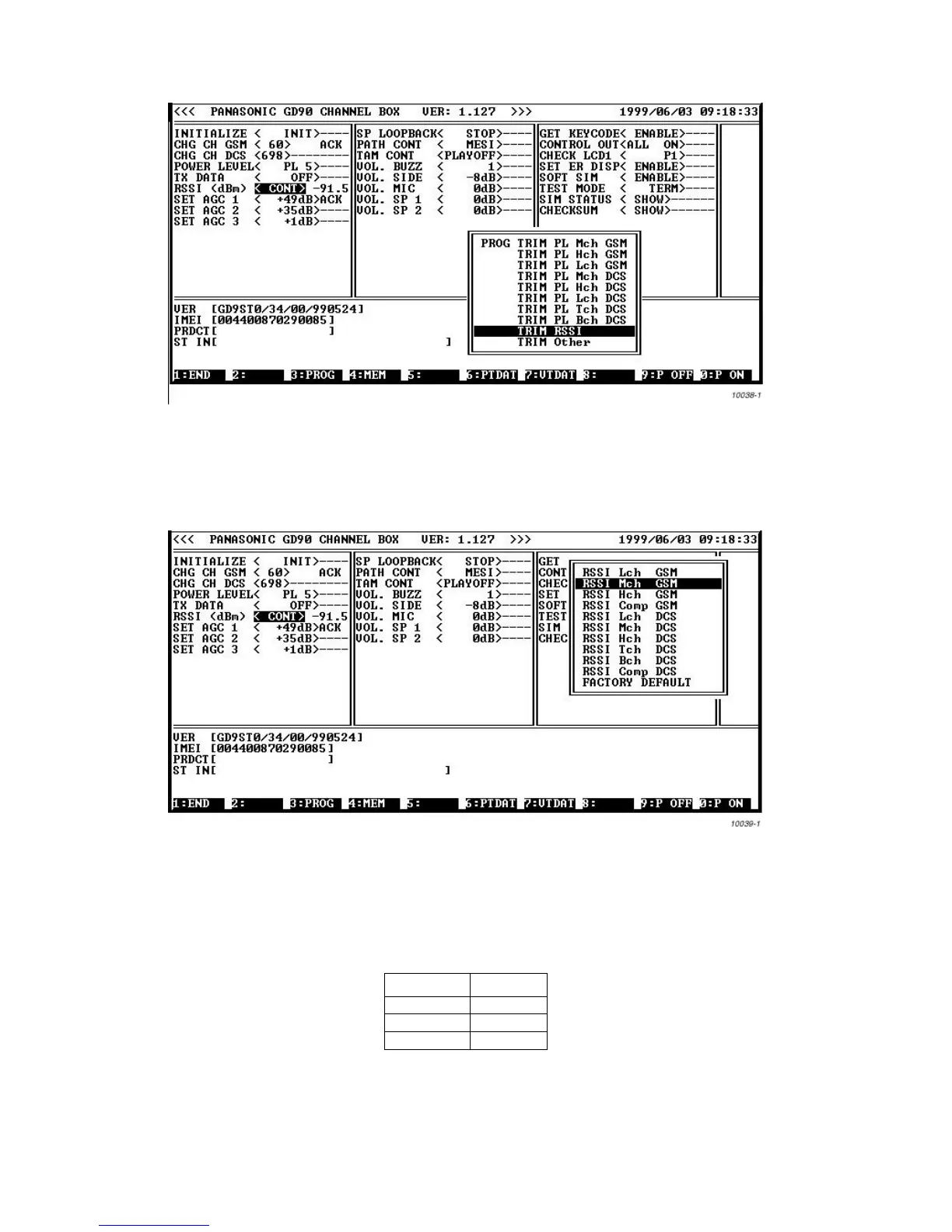

Figure 6.22: RSSI reading 3
11. Select TRIM RSSI and press ENTER.
12. Make the following calculation:
RSSI offset value (from step 8) + reading noted in step 6. Enter the result into RSSI COMP field for example: 10+ 5 = 15
.
Figure 6.23: RSSI reading 4
13. Press ENTER.
14. Press ESC.
15. Measure the RSSI level again by highlighting the RSSI dBm field and press ENTER.
16. Repeat steps 6 to 15 for both LOW/BOTTOM and HIGH/TOP channels.
Channel GSM
Low/Bottom 1
Mch 60
High/Top 115
