TEST AND MEASUREMENT
MCUK990801C8 Section 6 Issue 1
Service Manual – 43 – Revision 0
7. At the Channel box press F7 to view data.

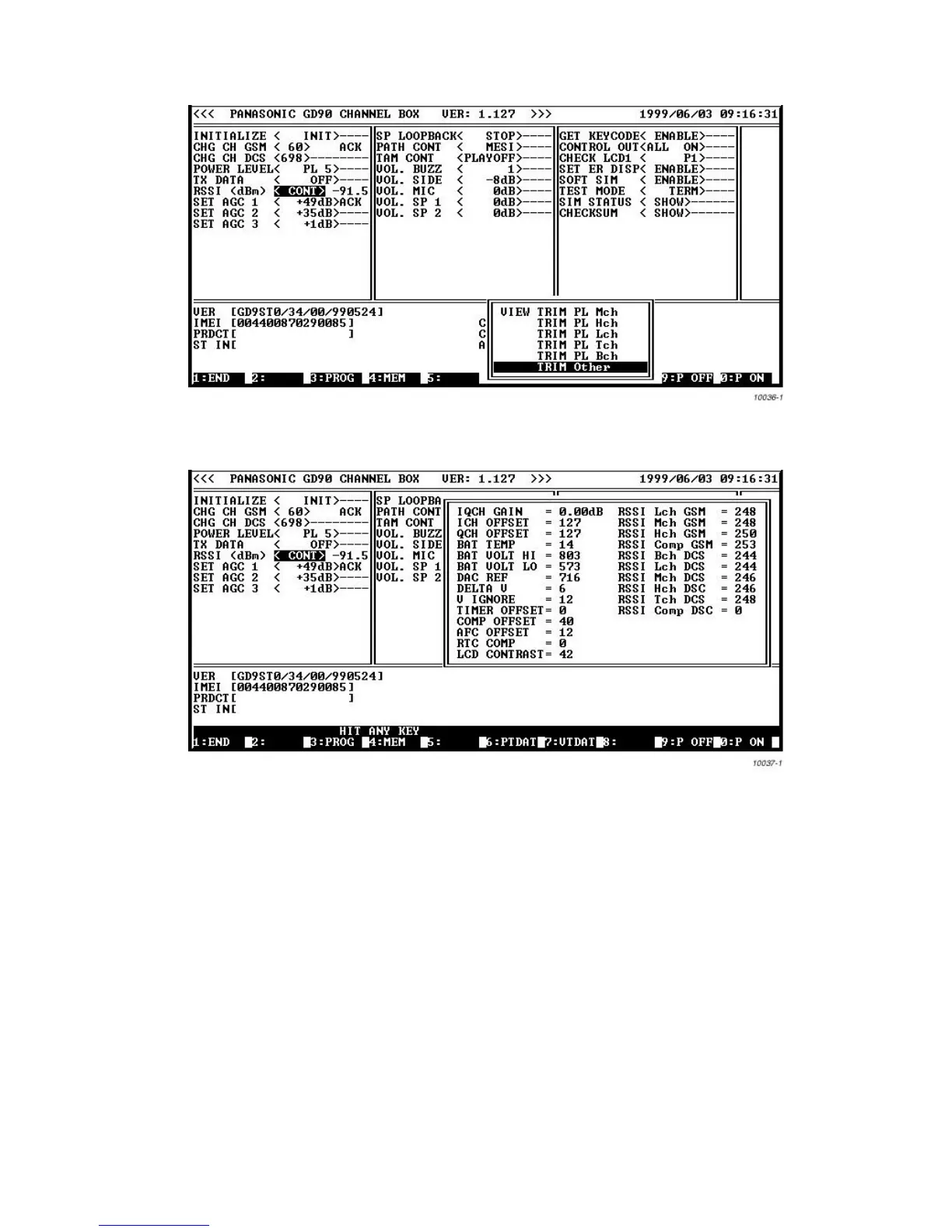

Figure 6.20: RSSI reading 1
8. Select TRIM OTHER and make a note of the RSSI COMP GSM reading.
Figure 6.21: RSSI reading 2
9. Press ESC.
