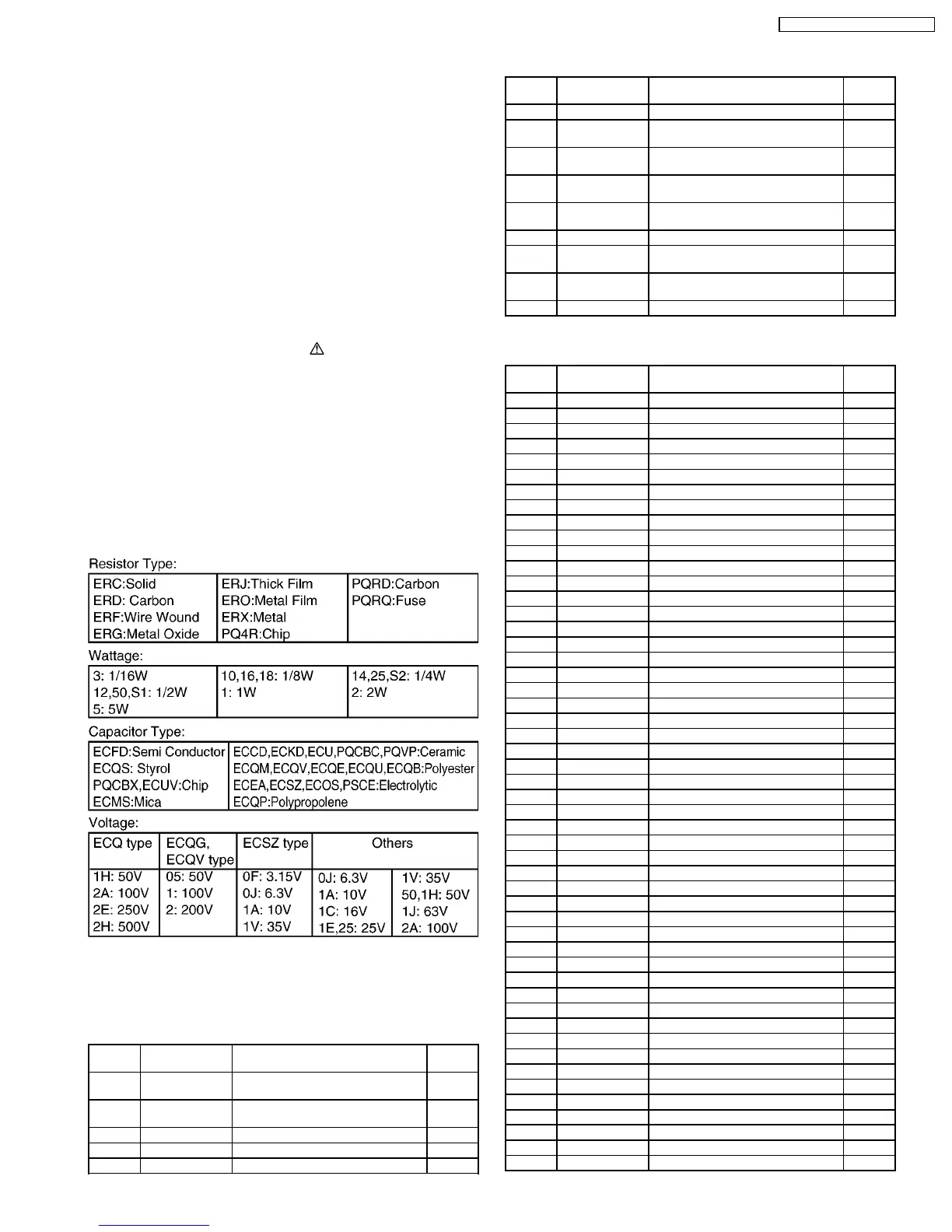

Panasonic KX-TCD705RUM - 13 Replacement Parts List; Base Unit

This replacement parts list is for KX-TCD705RUM/ KX-
TCD705RUS only.
Notes:
1. The marking (RTL) indicates that the Retention Time is
limited for this item.
After the discontinuation of this assembly in production, the
item will continue to be available for a specific period of
time. The retention period of availability is dependent on the
type of assembly, and in accordance with the laws
governing parts and product retention.
After the end of this period, the assembly will no longer be
available.
2. Important safety notice
Components identified by
mark have special
characteristics important for safety. When replacing any of
these components, use only manufacture´s specified parts.
3. The S mark indicates service standard parts and may differ
from production parts.
4. RESISTORS & CAPACITORS
Unless otherwise specified;
All resistors are in ohms (Ω) K=1000Ω, M=1000kΩ
All capacitors are in MICRO FARADS (µF) P=µµF
*Type & Wattage of Resistor
13.1. Base Unit
13.1.1. CABINET AND ELECTRICAL
PARTS
Ref.
No.
Part No. Part Name & Description Remarks
1 PQYF10191Z3 LOWER CABINET (for KX-
TCD705RUS)
S
1 PQYF10191Z4 LOWER CABINET (for KX-
TCD705RUM)
S
2 PQSA10118Z ANTENNA
3 PQBC10324Z1 PAGE BUTTON S
4 PQGT14735Z NAME LABEL
Ref.
No.
Part No. Part Name & Description Remarks
5 PQJT10173Z CHARGE TERMINAL
6 PQKE10121Z4 CHARGE CASE (for KX-
TCD705RUS)
S
6 PQKE10121Z5 CHARGE CASE (for KX-
TCD705RUM)
S
7 PQKE10122Z4 CHARGE CASE HOLDER (for KX-
TCD705RUS)
S
7 PQKE10122Z5 CHARGE CASE HOLDER (for KX-
TCD705RUM)
S
8 PQKE10123Z1 CHARGER TERMINAL CASE S
9 PQKM10473Y4 UPPER CABINET (for KX-
TCD705RUS)
S
9 PQKM10473Y5 UPPER CABINET (for KX-
TCD705RUM)
S
10 PQUS10266Z CRICK SPRING
13.1.2. MAIN P.C.BOARD PARTS
Ref.
No.
Part No. Part Name & Description Remarks
PCB1 PQWP1D700RUH MAIN P.C.BOARD ASS´Y (RTL)
(ICS)
IC2 PQVIPC357CN IC
IC3 PQVILMV321M5 IC
IC5 PQWICD700-7H IC
IC7 PQVILM1117MP IC
IC8 PQVI6725XL15 IC
IC9 PQVIT2432WM6 IC
(TRANSISTORS)
T6 PQVTBC81725T TRANSISTOR(SI) S
T7 PQVTBC80725T TRANSISTOR(SI) S
T8 2SA1807 TRANSISTOR(SI)
T9 PQVTBF822T7 TRANSISTOR(SI)
T10 PQVTBC847BT1 TRANSISTOR(SI)
T11 PQVTBC847BT1 TRANSISTOR(SI)
T13 2SD874A TRANSISTOR(SI)
(DIODES)
D2 PQVDBZV55C02 DIODE(SI)
D3 PQVDBZV55C02 DIODE(SI)
D4 MA111 DIODE(SI)
D5 MA111 DIODE(SI)
D7 PQVDBZV55C47 DIODE(SI) S
D8 PQVDS1ZB60F1 DIODE(SI)
D9 PQVDBZV55C47 DIODE(SI) S
D10 MA1Z300 DIODE(SI)
D16 MA111 DIODE(SI)
(JACK SOCKETS)
J1 PQJJ1T028Z TEL JACK
J2 PQJJ1B007Z CONNECTOR DC JACK
(OTHERS)
E1 PQEFBKSS1201 BUZZER
K1 EVQ21005G TACT SWITCH
SA3 PQVDDSS301L SURGE ABSORBER
X1 PQVCF1036N4Z CRYSTAL OSCILLATOR
(RESISTORS)
R2 ERJ3GEYJ391 390
R3 PQ4R18XJ153 15k
R4 ERJ3GEYJ103 10k
R5 ERJ3GEYJ223 22k
R6 ERJ3GEYJ102 1k
R8 ERJ3GEYJ222 2.2k
R9 ERJ3GEYJ473 47k
R10 ERJ3GEYJ473 47k
R13 PQ4R18XJ820 82
R15 ERJ3GEYJ391 390
R16 ERJ3GEYJ102 1k
R17 ERJ1WYJ111 110
R18 ERJ1WYJ111 110
R19 ERJ3GEYJ474 470k
R20 ERJ3GEYJ224 220k
R21 ERJ3GEYJ474 470k
