2.8 Connection of Doorphones, Door Openers, External Sensors, and External Relays
Installation Manual 123

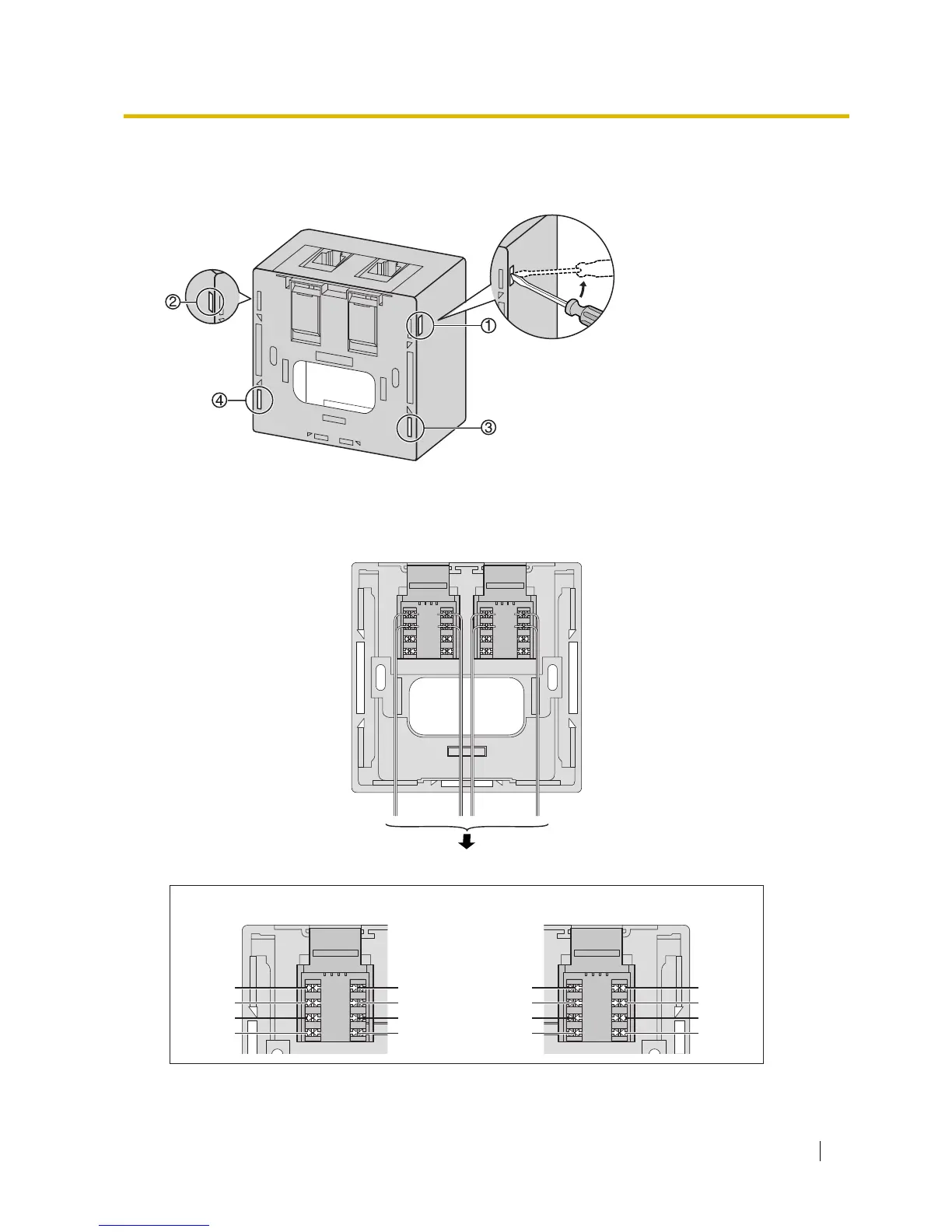

Connection of Doorphones to the DPH4 Card with RJ45 Connectors
1. Unlatch the cover of the terminal box by inserting a flathead screwdriver into the openings and levering
the cover open. Follow the order indicated by the numbers 1 to 4.
2. Connect the wires of doorphones to the terminal box.
For details about pin assignments for the DPH4 card, refer to "2.5.1 DPH4 Card (KX-TDA3161)".
Terminal Box
(included with the card)
DP2
Reserved
com2
ReservedReserved
Reserved
DP1
com1 DP4
Reserved
Reserved
com4
Reserved
Reserved
DP3
com3
To doorphones
Pin Assignments for Terminal Box
