Panasonic KX-TDA15

2.2 Installation of the Hybrid IP-PBX
48 Installation Manual

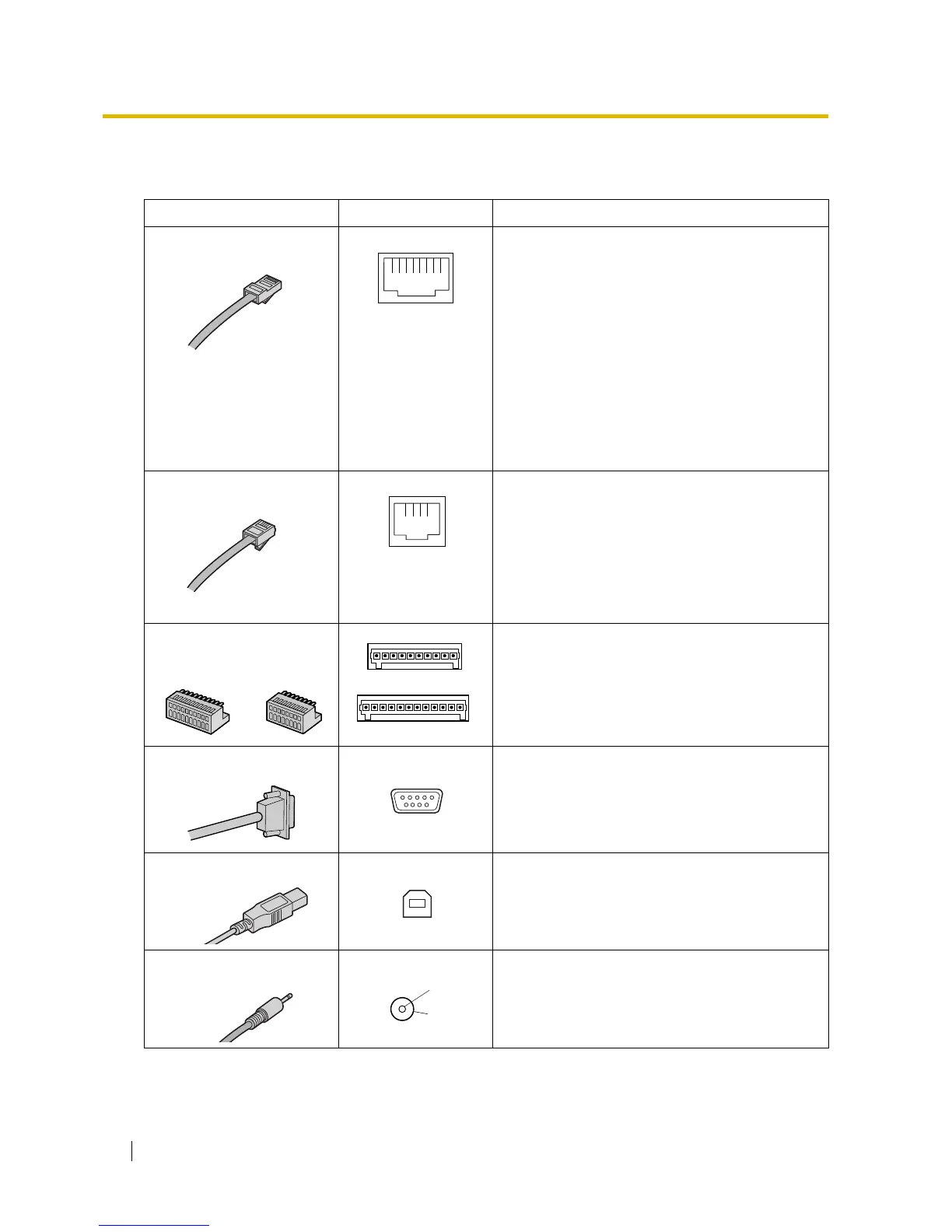

2.2.7 Types of Connectors
Connector Type Pin Number Used for
(Twisted pair cable)
• DPH4 (KX-TDA3161NE)
• DPH2 (KX-TDA3162)
• DLC8 (KX-TDA3172NE)
• SLC8 (KX-TDA3174NE)
• LCOT2 (KX-TDA3183)
• BRI2 (KX-TDA3280)
• BRI1 (KX-TDA3283)
• SIP-GW4 (KX-TDA3450)
• IP-EXT4 (KX-TDA3470)
• IP-GW4 (KX-TDA3480)
• Super Hybrid Ports (Main Board)
(Twisted pair cable)
• DPH4 (KX-TDA3161)
• DLC8 (KX-TDA3172)
• SLC8 (KX-TDA3174)
• DPH4 (KX-TDA3161)
• DPH2 (KX-TDA3162)
• Main Board
• Main Board
• Main Board (Pager port, MOH port)
RJ45
1 8
RJ11
4 1
10-pin
Terminal Block
8-pin
Terminal Block
81
101
RS-232C
6 9
1 5
USB
2
3
1
4
Mini Plug
+
-
