2.5 Information about the Other Cards
Installation Manual 79
2.5.2 DPH2 Card (KX-TDA3162)
Function
2-port doorphone card for 2 German-type doorphones, 2 door openers, 4 external sensors, and 4 external
relays.
Accessories and User-supplied Items
User-supplied (not included): Copper wire
Note
For details about connection to doorphones, door openers, external sensors, and external relays, refer
to "2.8.1 Connection of Doorphones, Door Openers, External Sensors, and External Relays".
Accessories (included): Extension Bolt × 1, Strap × 1, 8-pin terminal block × 1, 10-pin terminal block ×
1, Telephone Line Cord × 2, Terminal Box × 1

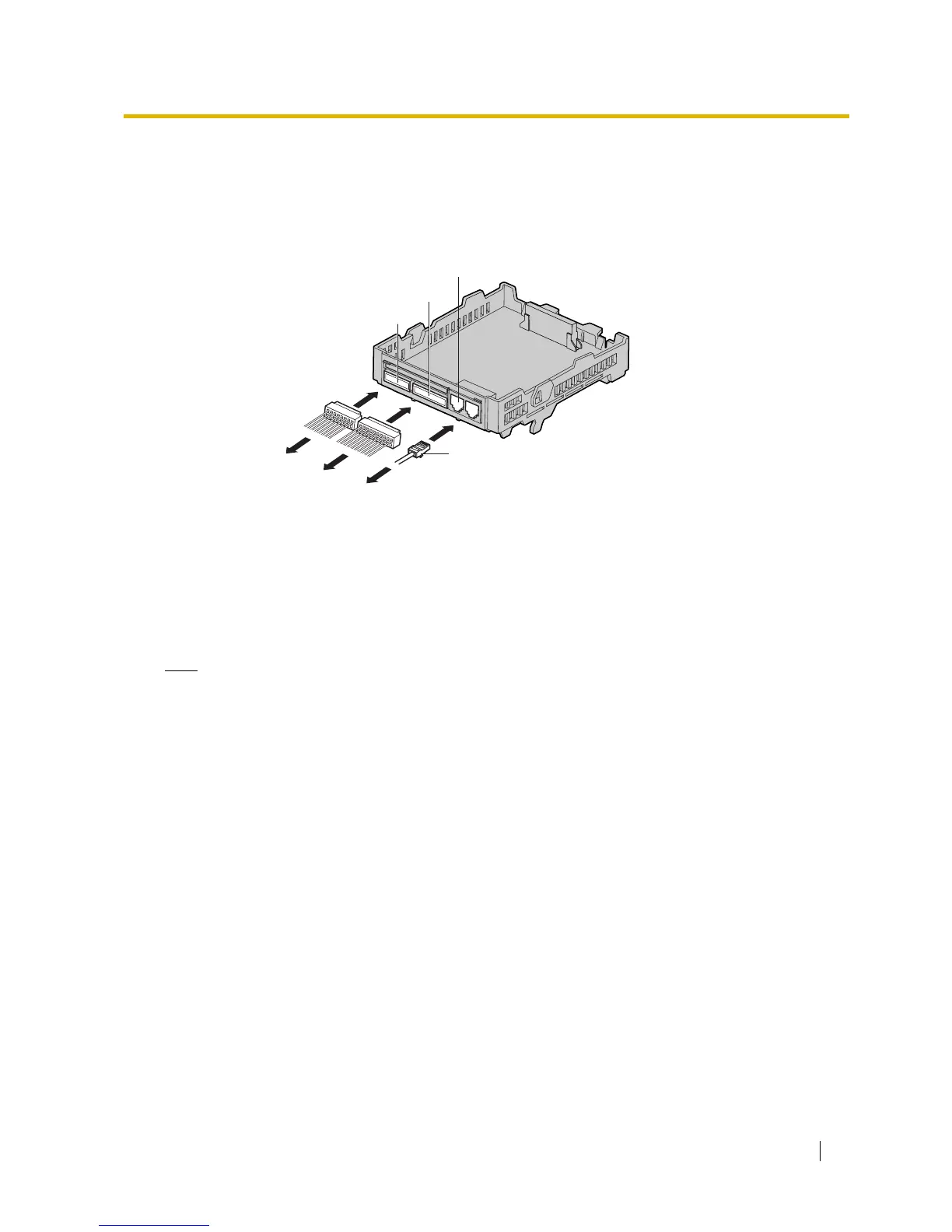

To doorphones/
door openers
8-pin
10-pin
RJ45
Telephone Line Cord
To external sensors
To external relays
