2.5 Information about the Other Cards
2.5.1 DPH4 Card (KX-TDA3161)
Function
4-port doorphone card for 4 doorphones, 4 door openers or external relays, and 4 external sensors.
Accessories and User-supplied Items
User-supplied (not included): Copper wire
Notice
The connector type may be RJ45 or RJ11 depending on the country/area.
Shown above is a card having the RJ45 connectors.
Note
For details about connection to doorphones, door openers, external sensors, and external relays, refer
to "2.8.1 Connection of Doorphones, Door Openers, External Sensors, and External Relays".
Accessories (included): Extension Bolt × 1, Strap × 1, 8-pin terminal block × 1, 10-pin terminal block ×
1, Telephone Line Cord × 2, Terminal Box × 1 (for DPH4 card with RJ45
connectors) or 2 (for DPH4 card with RJ11 connectors)

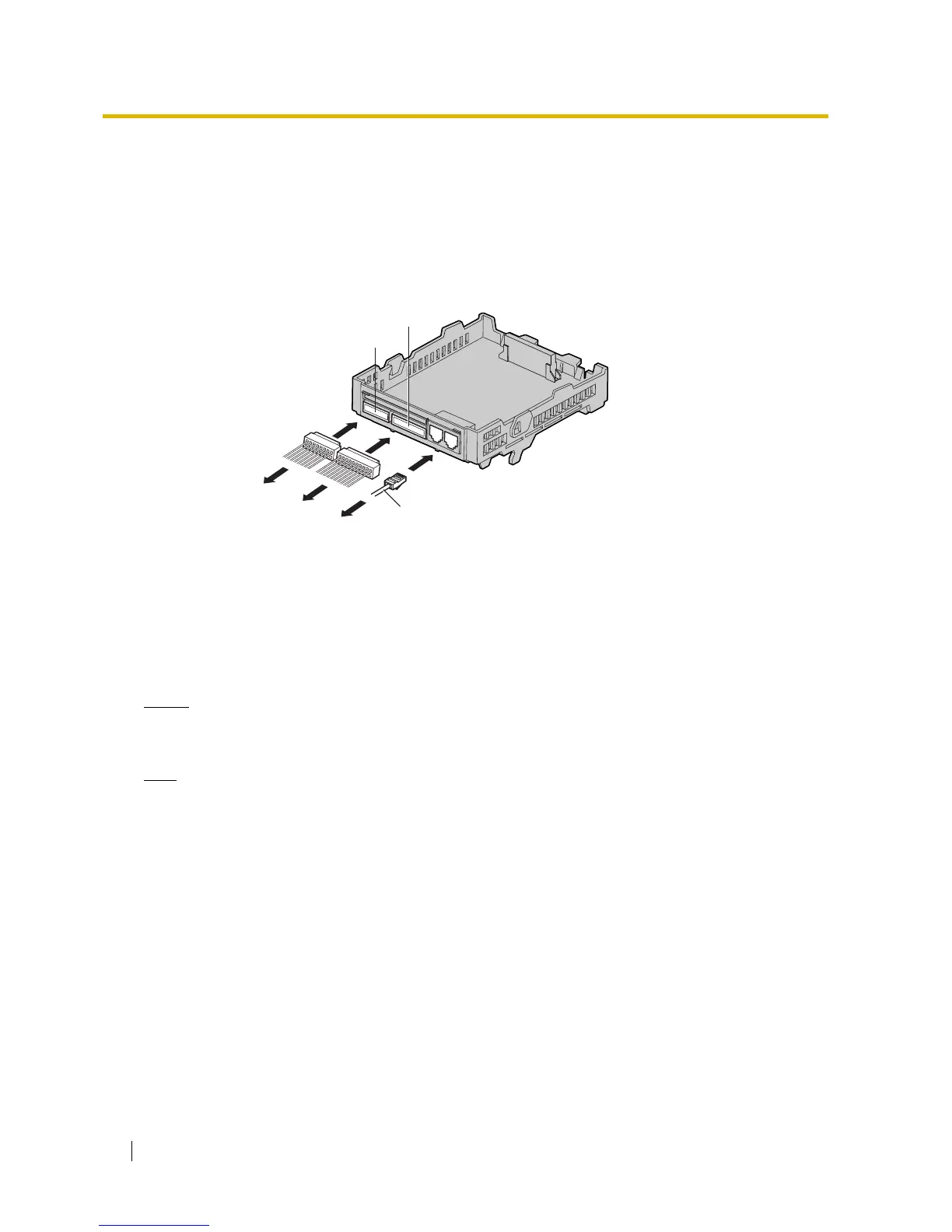

To doorphones
To door openers/
external relays
Telephone Line Cord
8-pin
10-pin
To external sensors
