2.2.9 Wall Mounting (KX-TDA15)
Mounting on Wooden Wall

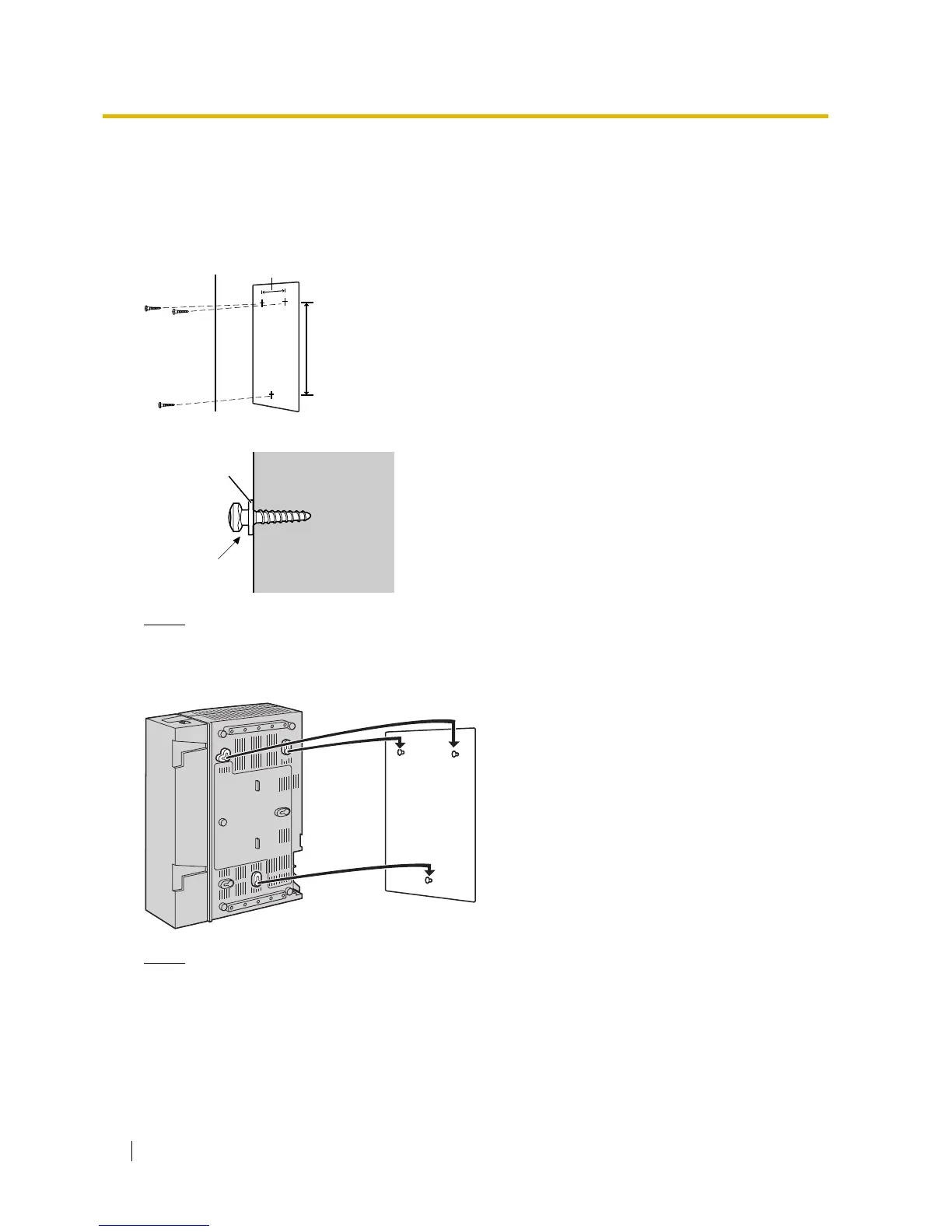

1. Place the reference for wall mounting (on the last page of this manual) on the wall to mark the 3 screw
positions.
2. Install the screws and washers (included) in the wall.
Notes
• Make sure that the screw heads are at the same distance from the wall.
• Install the screws perpendicular to the wall.
3. Hook the main unit on the screw heads.
Notes
• Do not block the openings of the cabinet. Leave at least 20 cm of space above and 10 cm to the
sides of the Hybrid IP-PBX for ventilation.
• Make sure that the surface behind the cabinet is flat and free of obstacles, so that the openings on
the back of the cabinet will not be blocked.
• Be careful not to drop the cabinet.
250 mm
130 mm
Washer
Drive the screw
to this position.
