Panasonic KX-TDA15

2.7 Connection of DECT Portable Stations
112 Installation Manual

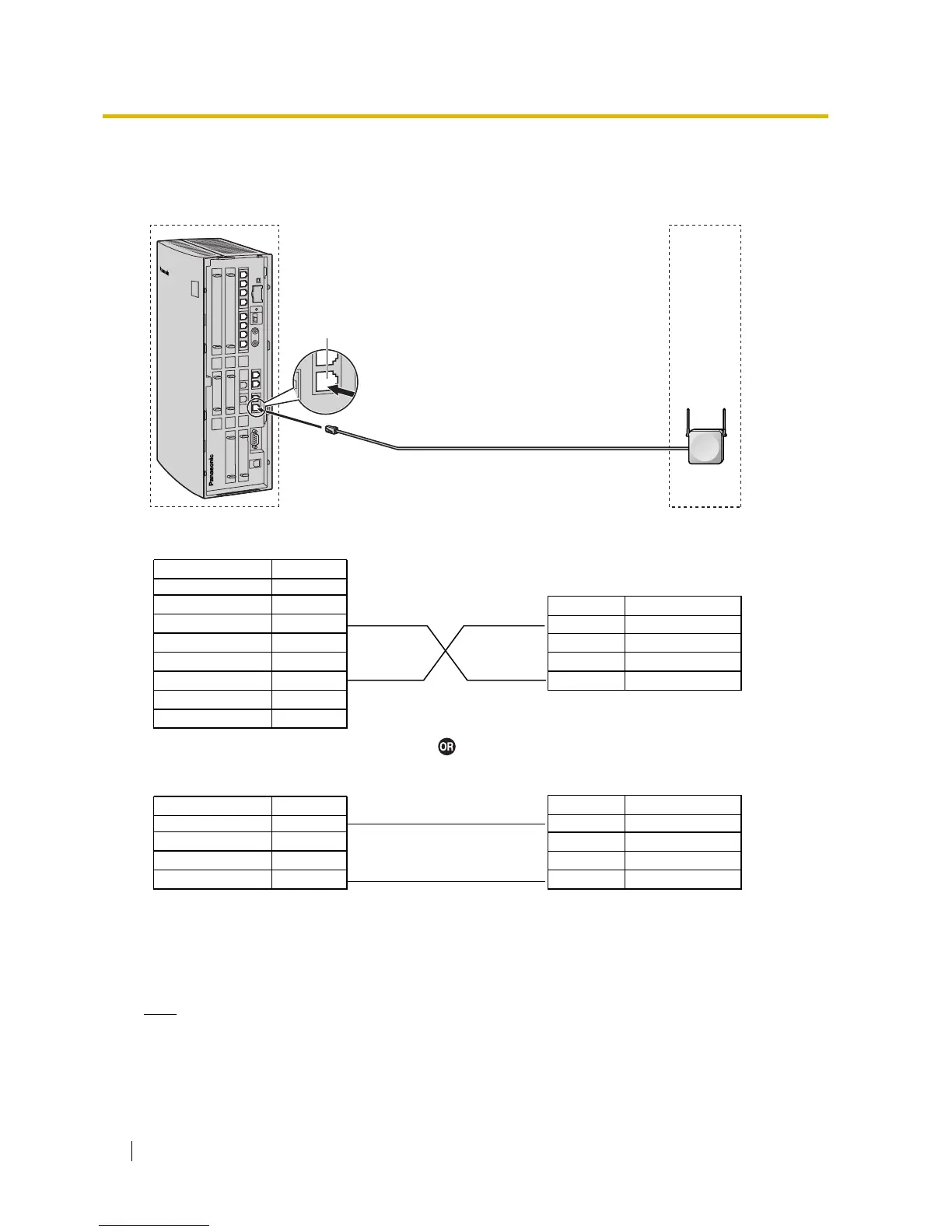

2.7.7 Connecting a Cell Station to the Hybrid IP-PBX
Refer to the following example to connect a CS to the Hybrid IP-PBX.
Accessories and User-supplied Items for the CS
Accessories (included): Screws × 2, Washers × 2
User-supplied (not included): RJ45 connector or RJ11 connector
Note
For details about DLC8 card, refer to "2.4.1 DLC8 Card (KX-TDA3172)".
Signal Name
Signal Name
Pin No.
1
2
3
4
D1
D2
D2
Pin No.
1
2
3
4
D1
5
6
7
8
A Super Hybrid Port
or DLC8 card (RJ45)
CS (RJ11)
Cable Maximum Distance
ø 0.4 mm: 222 m
ø 0.5 mm: 347 m
ø 0.6 mm: 500 m
CAT 5: 347 m
Super Hybrid Port
Signal Name
Signal Name
Pin No.
1
2
3
4
D1
D2
D1
D2
Pin No.
1
2
3
4
A Super Hybrid Port,
or DLC8 card (RJ11)
CS (RJ11)
