Panasonic KX-TDA15

2.4 Information about the Extension Cards
Installation Manual 73

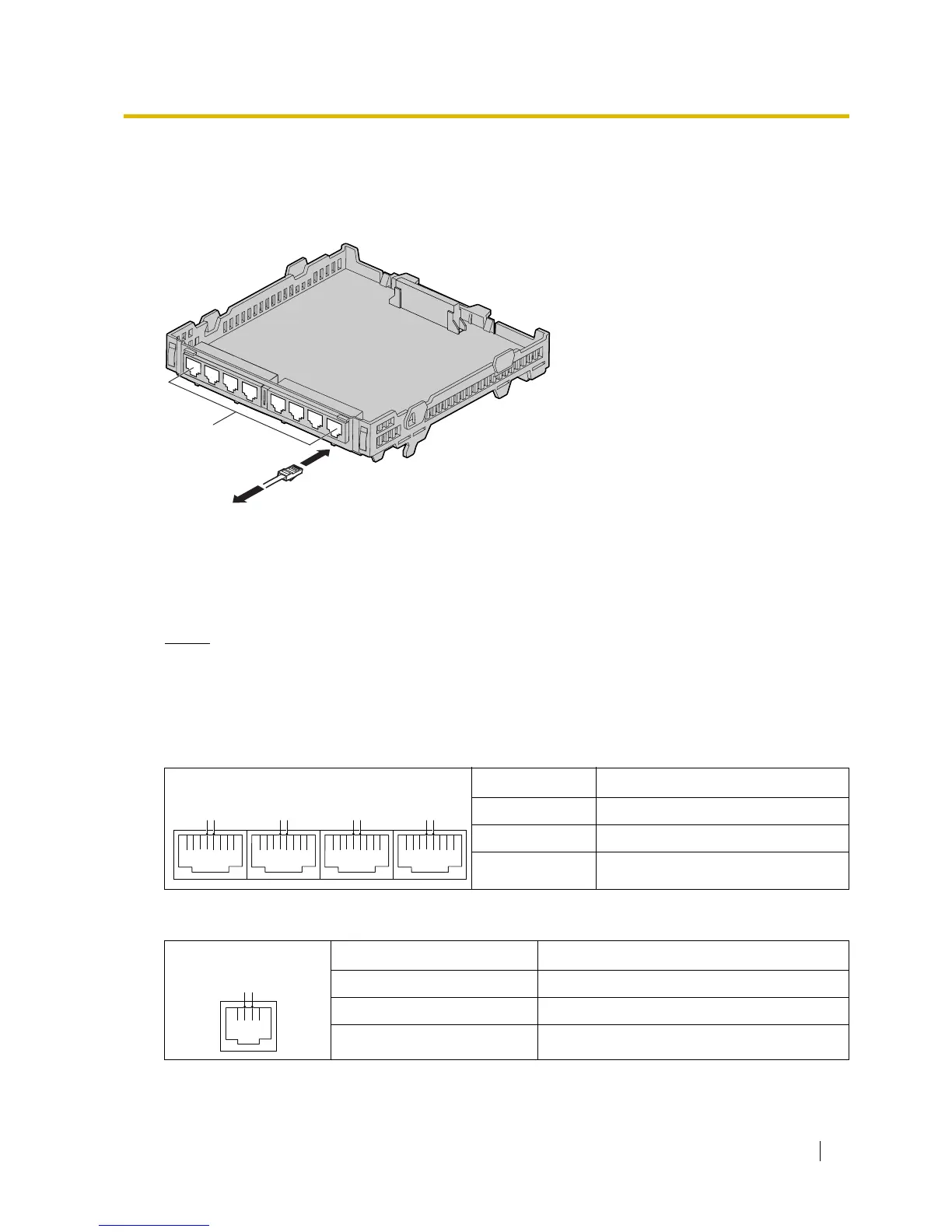

2.4.2 SLC8 Card (KX-TDA3174)
Function
8-port extension card for SLTs.
Accessories and User-supplied Items
Accessories (included): Extension Bolt ×1, Strap × 1
User-supplied (not included): RJ45 connector or RJ11 connector
Notice
The connector type may be RJ45 or RJ11 depending on the country/area.
Pin Assignments
RJ45 Connector
RJ11 Connector
Signal Name Function
TTip
RRing
– Reserved
Signal Name Function
TTip
RRing
– Reserved
To extension
RJ45
9 161 8
R T R T
25 3217 24
R T R T
4 1
R T
